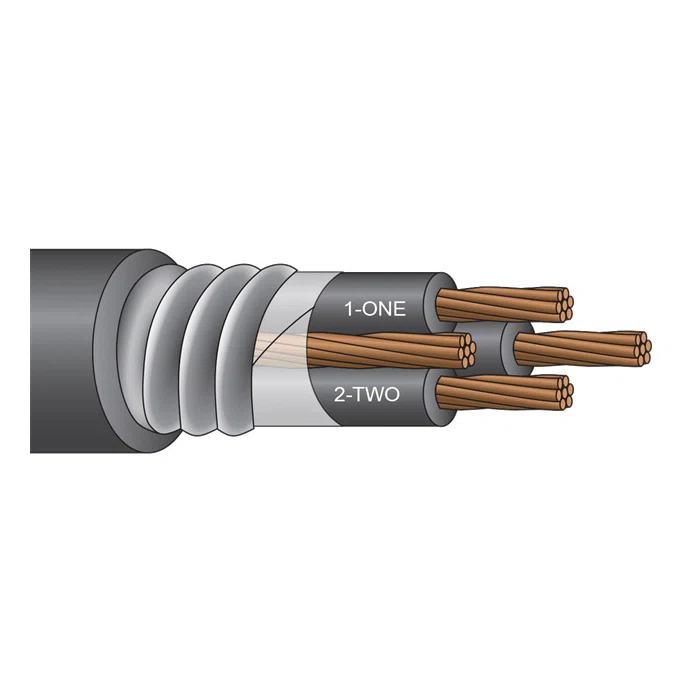

AAP4/03 Type XHHW-2 Jacketed MC Armored Cable, 600 V, (3) 4/0 AWG Stranded Copper Conductor
- MFR:
- Service Wire
- MFR #:
- AAP4/03
- UPC:
- 662870012219
- Item #:
- 1288707
AAP4/03 Type XHHW-2 Jacketed MC Armored Cable, 600 V, (3) 4/0 AWG Stranded Copper Conductor
- MFR #:
- AAP4/03
- UPC:
- 662870012219
- Item #:
- 1288707
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Three copper conductors, stranded and insulated with heat and moisture resistant, chemically crosslinked polyethylene (type XHHW-2), phase identified and cabled together with suitable fillers (when necessary) and bare copper ground conductor. Cable core covered with mylar binder tape and aluminum or galvanized steel interlocked armor with overall black PVC jacket. Jacket available in colors.
Manuals and Documentation
| Manufacturer Part Number | AAP4/03 |
| Brand | Service Wire |
| Manufacturer | Service Wire |
| UPC | 662870012219 |
| Country Of Origin | US |
| Amperage Rating | 260 A |
| Conductor Size | 4/0 AWG |
| Conductor Type | Stranded Copper |
| Insulation Material | Polyethylene |
| Jacket Color | Black |
| Jacket Material | PVC |
| Number Of Conductors | 3 |
| Outside Diameter | 1-3/4 in |
| Strands | 19 |
| Temperature Rating | 90 deg C |
| Type | Type XHHW-2 Jacketed MC |
| Voltage Rating | 600 V |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 1 year Limited |
| Standards Approvals | IEEE 383 | ICEA T-29-520 | IEEE 1202/CSA FT-4 | ICEA S-95-658 | REACH Compliant | RoHS Compliant | UL 1569 |
| Application | For Class I/II -Div 2 hazardous locations |
