Appleton

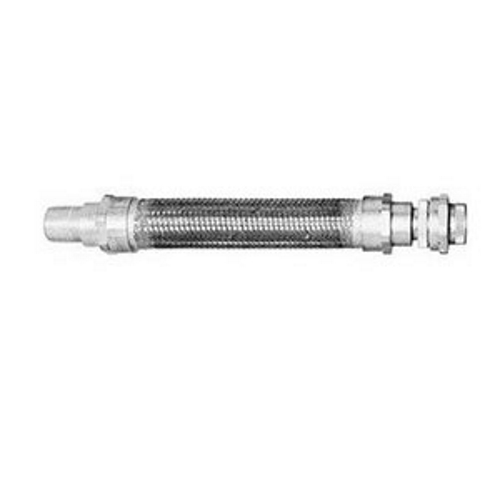

Flexible Coupling, 1/2 x 36 inch, Male x Union, Bronze Braid Outer/Brass Inner

MFR:
Appleton Electric
MFR #:
EXLK-136
UPC:
781381327909
Item #:
128745

Availability

Location Available Qty
Available Available to Order
$1,074.92 each

UNILETS Flexible Coupling, Trade Size: 1/2 IN, Outside Diameter: 1.41 IN, Flex Length: 36, Bending Radius 10 IN, Flexibility: Rigid And IMC, Material: Outer Bronze Braid And Inner Brass Core With Insulating Liner, End Type (1) Male Nipple, (1) Union, Finish: Natural, Flex Length: 36 IN, Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified, Class I, Division 1 And 2 And Class II, Division 1 And 2, Suitable For Class I, Groups A, B, C, D, Class II, Groups E, F, G, Class III, For Use With Threaded Rigid Metal Conduit And IMC

Manuals and Documentation
Catalog Number EXLK-136
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Rigid Metal Conduit And IMC
Connection Female Threaded
Flexibility Rigid And IMC
Material Outer Bronze Braid And Inner Brass Core With Insulating Liner
Special Features Explosionproof, dust-ignitionproof, watertight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Heavy duty design resists mechanical abuse; Electrical conductivity equal to rigid conduit on a similar length basis no bonding jumper required; Interior insulating liner protects conductors from abrasion under vibrating conditions; Female end fitting with removable ductile iron union at one end and a female end fitting with a removable brass male nipple at the other end; Used in areas where vibration and movement is a problem, also used in place of rigid conduit in difficult-bend situations
Standard UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified, Class I, Division 1 And 2 And Class II, Division 1 And 2, Suitable For Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III
UPC 781381327909
GTIN 00781381327909
Item Type Flexible Coupling
Length 40.12
Length UOM Inch
Outside Diameter 1.41 IN
Trade Size 1/2 IN
