DPF14-250FIB-M DiscoGrip Type DPF-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
- MFR:
- Panduit
- MFR #:
- DPF14-250FIB-M
- UPC:
- 074983203963
- Item #:
- 1287316
DPF14-250FIB-M DiscoGrip Type DPF-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
- MFR #:
- DPF14-250FIB-M
- UPC:
- 074983203963
- Item #:
- 1287316
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$0.4441
each

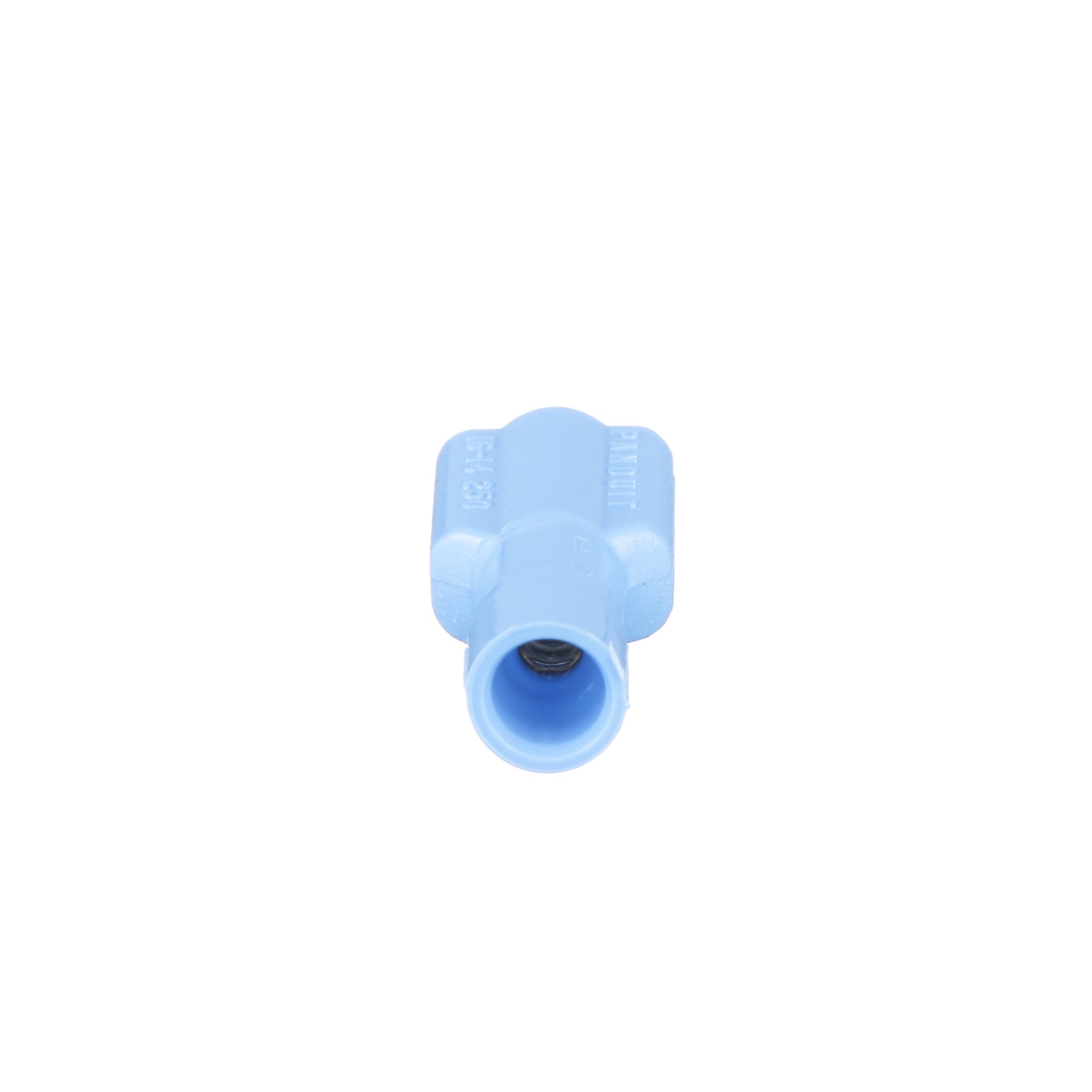

The vibration resistant DiscoGrip female disconnect is made of brass and is tin-plated. It is fully insulated in blue premium nylon housing. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm). It is 0.84 (21.3 mm) long and 0.33 (8.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
Manuals and Documentation
| Catalog Number | DPF14-250FIB-M |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Funnel Entry |
| Finish | Tin-Plated |
| Insulation | Premium Nylon |
| Material | Brass |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983203963 |
| GTIN | 00074983203963 |
| Item Type | Disconnect |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #14 AWG |
