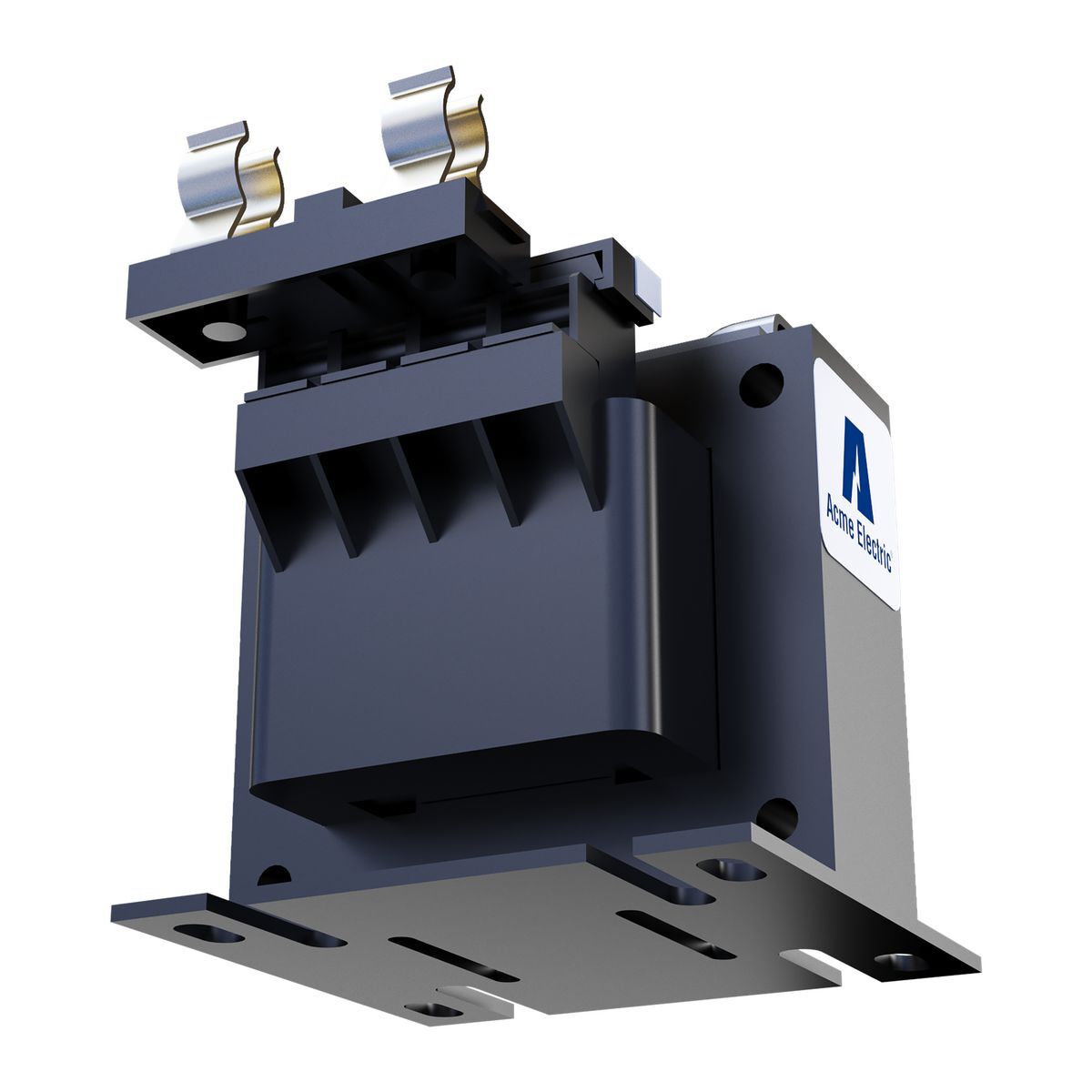

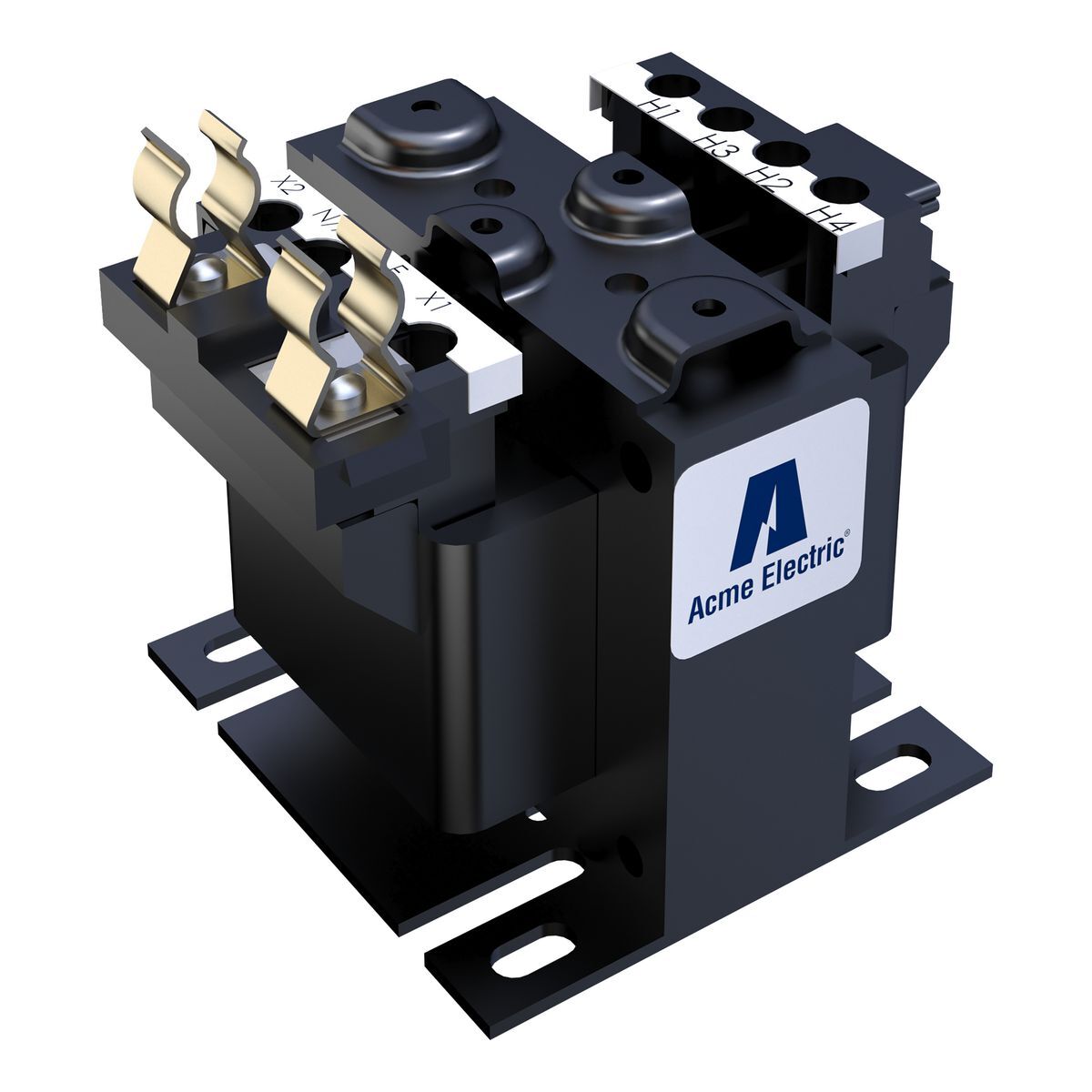

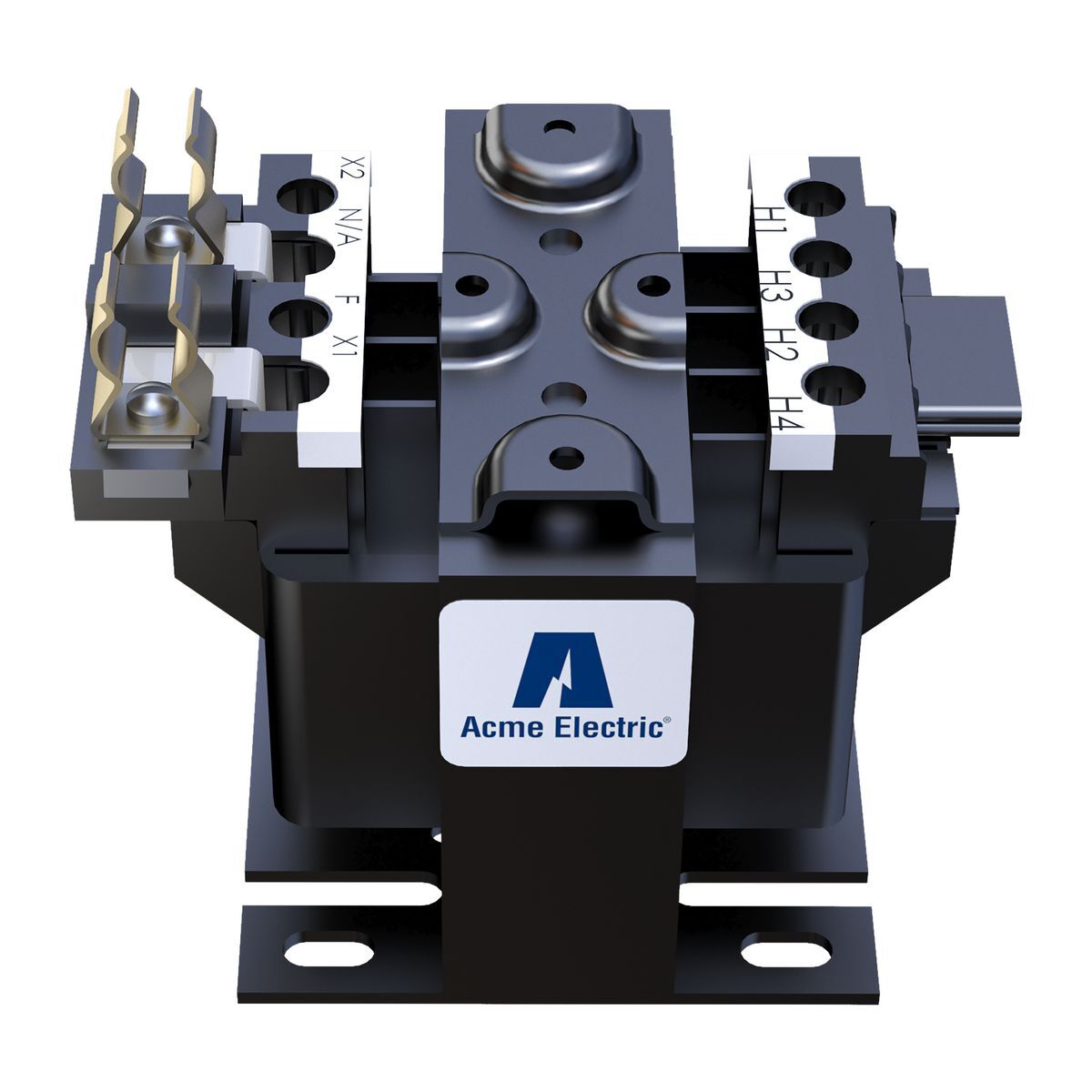

CE3000N007 CE Encapsulated Industrial Control Transformer, 208/500/220/380/440/550/230/400/460/575/240/416/480/600 V AC Primary, 85/100/110/91/120/95/115/125/99/120/130 VAC Secondary, 3000 VA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- Acme Electric, a Hubbell affiliate
- MFR #:
- CE3000N007
- UPC:
- 047503014967
- Item #:
- 1286265
CE3000N007 CE Encapsulated Industrial Control Transformer, 208/500/220/380/440/550/230/400/460/575/240/416/480/600 V AC Primary, 85/100/110/91/120/95/115/125/99/120/130 VAC Secondary, 3000 VA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- CE3000N007
- UPC:
- 047503014967
- Item #:
- 1286265
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$4,788.47
each
Manuals and Documentation
| Catalog Number | CE3000N007 |
| Manufacturer | Acme Electric, a Hubbell affiliate |
| Brand | ACME ELECTRIC |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Frequency Rating | 50/60 HZ |
| Primary Voltage | 208/500, 220/380/440/550, 230/400/460/575, 240/416/480/600 V |
| Secondary Voltage | 85/100/110,91/110/120,95/115/125,99/120/130 V |
| Standard | UL Listed;cUL Listed |
| UPC | 047503014967 |
| GTIN | 00047503014967 |
| Length | 12.25 |
| Length UOM | Inch |
| Width | 12.25 |
| Width UOM | Inch |
| Height | 11 |
| Height UOM | Inch |
