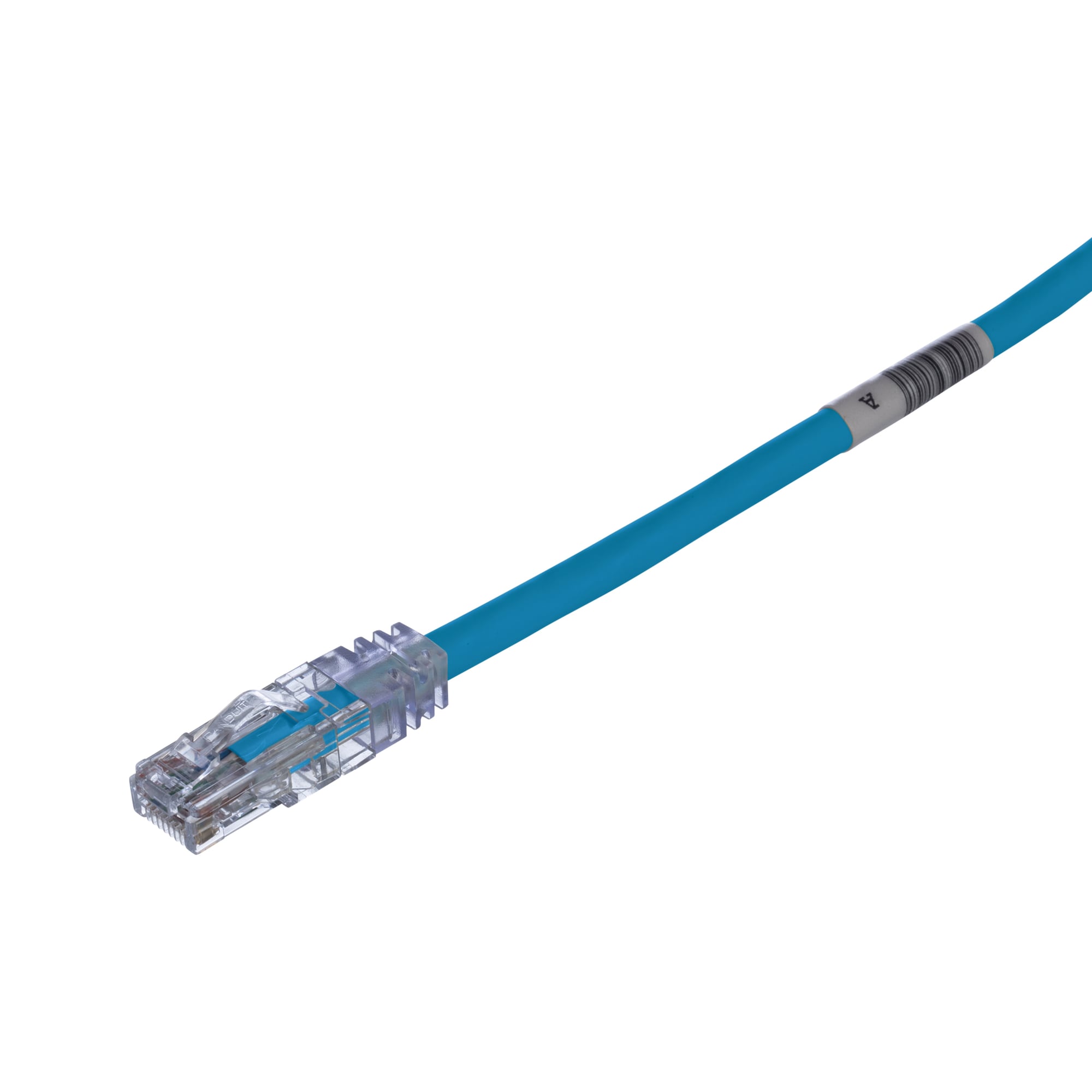

The TX6 PLUS Cat 6 UTP Patch Cord is a 7-Foot, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals and Documentation
- Catalog Number
- UTPSP7BUY
- Manufacturer
- Panduit
- Brand
- Panduit
- Country of Origin
- Multiple
- Made in USA
- No
- Application
- (1) Ethernet 10BASE-T(2) 100BASE-T (Fast Ethernet)(3) 1000BASE-T (Gigabit Ethernet)(4) 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(5) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(6) Token ring 4/16(7)
- Color
- Blue
- Conductor Material
- Copper
- Jacket Material
- Polyvinyl Chloride
- Plug Type
- Modular Plug
- Special Features
- NULL
- Standard
- Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E standards; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863 approved; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; CE Compliant; RoHS Compliant
- UPC
- 074983171293
- GTIN
- 00074983171293
- Item Type
- Patch Cord
- Length
- 7.00
- Outside Diameter
- 0.23 IN
- Temperature Rating
- 140 °F
- Wire Size
- 24
