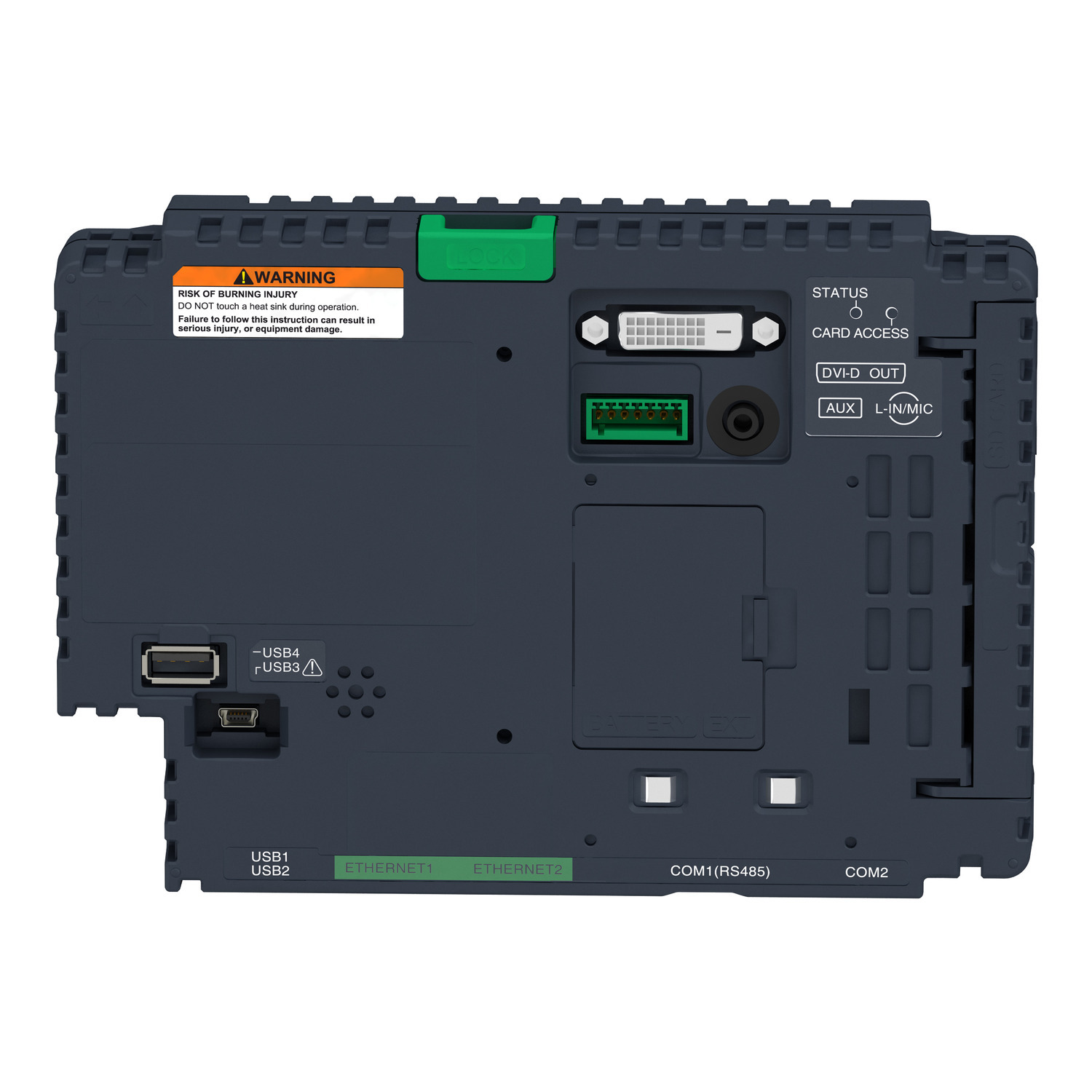

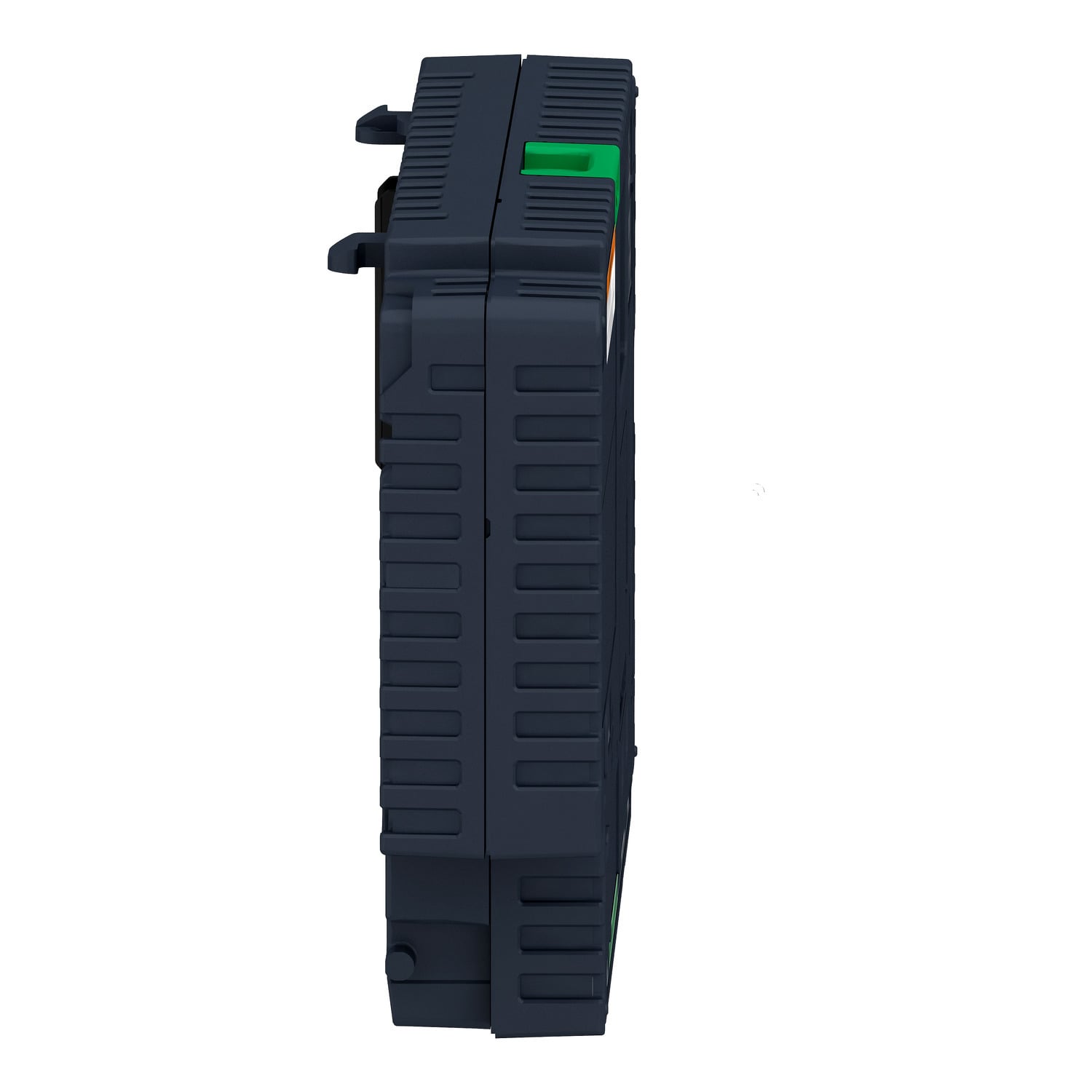

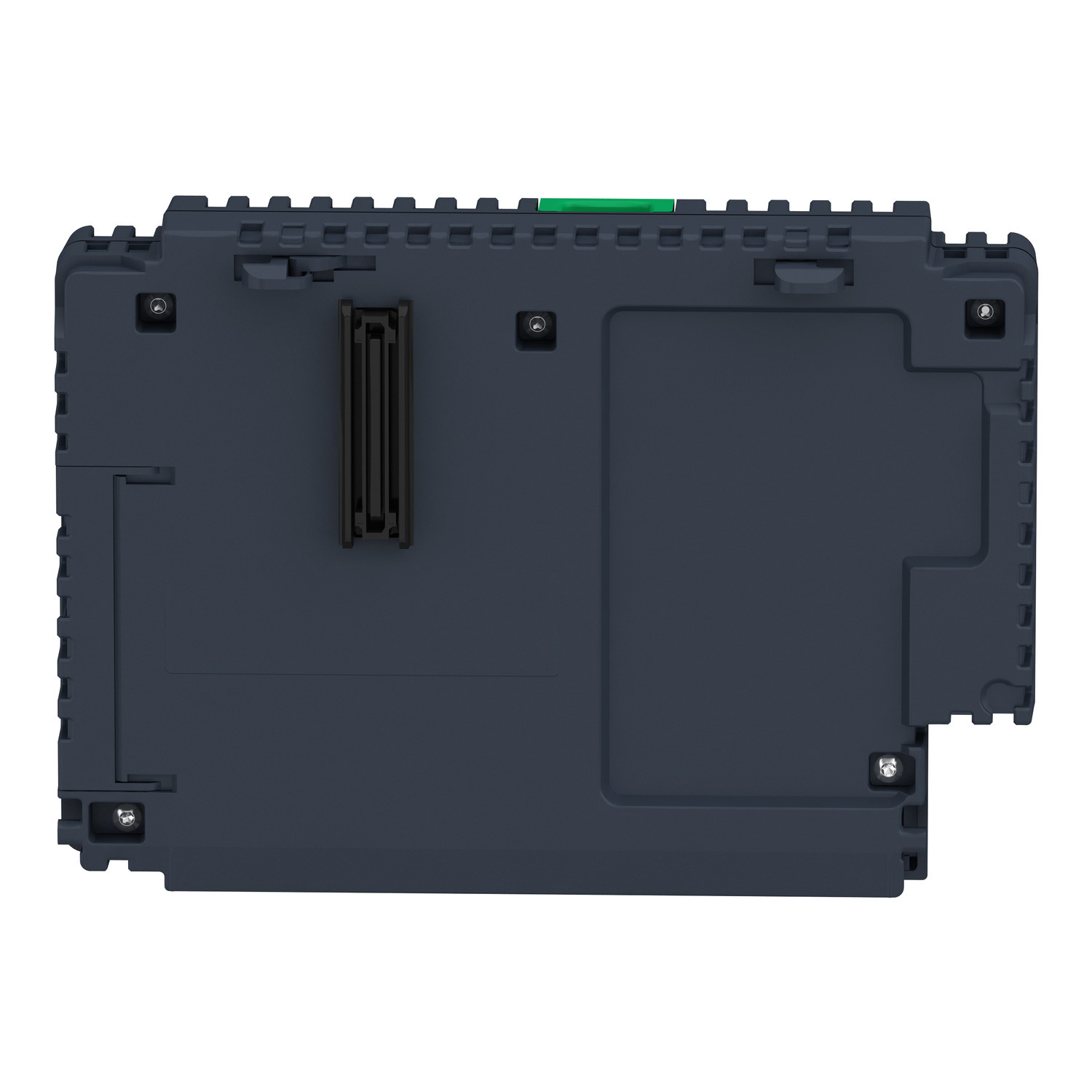

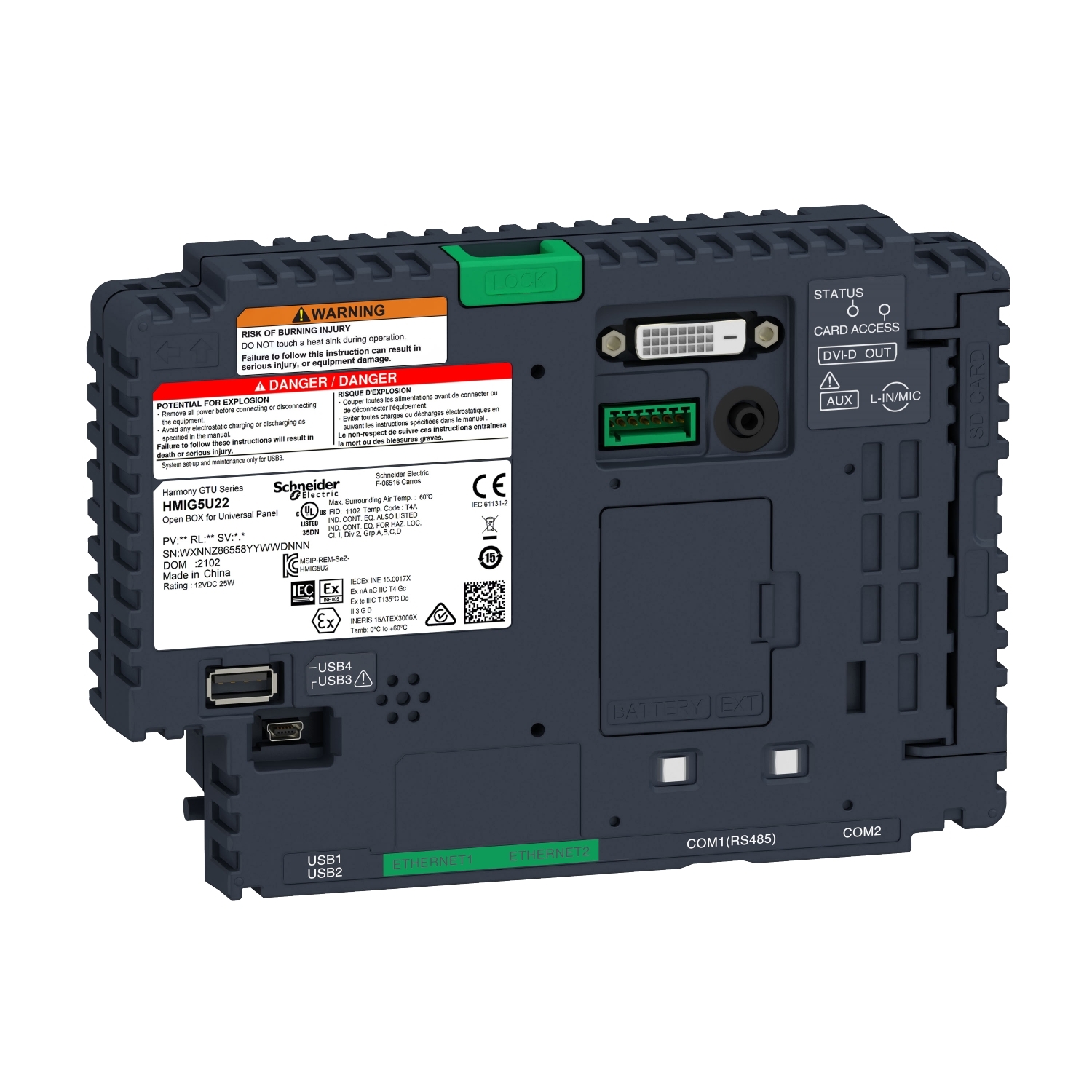

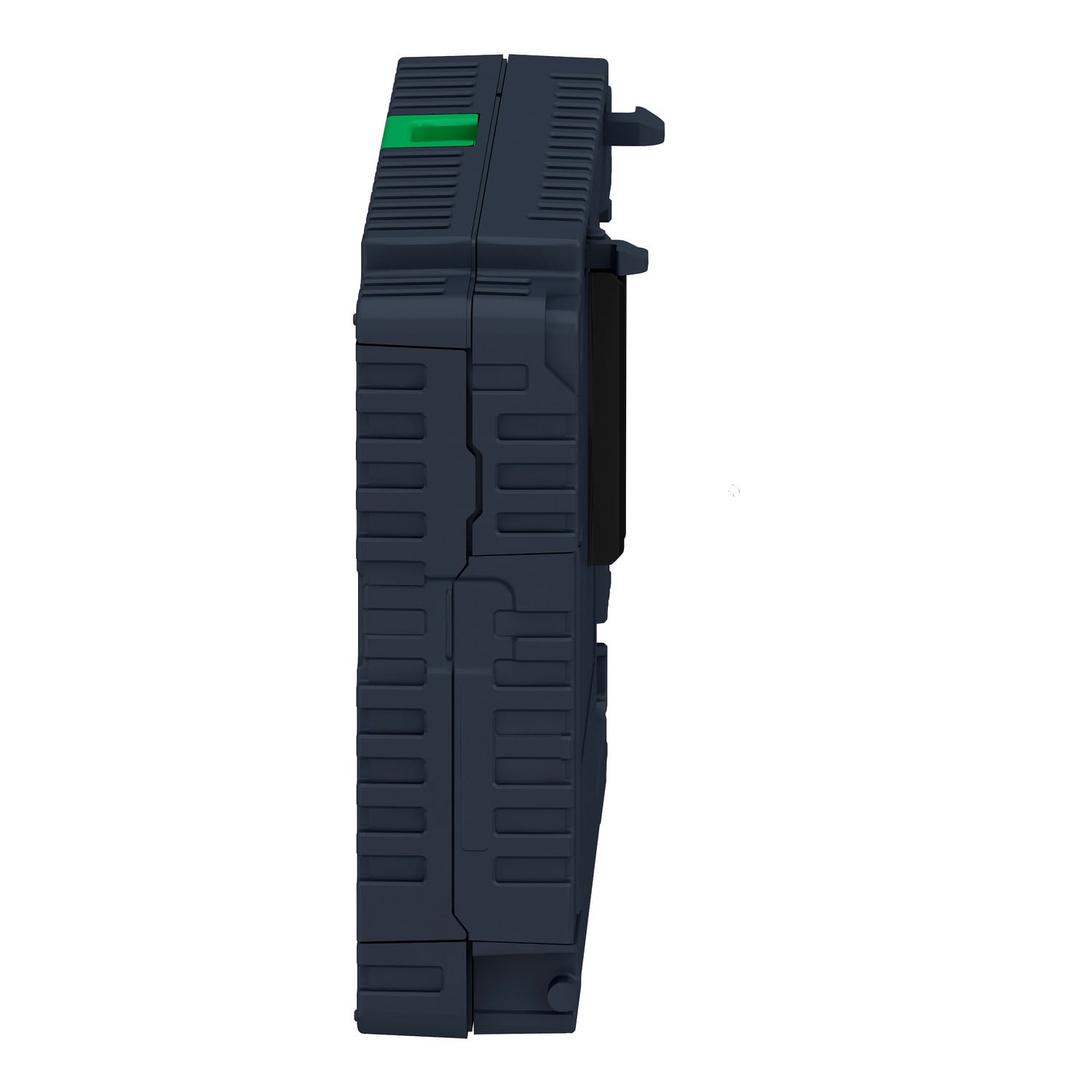

HMIG5U22 Base Unit, For Use With Windows 10, Intel X86 1.33GHz processor/32GB CFast Card Data Storage

MFR:
Schneider Electric
MFR #:
HMIG5U22
Item #:
1285653

Availability

Location Available Qty
Available Available to Order
$3,211.95 each

This product is part of the Pro-face SP5000 range, an offer of High performance IoT-ready modular HMI panels from 7 inch to 19 inch (Width) screen. The open box features Intel X86 1.33GHz processor and 32GB CFast card data storage, suits for universal panel. It is designed with backup memory of NVRAM 512kB and internal memory of RAM 4GB. This open box supports Windows 10 IoT Enterprise 2019 LTSC 32bit operating system. It is equipped with 10BASE-T/100BASE-TX/1000BASE-T Ethernet port. Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway. Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg. This product is not installed with HMI software. This product is certified by ATEX, IECEx, Ex CCC, CE, CULus, IEC, CUL, DNV-GL, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards. As a flagship model, SP5000 series, ""

Manuals and Documentation
Catalog Number HMIG5U22
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin Indonesia
