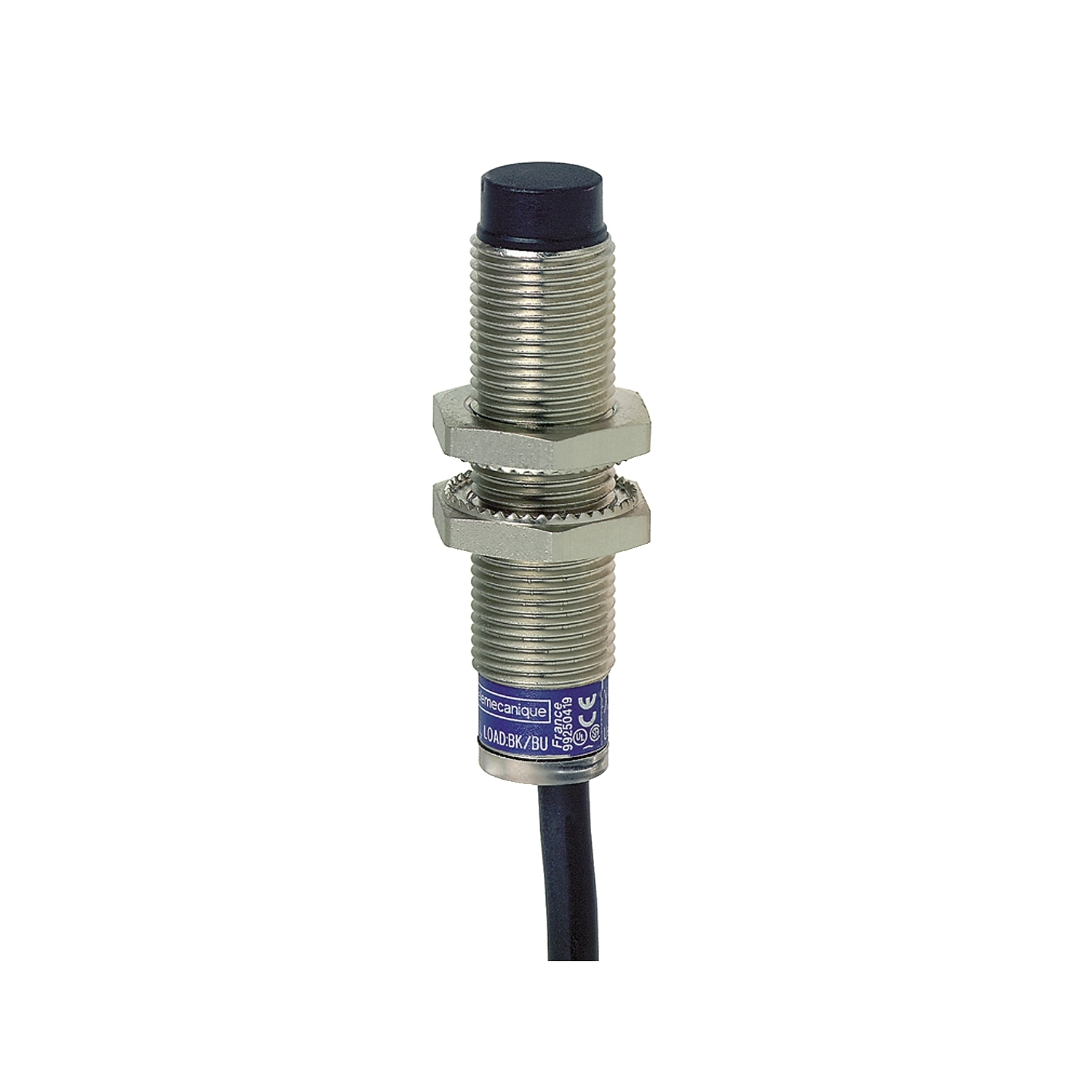

inductive sensor XS2 M12, L55mm, brass, Sn4mm, 12..24VDC, cable 2m
MFR: Telemecanique Sensors
MFR #: XS2M12KP340
UPC: 785901903970
Item #: 12826
inductive sensor XS2 M12, L55mm, brass, Sn4mm, 12..24VDC, cable 2m
MFR #: XS2M12KP340
UPC: 785901903970
Item #: 12826
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$156.68
each
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a nickel plated brass case and a 2m long cable. It has a sensing distance of 2mm. Four-wire, DC supply, 12V to 24V, solid state PNP + NPN, NO/NC programmable output.
Manuals and Documentation
- Catalog Number
- XS2M12KP340
- Manufacturer
- Telemecanique Sensors
- Brand
- Telemecanique
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- France
- Made in USA
- No
- Application
- OXISENSE XS
- Connector
- Cable
- Control Output
- 1 NO OR 1 NC PROGRAMMABLE
- Enclosure
- Nickel Plated Brass
- Indicator
- Output state 1 LED yellow)
- Material
- Metal
- Mounting
- Flush
- Sensing Range
- > 0.1...0.16 IN (> 2.5...4 MM)
- Sensor
- XS 2
- Special Features
- IP68 DOUBLE INSULATION CONFORMING TO IEC 60529,CABLE
- Standard
- IP68 double insulation conforming to IEC 60529;CE
- Supply Voltage
- 12...24 V DC reverse polarity protection
- UPC
- 785901903970
- GTIN
- 03389110515053
- Item Type
- Inductive proximity sensor;Cylindrical M12
- Operating Temperature
- -25...70 Degrees C
