Hubbell Wiring Device - Kellems

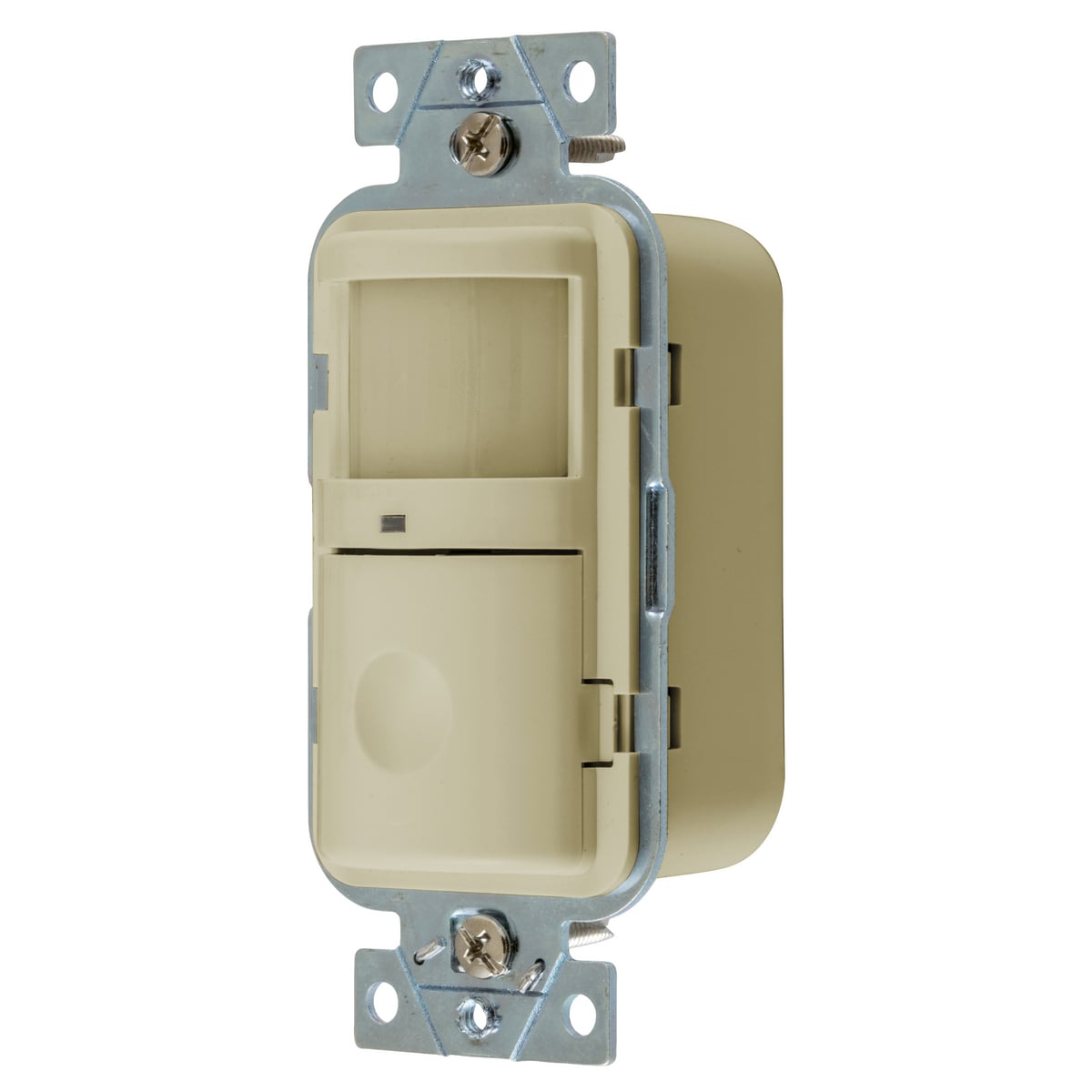

WS1000I 1-Circuit Adjustable Occupancy Sensor Switch, 120 V AC, Passive Infrared Sensor, 1000 sq-ft Coverage

MFR:
Hubbell Wiring Device-Kellems
MFR #:
WS1000I
UPC:
783585256214
Item #:
128248

Availability

Location Available Qty
Available Available to Order
$82.87 each

Standard Passive Infrared Technology requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy. Excellent for small room control.

Manuals and Documentation
Catalog Number WS1000I
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Taiwan, Province Of China
Made in USA No
Application Compatible with most LED and CFL
Color Ivory
Connector Terminal Screws
Mounting Screw
Sensing Range 1000 Square Feet
Sensitivity Adjustable
Sensor Passive Infrared
Special Features Standard Product
Standard cULus Listed To UL773A
Supply Voltage 120 AC
UPC 783585256214
GTIN 00783585256214
Item Type Manual/Auto
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Operating Temperature 32 Degrees F to 122 Degrees F (0 Degrees C to 50 Degrees C) with rate of change not exceeding 20 Degrees F(11 Degrees C) per hour
Cross Reference Products IPS02-1LI
