IPL350-3 Polaris IPL Single Sided Entry Insulated Multi-Tap Connector, 6 AWG to 350 kcmil Aluminum/Copper Conductor, Plastisol
- MFR:
- NSi Industries
- MFR #:
- IPL350-3
- UPC:
- 662381914019
- Item #:
- 128079
IPL350-3 Polaris IPL Single Sided Entry Insulated Multi-Tap Connector, 6 AWG to 350 kcmil Aluminum/Copper Conductor, Plastisol
- MFR #:
- IPL350-3
- UPC:
- 662381914019
- Item #:
- 128079
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$118.93
each

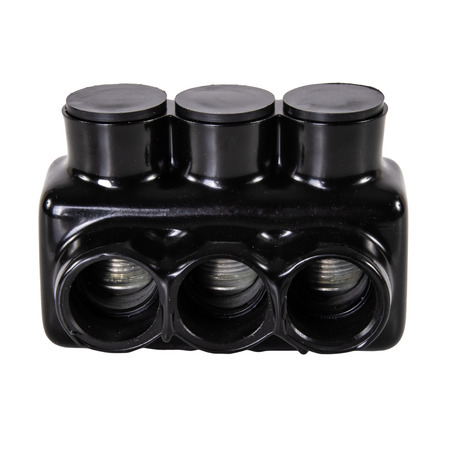

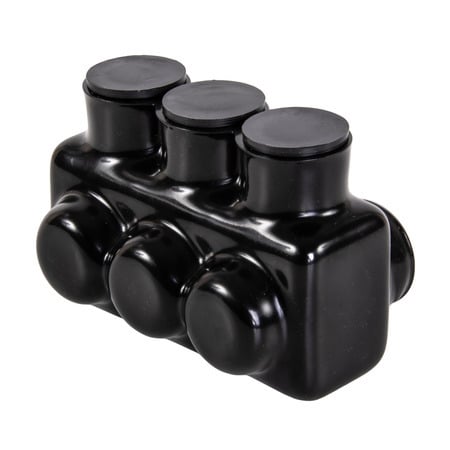

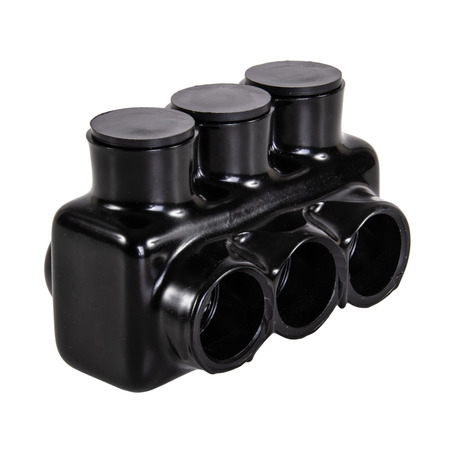

The Polaris IPL350-3 Multi-Tap Single Side Entry Connector features 3 ports sized for 350 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Manuals and Documentation
| Catalog Number | IPL350-3 |
| Manufacturer | NSi Industries |
| Brand | Polaris |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Color | Black |
| Finish | Plastisol Insulated |
| Material | Aluminum |
| Number of Conductors | 3 |
| Number of Poles | 1 |
| Special Features | (3) 350 MCM-6 AWG - Dual Rated |
| Standard | UL 486A/B |
| UPC | 662381914019 |
| GTIN | 00662381914019 |
| Item Type | Single Sided Entry |
| Size | L=3.470 - W=2.130 - H=2.460 |
| Environmental Conditions | 90 C |
| Temperature Rating | 90 C |
| Voltage Rating | 600 V |
| Wire Size | 350 MCM-6 AWG |
