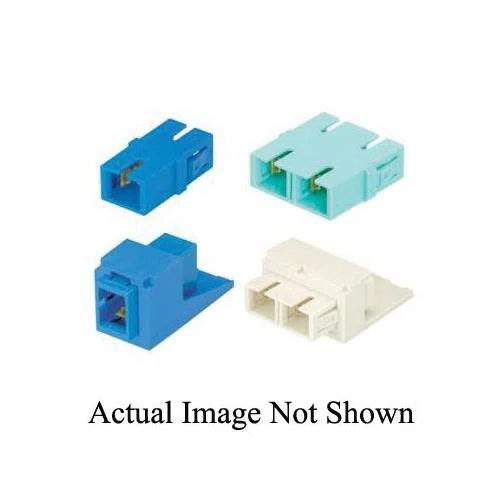

CMDEISCZEI Mini-Com Fiber Optic Adapter Module With Adapter, Zirconia Ceramic Split Sleeve, SC Duplex Connector
- MFR:
- Panduit
- MFR #:
- CMDEISCZEI
- UPC:
- 074983845248
- Item #:
- 1280787
CMDEISCZEI Mini-Com Fiber Optic Adapter Module With Adapter, Zirconia Ceramic Split Sleeve, SC Duplex Connector
- MFR #:
- CMDEISCZEI
- UPC:
- 074983845248
- Item #:
- 1280787
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$35.56
each
SC fiber optic adapters with integrated panel retention clips are TIA/EIA-604 FOCIS-3 compliant. Each SC simplex adapter shall connect one SC connector pair in one Mini-Com® space. Each SC duplex adapter shall connect two SC connector pairs in two Mini-Com® spaces. SC adapters and adapter Mini-Com® shall include phosphor bronze split sleeves for multi-mode applications or zirconia ceramic split sleeves for singlemode applications.
Manuals and Documentation
Features
- Integrated panel retention clips no metal clips to become bent, damaged or lost, clips automatically adjust for FOCIS-3 compliant panel thickness variations for improved mounting
- High glass transition temperature latch material maintains latch integrity/geometry in high temperature environments for improved reliability
- Improved adapter protective cap design maximum protection from contamination, protective cap fully surrounds split sleeve opening
- Short flange design improved modularity and higher density usage
- Q.C. number and split sleeve material laser marked on every adapter assures 100% traceability, quick and easy identification of split sleeve material
- Adapter housing colors follow TIA/EIA-568-C.3 suggested color identification scheme
- Improved protective cap fully surrounds split sleeve opening
- Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements, zirconia ceramic split sleeves are recommended for OM3/OM4 multi-mode and OS1/OS2 singlemode applications
- Every adapter is laser marked with QC number to assure 100% traceability
- Integrated panel retention clips
- Improved adapter protective cap design
- Short flange design
- QC number and split sleeve material laser marked on every adapter
| Manufacturer Part Number | CMDEISCZEI |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 074983845248 |
| Country Of Origin | US |
| Color | Electric Ivory |
| Connector Type | SC Duplex |
| Material | Plastic |
| Suitable For Use With | Mini-Com® Modular Patch Panels, Faceplates, Surface Mount Boxes |
| Alternative Part Number | 7475400 | 8908741 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | TIA/EIA-604 FOCIS-3 | TIA/EIA-568-B.3 | TIA/EIA-568-C.3 |
| Application | For LANs, public networks, storage area networks and fiber to the desk applications |
| Fiber Type | 9/125 um OS1/OS2 Single Mode |
| Number Of Ports | 2 |
