SQUARE D

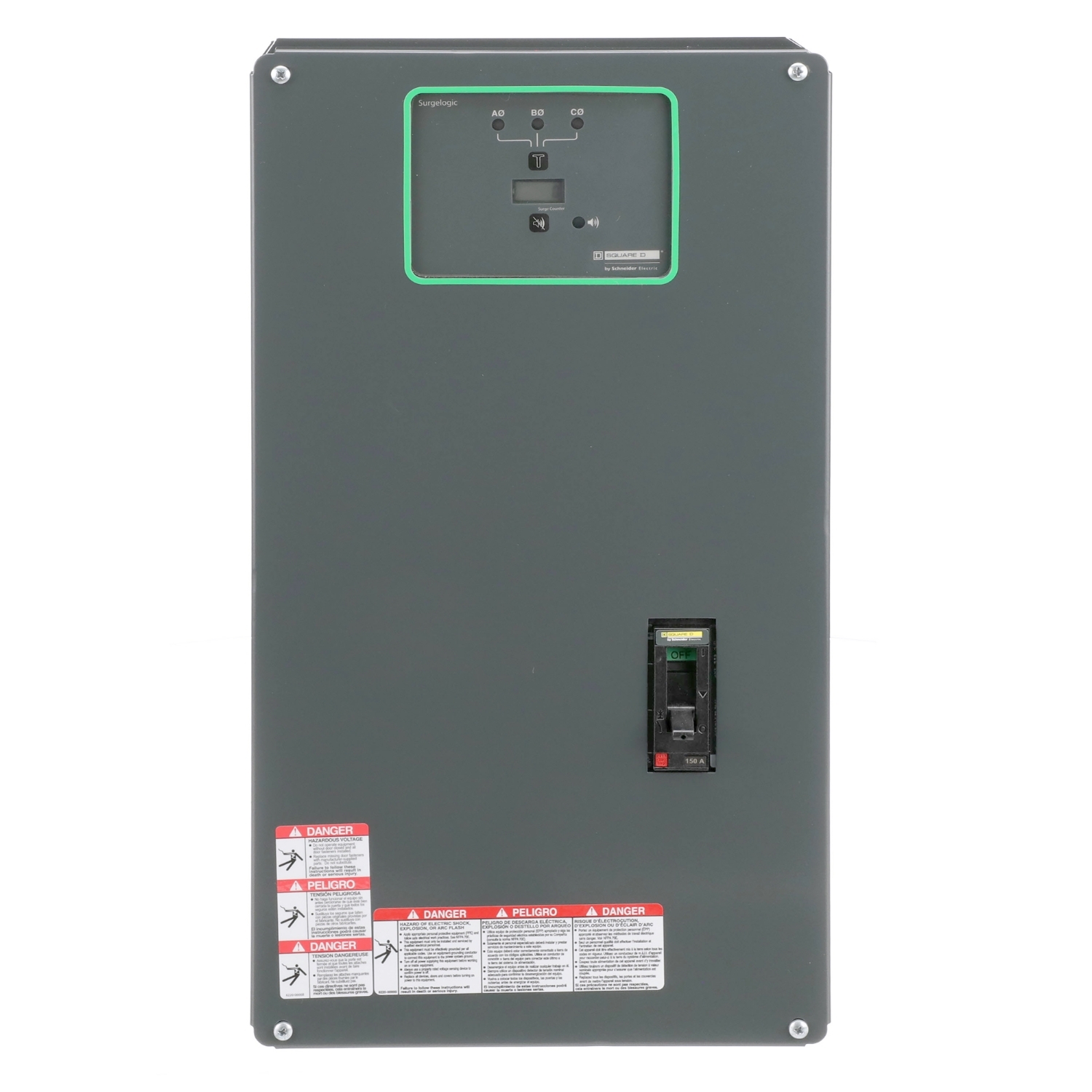

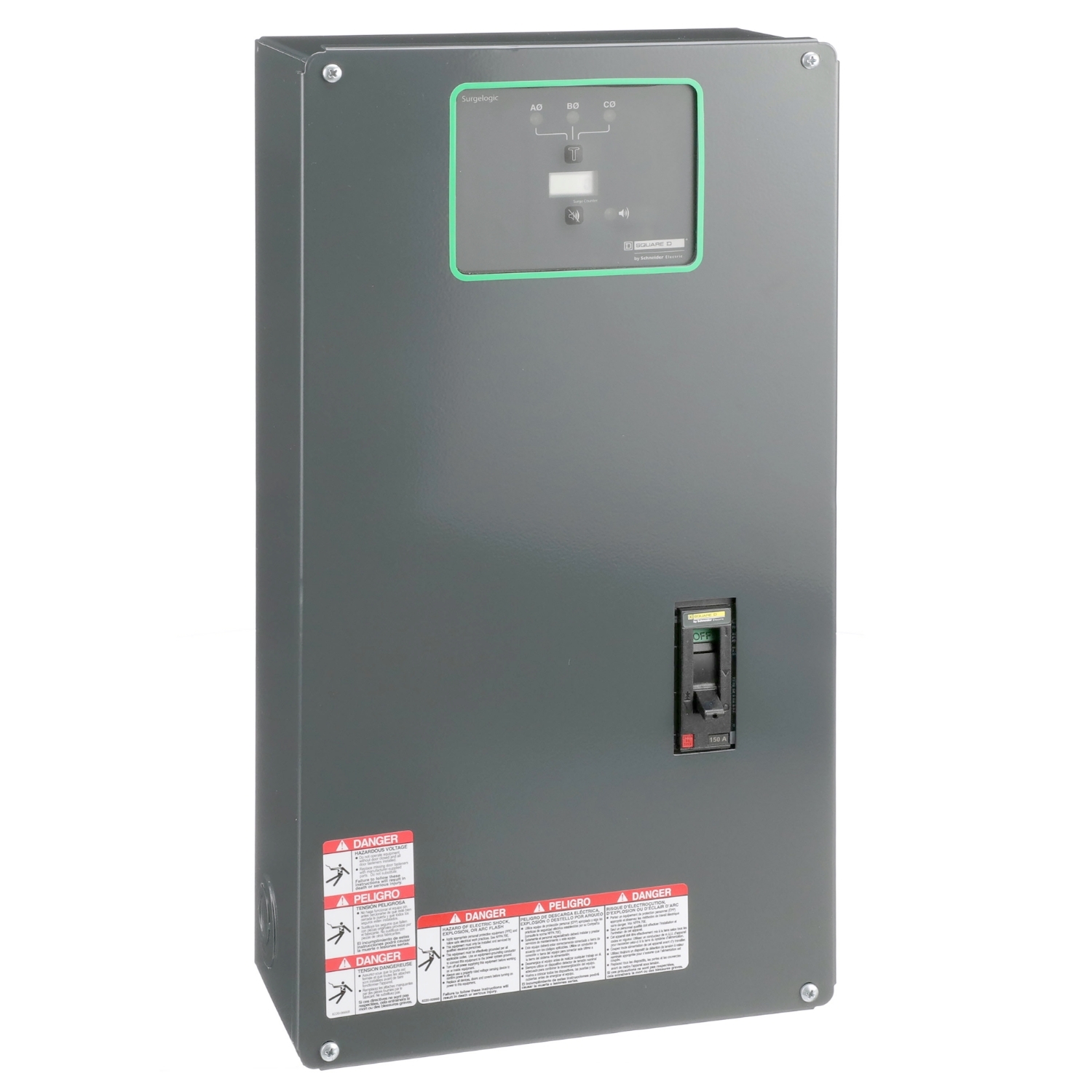

SSP02EMA32D Surgelogic EMA Surge Protective Device, 208Y/120 V AC, 3 Poles, 200 kA SCCR, 3 ph

MFR:
Schneider Electric
MFR #:
SSP02EMA32D
UPC:
785901075349
Item #:
1279248

Availability

Location Available Qty
Available Available to Order

Surgelogic Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration, enhanced EMI/RFI filtering with sine wave tracking in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. This surge protection device is 3 phase, 3-wire + ground, 208Y/120 V, 320 kA surge current per phase, and short circuit current rating of 200 kA. It has 10 year product warranty and 12 modes of protection.

Manuals and Documentation
Catalog Number SSP02EMA32D
Manufacturer Schneider Electric
Brand SQUARE D
Country of Origin Mexico
Made in USA No
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455794485&lang=en-us
UPC 785901075349
GTIN 00785901075349
