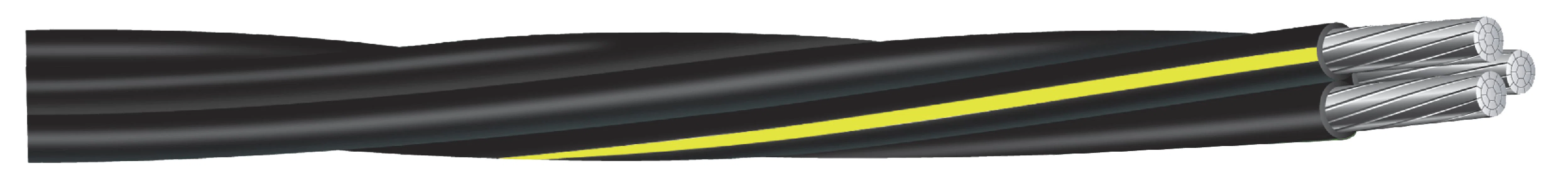

55417201 Stephens Triplex Secondary UD Cable With Yellow Extruded Stripe Neutral, 600 V AC, (3) 2 AWG Stranded Aluminum Conductor, 1000 ft L
- MFR:
- Southwire Company
- MFR #:
- 55417201
- UPC:
- 032886004544
- Item #:
- 127618
55417201 Stephens Triplex Secondary UD Cable With Yellow Extruded Stripe Neutral, 600 V AC, (3) 2 AWG Stranded Aluminum Conductor, 1000 ft L
- MFR #:
- 55417201
- UPC:
- 032886004544
- Item #:
- 127618
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2.394
each
Southwire® Secondary UD Cable, Triplex, Series: Stephens, 600 V AC, 165 A, 3 Conductors, Stranded Aluminum Conductor, 2 AWG Conductor, 870 mil OD, 1000 ft Length, 7 Strands, Cross Linked Polyethylene Insulation, Black Jacket, 90 deg C
Manuals and Documentation
Features
- Conductors are stranded, compressed 1350-H19, H16 or H26 aluminum, insulated with vulcanized interlinked polyethylene
- Two phase conductors and one neutral conductor are cabled together to produce the triplex cable configuration
- Conductors are durably surface printed for identification
| Manufacturer Part Number | 55417201 |
| Brand | Southwire® |
| Manufacturer | Southwire Company |
| UPC | 032886004544 |
| Country Of Origin | US |
| Amperage Rating | 165 A |
| Conductor Size | 2 AWG |
| Conductor Type | Stranded Aluminum |
| Insulation Material | Cross Linked Polyethylene |
| Jacket Color | Black |
| Length | 1000 ft |
| Number Of Conductors | 3 |
| Outside Diameter | 870 mil |
| Series | Stephens |
| Strands | 7 |
| Temperature Rating | 90 deg C |
| Type | Triplex |
| Voltage Rating | 600 V AC |
| Alternative Part Number | 8867940 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 1 Year |
| Standards Approvals | UL 854, ICEA S-105-692 | ARRA Compliant | Buy American Act Compliant |
| Application | For secondary distribution and underground service at 600 V or less, either direct burial or in ducts |
