Telemecanique

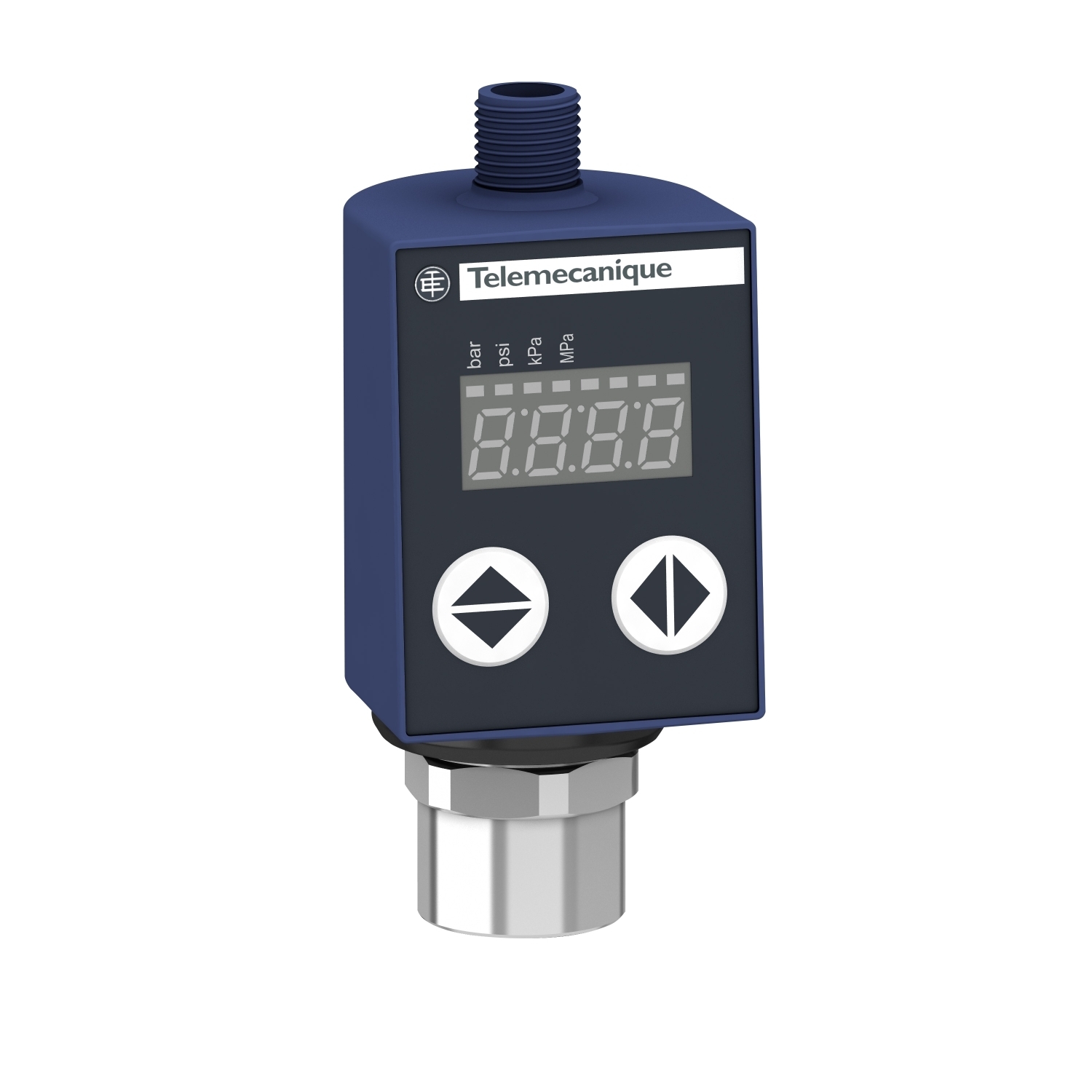

XMLRM01G0T25 XMLR Series Fixed Differential, Pressure Sensor sensing, 10 ms response, Analog Output, 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XMLRM01G0T25
Item #:
1273617

Availability

Location Available Qty
Available Available to Order
$983.54 each

This XMLR electronic pressure sensor has a 4 digit 7-segment display. This electronic pressure transmitter sensor with digital display is designed for accurate pressure measurement and display. It is fixed directly on tubage. It provides high corrosion resistance AISI 316L stainless steel and fluorocarbon resin pressure chamber for maximum longevity. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It has a supply voltage of 24V DC and an analog ouput of 4mA to 20mA. It provides IP65/IP67 degree of protection. It is ideal in moulding and thermoforming presses, injection machines, pneumatic systems and assembly machinery, hydraulic systems of lifting and handling equipment, pumping and fresh water treatment. It complies with EN/IEC 61326-2-3 and UL 61010-1.

Manuals and Documentation
Catalog Number XMLRM01G0T25
Manufacturer Telemecanique Sensors
Brand Telemecanique
Country of Origin France
Made in USA No
Accuracy <= 1 % of the measuring range;<= 0.6 % of the measuring range
Connection Male connector M12, 4 pins
Output Analogue;4...20 mA
Response Time <= 10 ms analog output
Standard Susceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3;immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6;surge immunity test 1 kV EN/IEC 61000-4-5;electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4;electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=347330783&lang=en-us
GTIN 03389119609791
Item Type Pressure transmitter;Electronic pressure sensors
Voltage Rating 24 V DC SELV 17-33 V)
