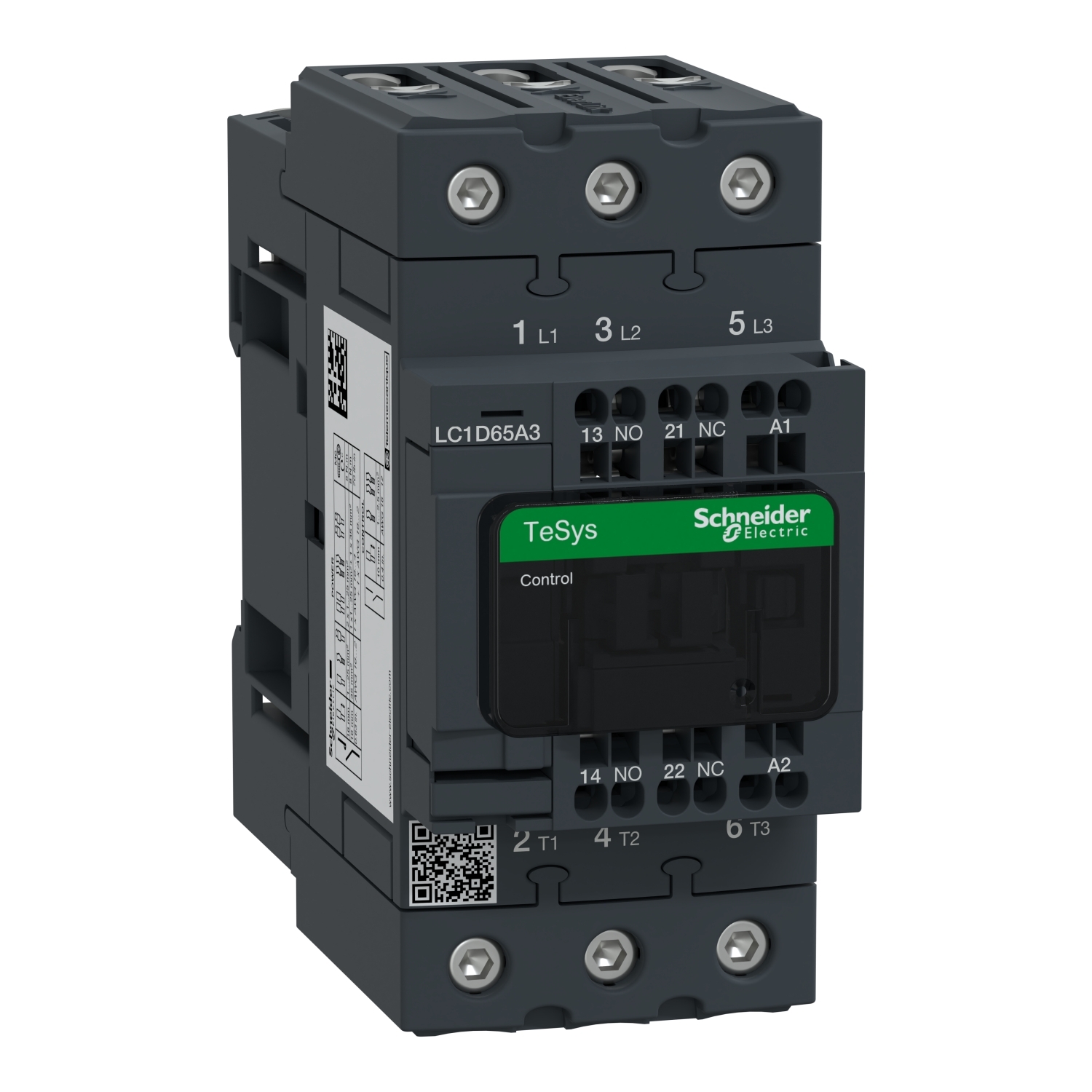

LC1D65A3FE7 Non-Reversing Contactor, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D65A3FE7
- Item #:
- 1272156
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 65A/440V AC-3/3e (30kW@400V). They can be used to create motor starters for almost any type of application. It provides a 115V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Contactor is rated for 20HP at 200 to 208VAC, 20HP at 240VAC, 40HP at 480VAC and 50HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor is supplied with a 115 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Spring terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.90 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D65A3FE7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Resistive load;motor control |
| Coil Voltage | 115 V AC 50/60 Hz |
| Connection | Control circuit: spring terminals 1 2.5-2.5 mm² - cable stiffness: flexible without cable end;control circuit: spring terminals 2 2.5-2.5 mm² - cable stiffness: flexible without cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid without cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid without cable end |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1472771&lang=en-us |
| GTIN | 03389118328273 |
| Item Type | Contactor |
