Appleton

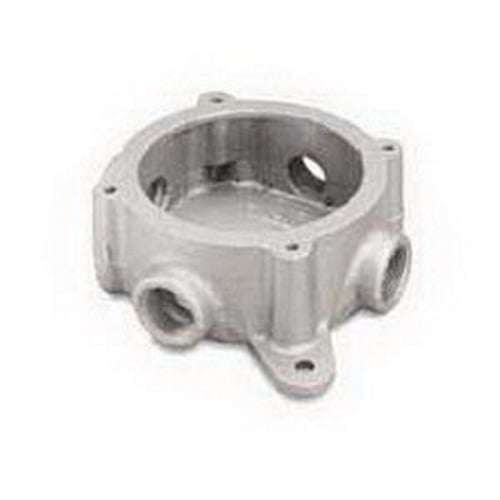

GSU100 Unilets GS Series Form 20 Conduit Outlet Box With Mounting Lugs, 1 in Hub, Malleable Iron, Triple Coated

MFR:
Appleton Electric
MFR #:
GSU100
UPC:
781381333085
Item #:
127157

Availability

Location Available Qty
Available Available to Order
$244.96 each

UNILETS GS Form 20 Universal Outlet Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 1 IN, Cable Entry: (4) 1 IN Hub, Mounting: Lugs, Knockouts: No, Width: 6.69 IN, Depth: 1-3/4 IN, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL 514 A, For Use With Threaded Metal Conduit And IMC

Manuals and Documentation

Features

  • Dimension: 6.690 Inch Length x 2.090 Inch Width x 1.750 Inch Depth
  • (4) 1 Inch threaded openings, (3) 1 Inch close-up plugs
Catalog Number GSU100
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit And IMC
Cable Entry (4) 1 IN Hub
Knockouts No
Material Malleable Iron
Mounting Lugs
Special Features Raintight when enclosed and gasketed with hub or blank covers; Extra wide mating surfaces of GS box and cover provide greater gasket contact for more positive seal; Universal design furnished with four 1 IN threaded openings and three 1 IN close-up plugs; Cushion fixture hangers are enclosed and gasketed; Serve as pulling fittings; Provides openings for splicing; Connect and change direction of conduit runs; When used with a gasket, GS junction boxes are weatherproof
Standard UL 514 A
RoHS Indicator Contact Manufacturer
UPC 781381333085
GTIN 00781381333085
Item Type GS Form 20 Universal Outlet Box
Length 5.2000
Length UOM Inch
Width 5.0000
Width UOM Inch
Height 3.0000
Height UOM Inch
Weight 4.300
Weight UOM Pounds
Size 1
