Telemecanique

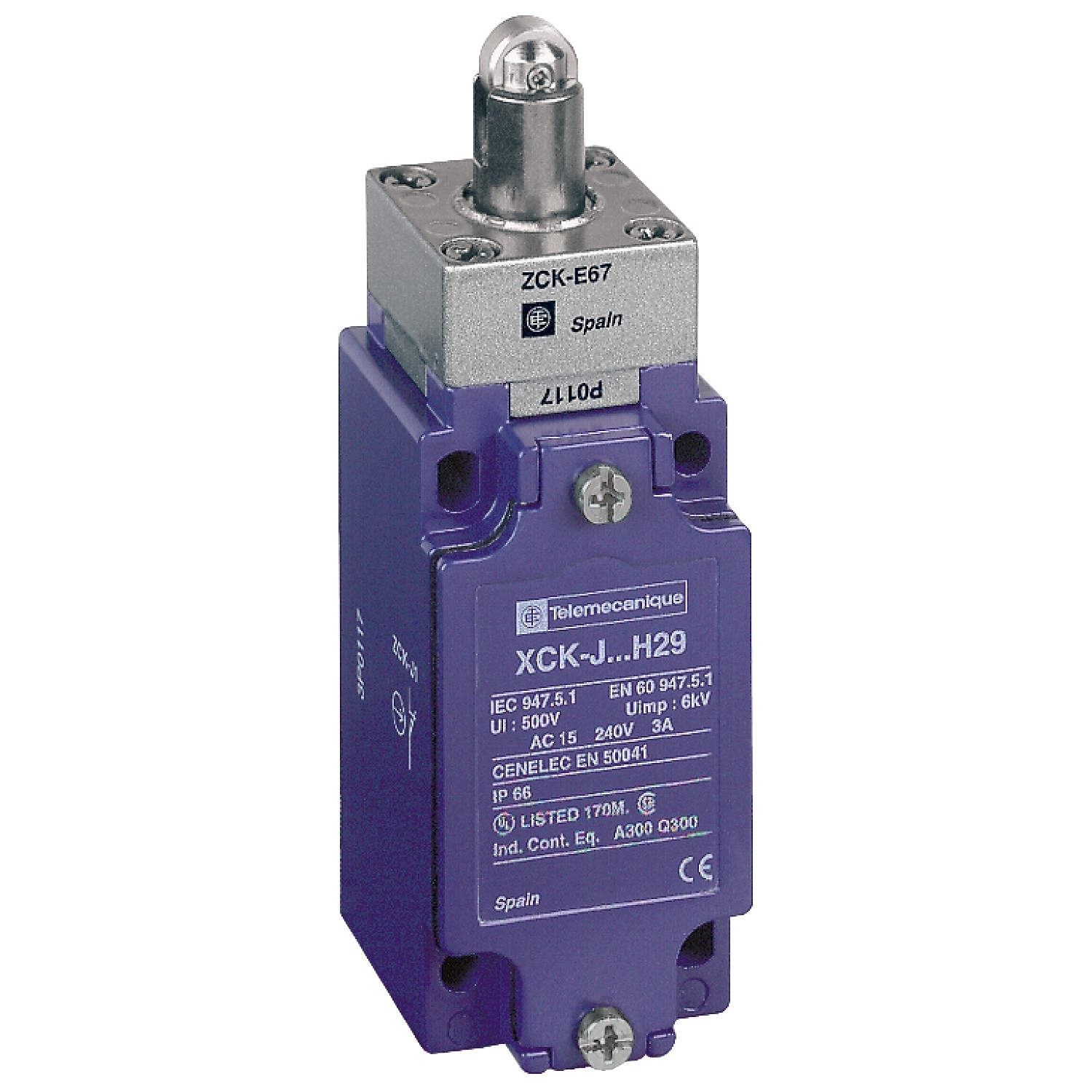

XCKJ567H7 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 10 A, Roller Plunger Spring Return Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKJ567H7
UPC:
785901885214
Item #:
1270675

Availability

Location Available Qty
Available Available to Order
$241.17 each

limit switch XCKJ - steel roller plunger reinforced - 1NC+1NO - slow - 1/2NPT

Manuals and Documentation
Catalog Number XCKJ567H7
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Lateral approach, 2 directions;Slow-break, break before make;By 30 Degrees cam
Actuator Spring return roller plunger metal reinforced
Amperage Rating 10
Application INDUSTRIAL
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 1 NC + 1 NO
Enclosure NEMA 1/2/4/12 IP 66
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,METAL
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA C22.2 NO 14-IEC 60204-1-CENELEC EN 50041-UL 508-EN 60947-5-1-IEC 60947-5-1-EN 60204-1,CSA-CCC-UL,IK07 EN 50102,IP66 IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856432&lang=en-us
UPC 785901885214
GTIN 03389110679120
Item Type Limit switch
Size 1.73
Operating Temperature -25-70 A Degrees C
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
