Telemecanique

ZCD21 OsiSense Fixed Limit Switch Body, 1NO-1NC Contact, For Use With XCKD and ZCD Series Standard Compact Limit Switch, 10 A at 240 V AC/DC Contact, NEMA 4X/IP66/67 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCD21
UPC:
785901290438
Item #:
126684

Availability

Location Available Qty
Available Available to Order
$48.80 each

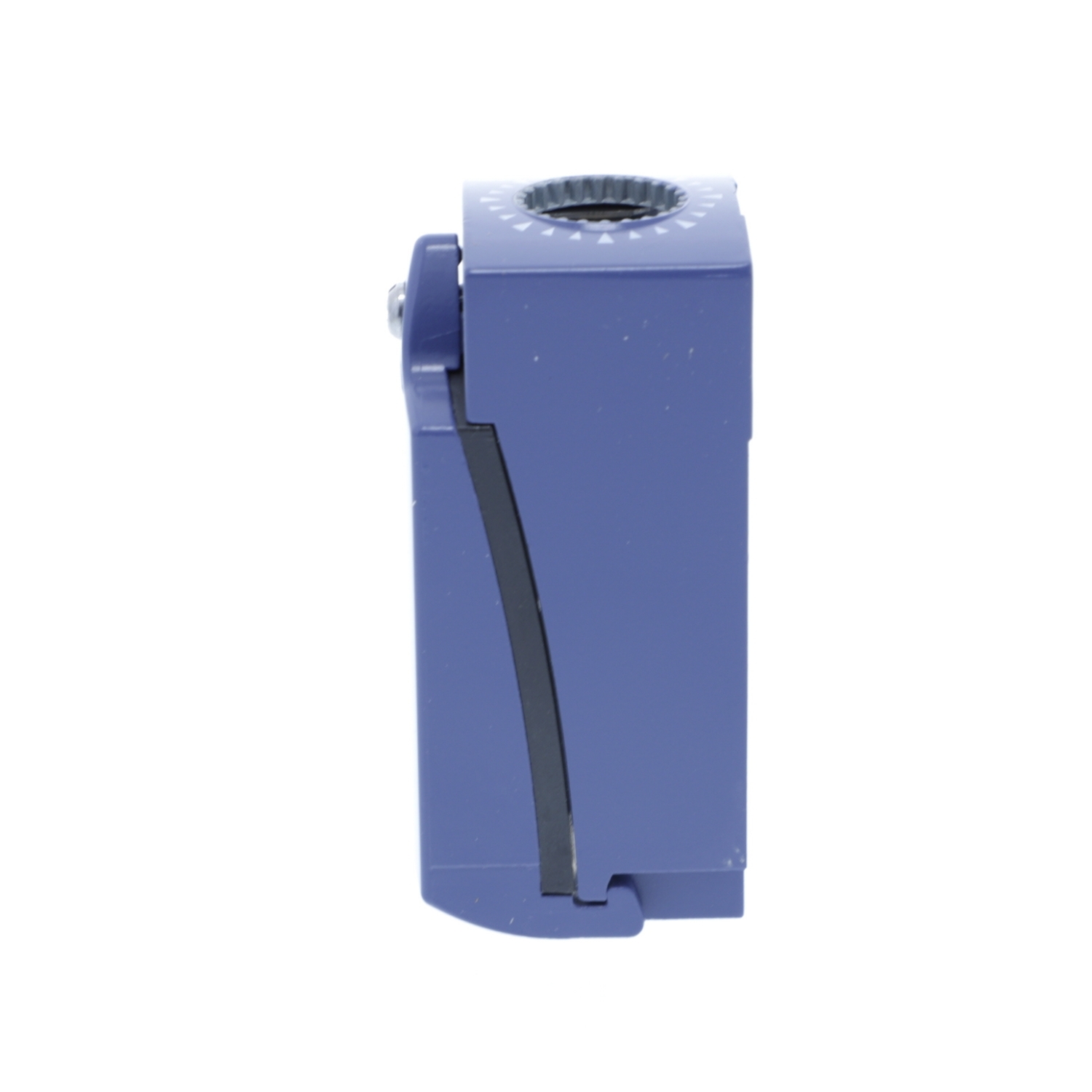

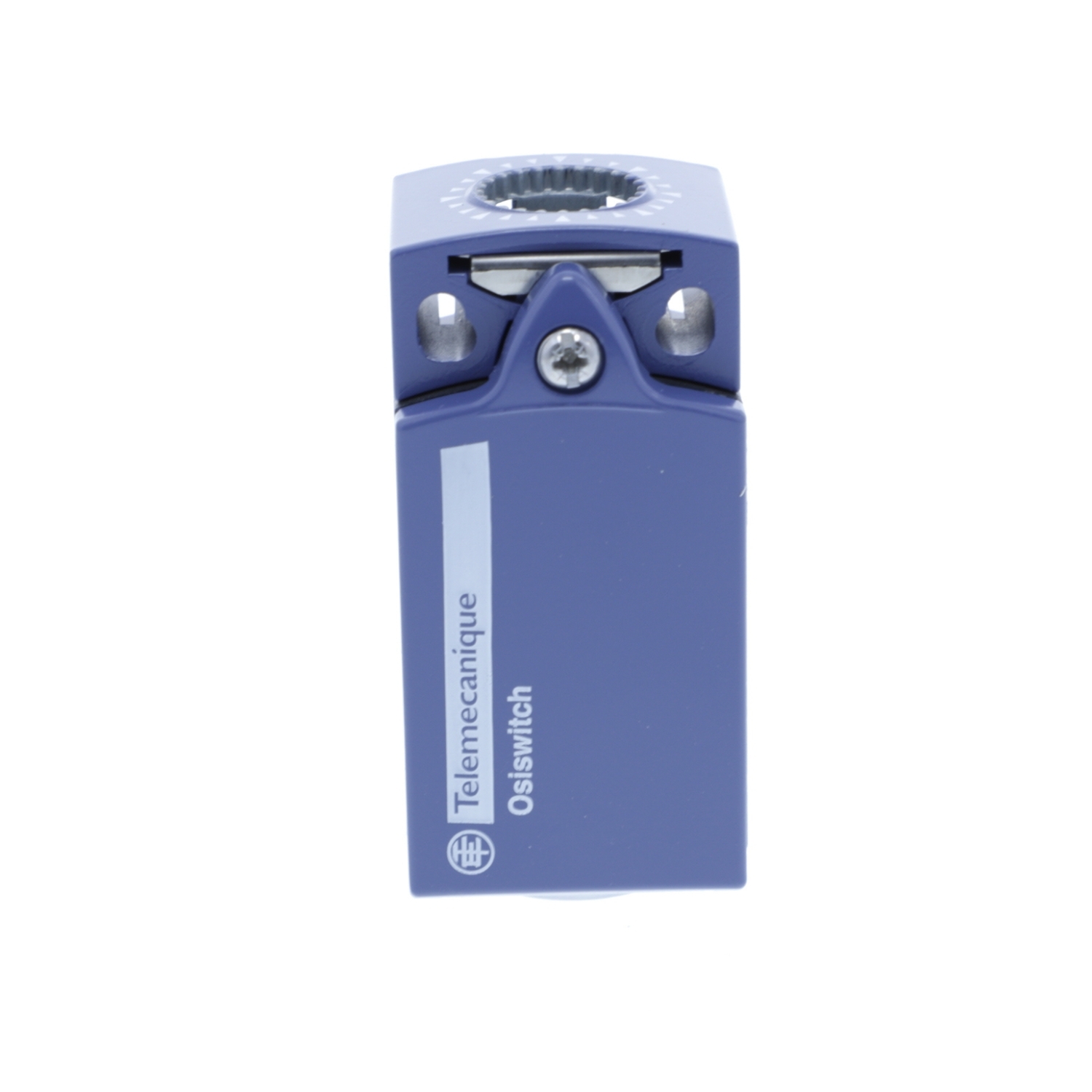

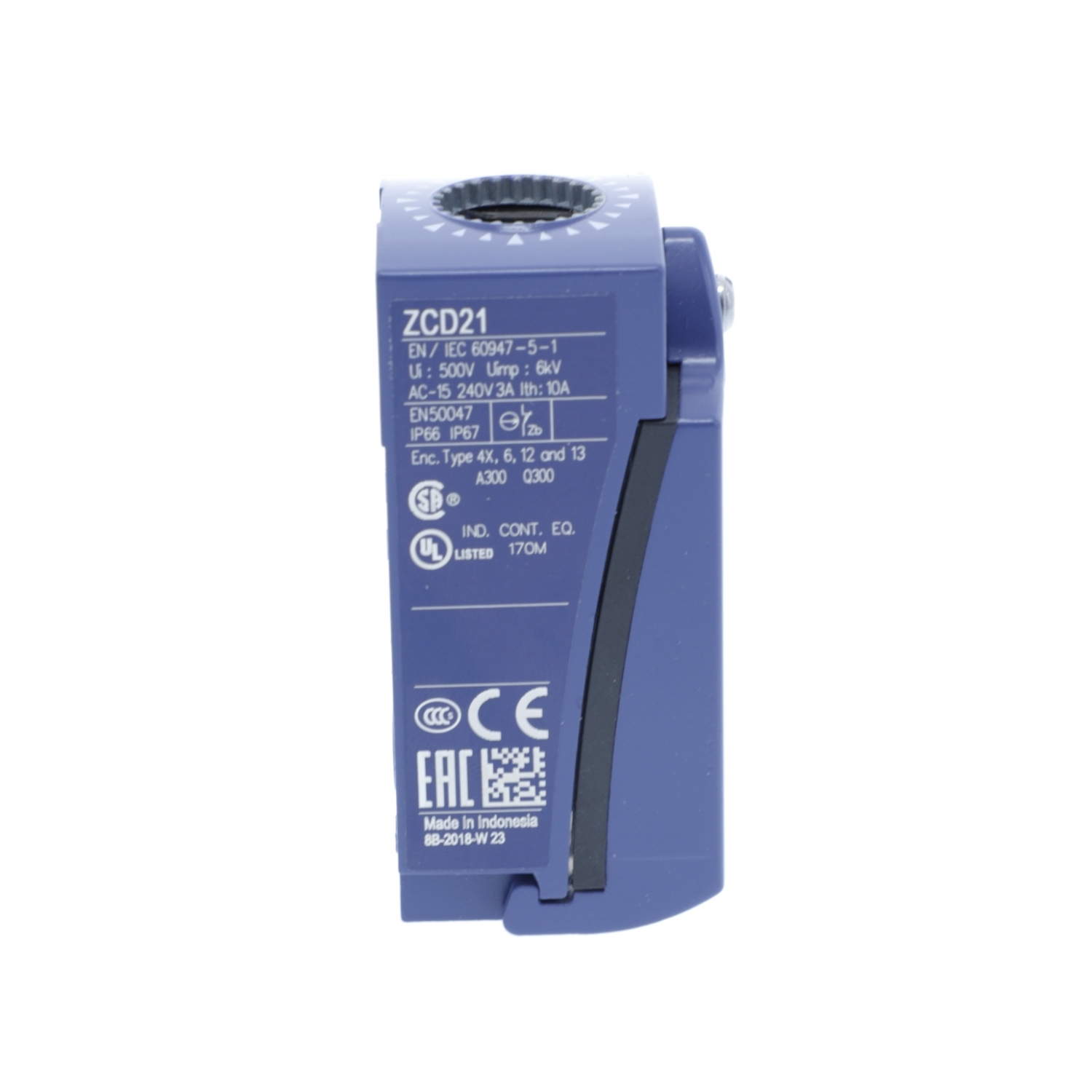

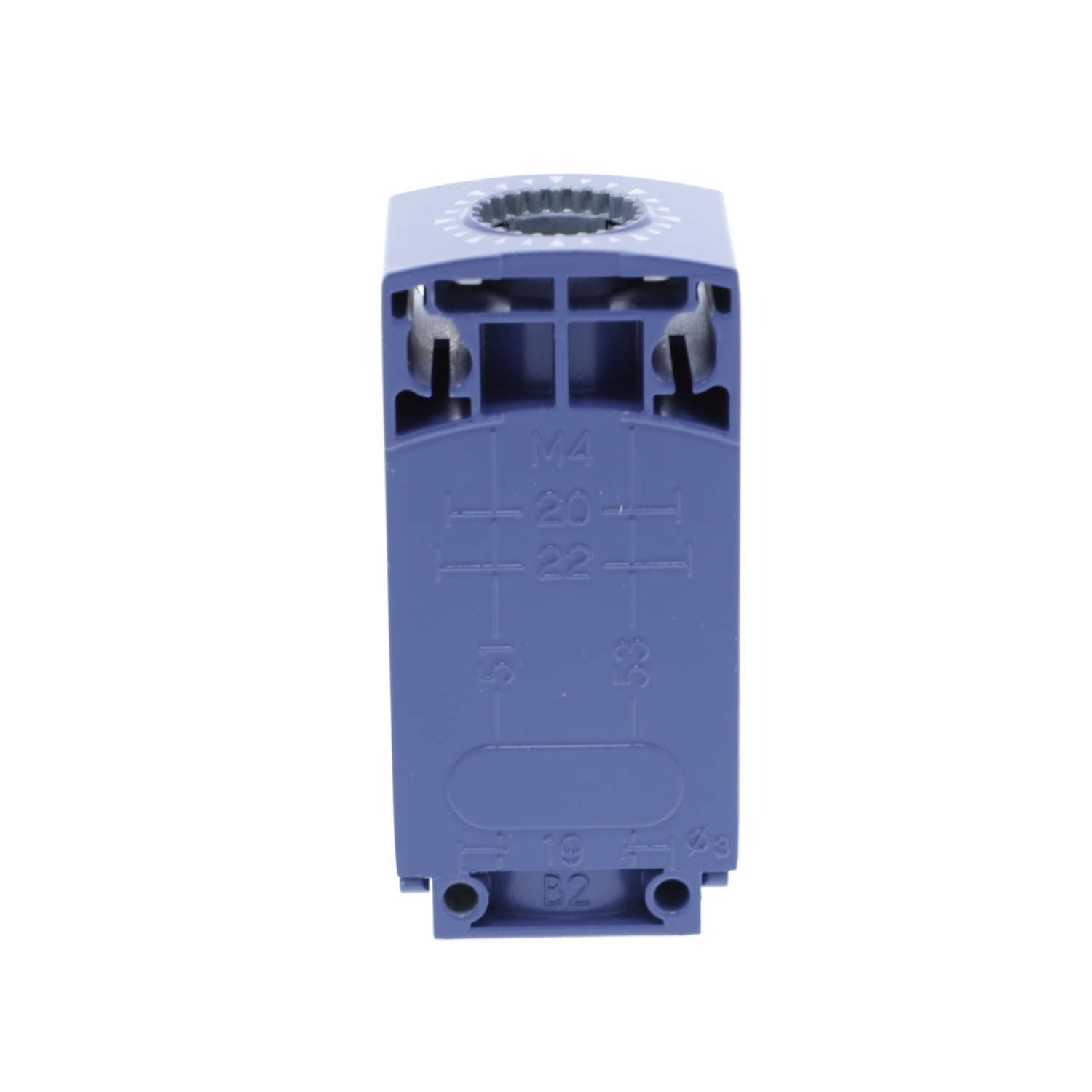

This ZCD body/contact assembly has a standard contacts and a Zamak body. It has 1 x NO + 1 x NC snap action contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCD21
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Snap action
Application XCKD
Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Contact Configuration 1 NC + 1 NO
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IEC, UL LISTED, CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879086&lang=en-us
UPC 785901290438
GTIN 03389110185300
Item Type Limit switch body
Size 1.18
Operating Temperature -25-70 A Degrees C
Voltage Rating 300 V (CSA, UL) 500 V (IEC)
