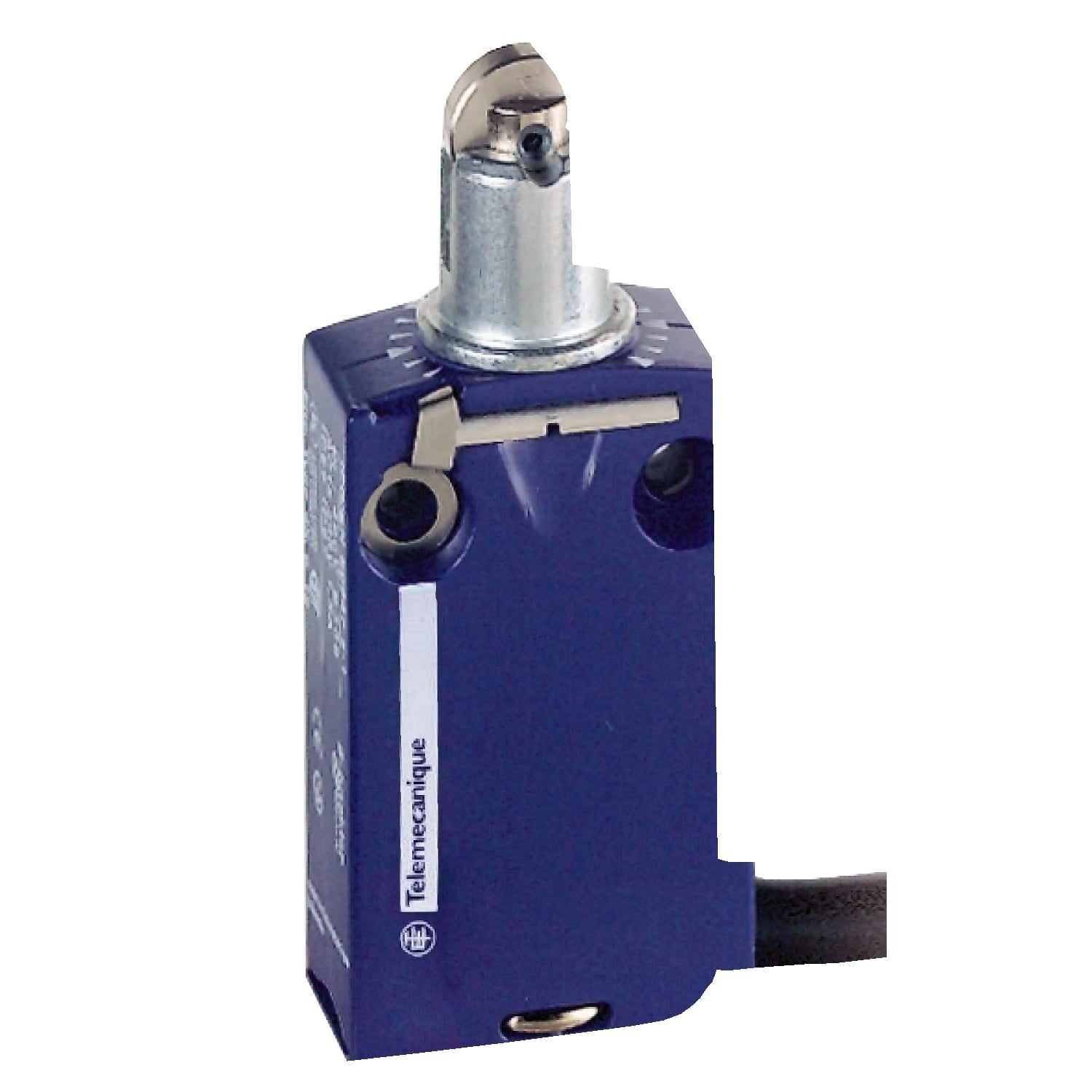

Limit switch, Limit switches XC Standard, XCM D, 1 NO + 1NC, spring return roller plunger
- MFR:
- Telemecanique Sensors
- MFR #:
- XCMD2103L1
- UPC:
- 785901269489
- Item #:
- 126523
Limit switch, Limit switches XC Standard, XCM D, 1 NO + 1NC, spring return roller plunger
- MFR #:
- XCMD2103L1
- UPC:
- 785901269489
- Item #:
- 126523
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$99.34
each
limit switch XCM-D - 1 NO + 1NC - spring return roller plunger
Manuals and Documentation
| Catalog Number | XCMD2103L1 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller plunger metal |
| Application | MINIATURE VARIABLE |
| Connection | Fixed cable |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,PLASTIC |
| Standard | 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-EN/IEC 60204-1-UL 508-EN/IEC 60947-5-1,IK04 EN 50102,IP65 IEC 60529,UL-CSA-CCC,CLASS II IEC 61140-CLASS II NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55934700&lang=en-us |
| UPC | 785901269489 |
| GTIN | 00785901269489 |
| Item Type | Limit switch |
| Size | 0.63 |
| Operating Temperature | -25-70 A Degrees C |
