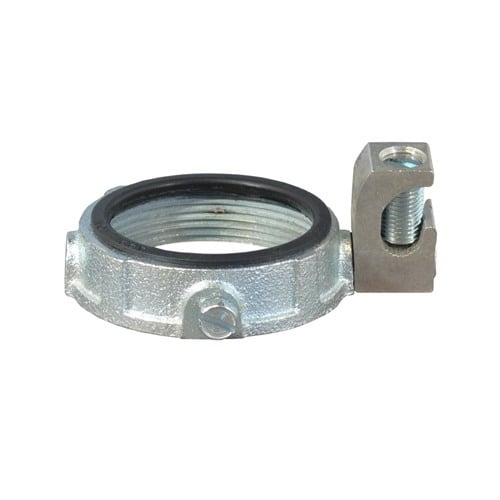

Grounding Bushing; 2 Inch, Threaded, Malleable Iron, Zinc-Electro Plated
MFR: Appleton Electric
MFR #: GIB-200L-4AC
UPC: 781381091169
Item #: 126407
Grounding Bushing; 2 Inch, Threaded, Malleable Iron, Zinc-Electro Plated
MFR #: GIB-200L-4AC
UPC: 781381091169
Item #: 126407
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$44.45
each
Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 2 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Connection: Threaded, Temperature Rating: 150 DEG C, Dimensions: 3/4 IN Height X 2.81 IN Diameter, Cable Size: 14 AWG Solid - 4 AWG Stranded, Turning Radius: 2 IN, Standard: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1, For Use With Threaded Rigid Metal Conduit And IMC
Manuals and Documentation
Features
- Zinc plated malleable iron body, zinc plated steel clamping and set screw, tin plated aluminum or bronze/bright dip grounding lug
- Insulating liner material is self-extinguishing
- Tough plastic liner won't chip, crack, swell or shrink; resists corrosion, chemicals and temperature extremes
- Gib-ls series is provided with a set-screw allowing fitting to lock bushing in any desired position
- Catalog Number
- GIB-200L-4AC
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Use With Threaded Rigid Metal Conduit And IMC
- Connection
- Threaded
- Finish
- Zinc Electroplated Body, Tin Plated Lug
- Material
- Malleable Iron
- Special Features
- Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors
- Standard
- UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
- RoHS Indicator
- Contact Manufacturer
- UPC
- 781381091169
- GTIN
- 00781381091169
- Item Type
- Insulated Grounding Bushing With Aluminum Lay-In-Lug
- Length
- 5.5000
- Length UOM
- Inch
- Width
- 5.0000
- Width UOM
- Inch
- Height
- 0.6000
- Height UOM
- Inch
- Weight
- 0.330
- Weight UOM
- Pounds
- Size
- 2
- Temperature Rating
- 150 DEG C
