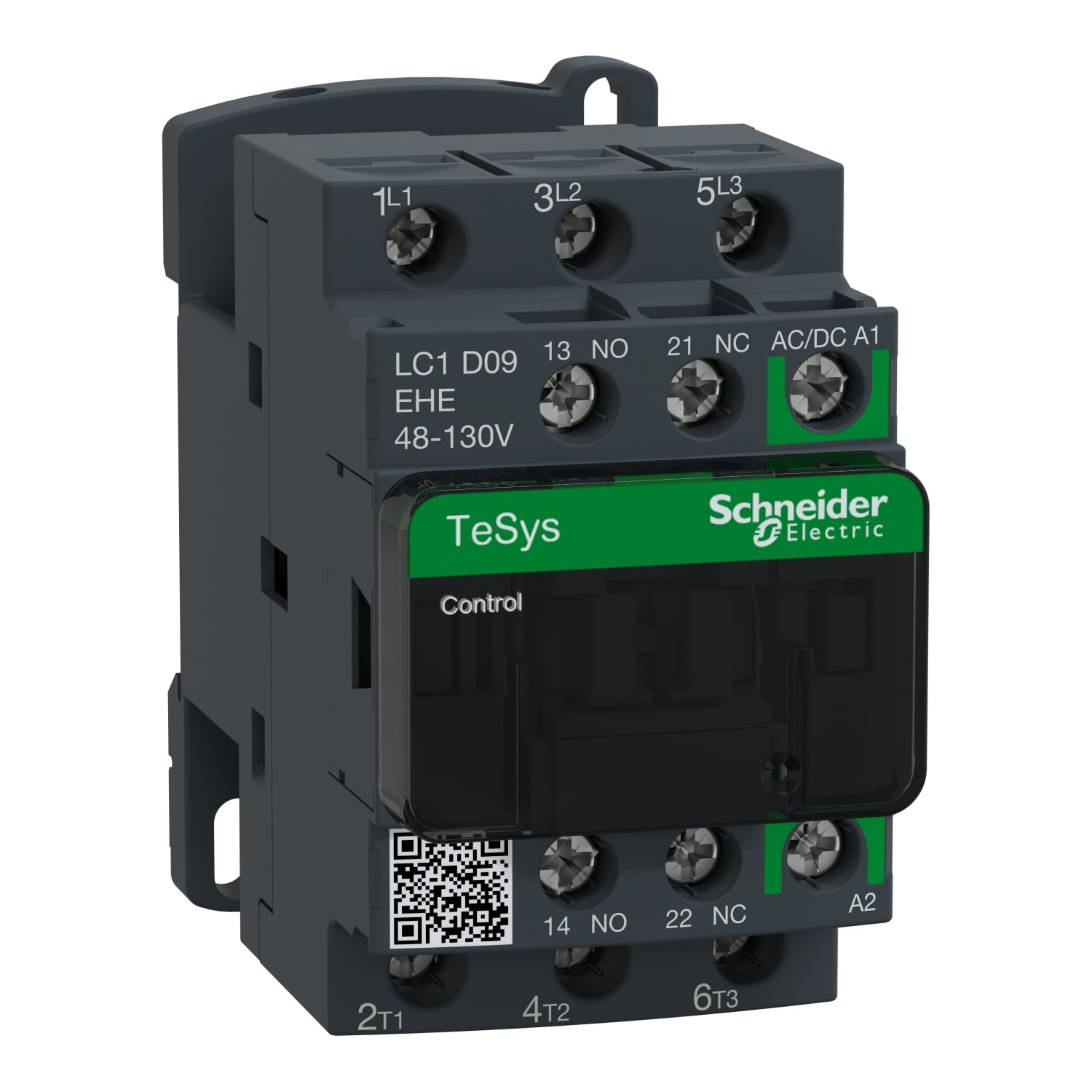

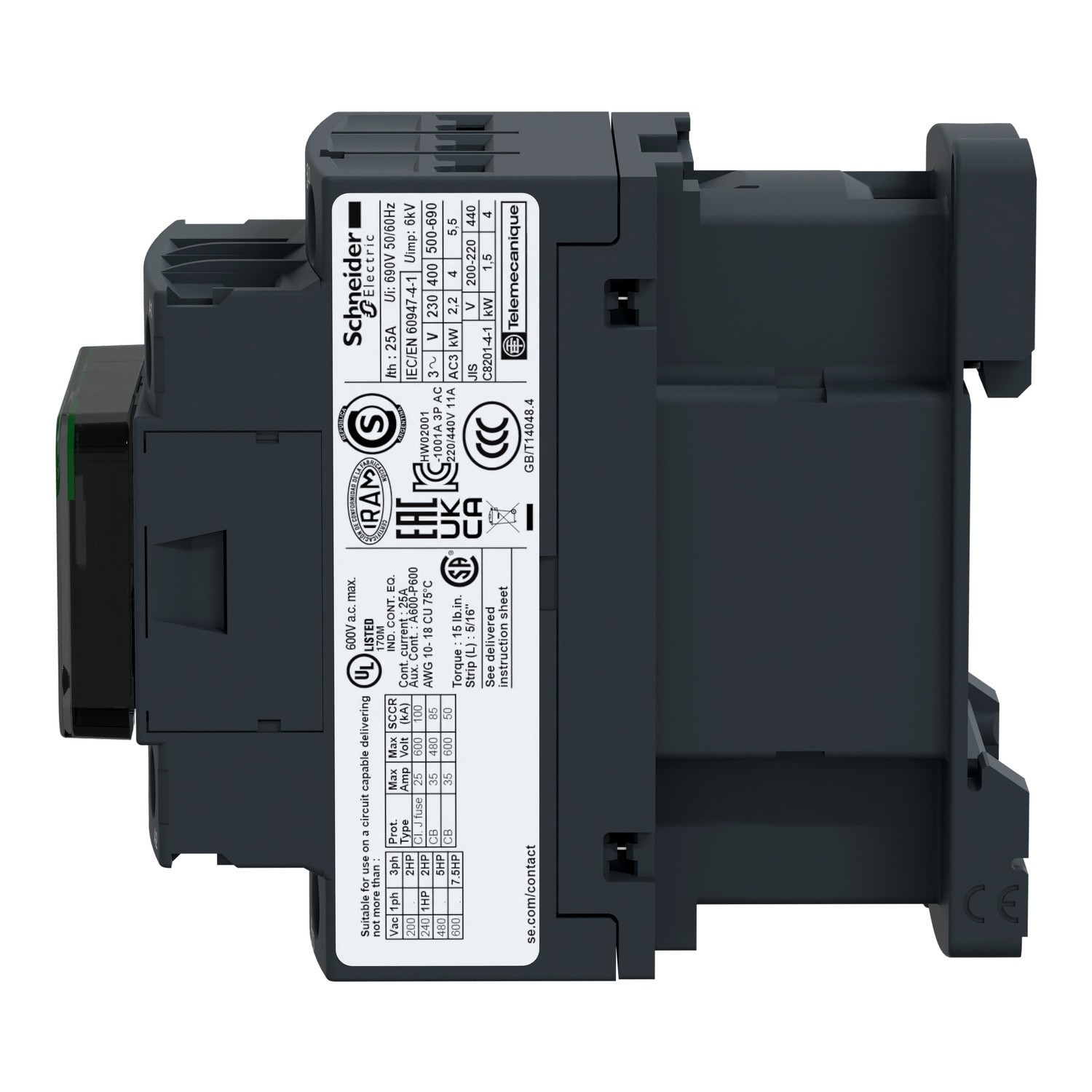

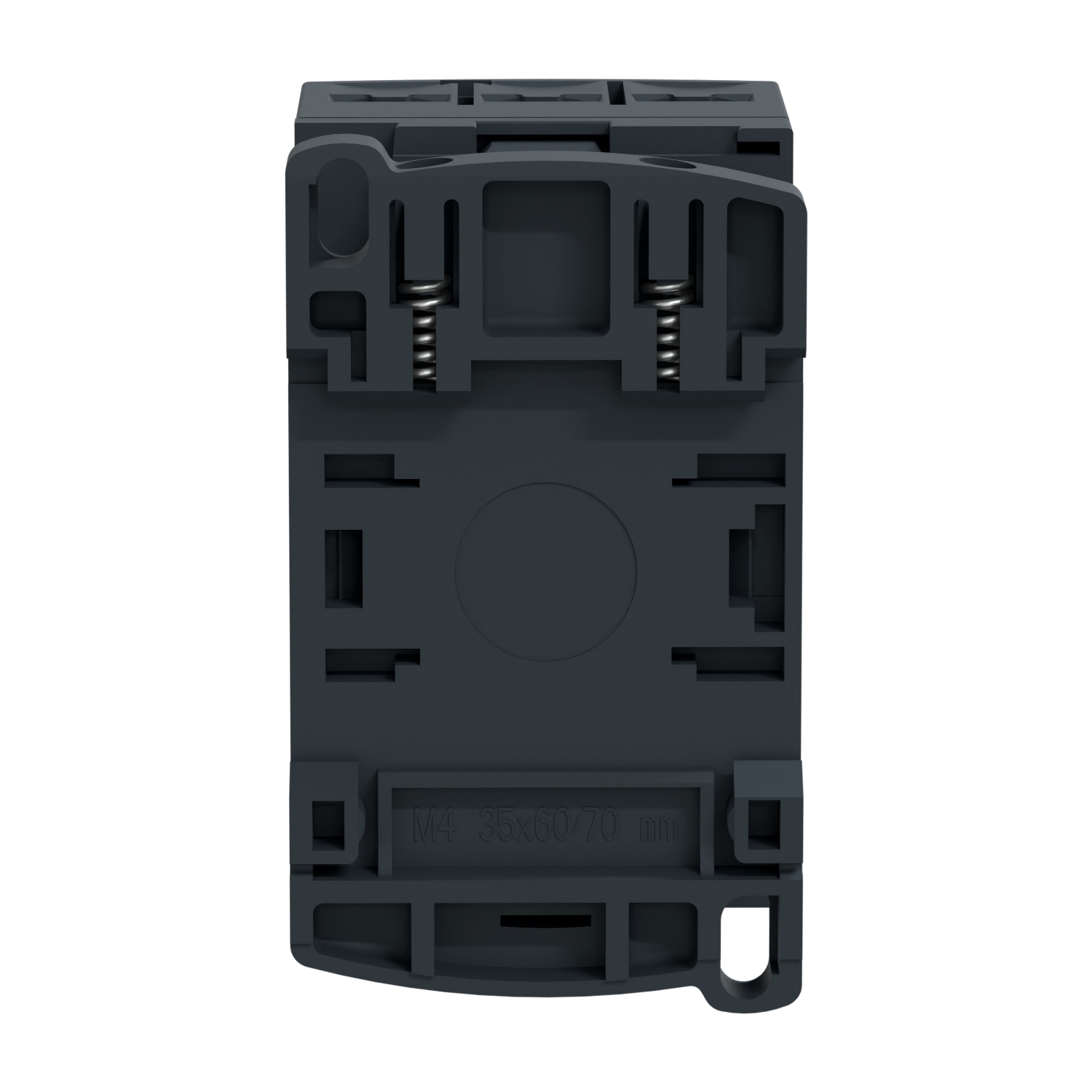

LC1D09EHE TeSys D IEC Contactor With Front Cover, 48 to 130 V AC/DC V Coil, 9/25 A, 1NO-1NC/3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D09EHE
- Item #:
- 1263506
LC1D09EHE TeSys D IEC Contactor With Front Cover, 48 to 130 V AC/DC V Coil, 9/25 A, 1NO-1NC/3NO Contact, 3 Poles
- MFR #:
- LC1D09EHE
- Item #:
- 1263506
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). They can be used to create motor starters for almost any type of application. It provides a low sealed consumption 48-130V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 20HP at 200-208VAC, 25HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 35A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 25A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Equipped with an electronic coil, wide band voltage 48-130V, AC/DC compatible, low consumption. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.81 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D09EHE |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Resistive load;motor control |
| Coil Voltage | 48...130 V AC 50/60 Hz;48...130 V DC |
| Connection | Control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid;power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid;power circuit: screw clamp terminals 2 1-4 mm² - cable stiff |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Built-in bidirectional peak limiting |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433143076&lang=en-us |
| GTIN | 03606480987649 |
| Item Type | Contactor |
