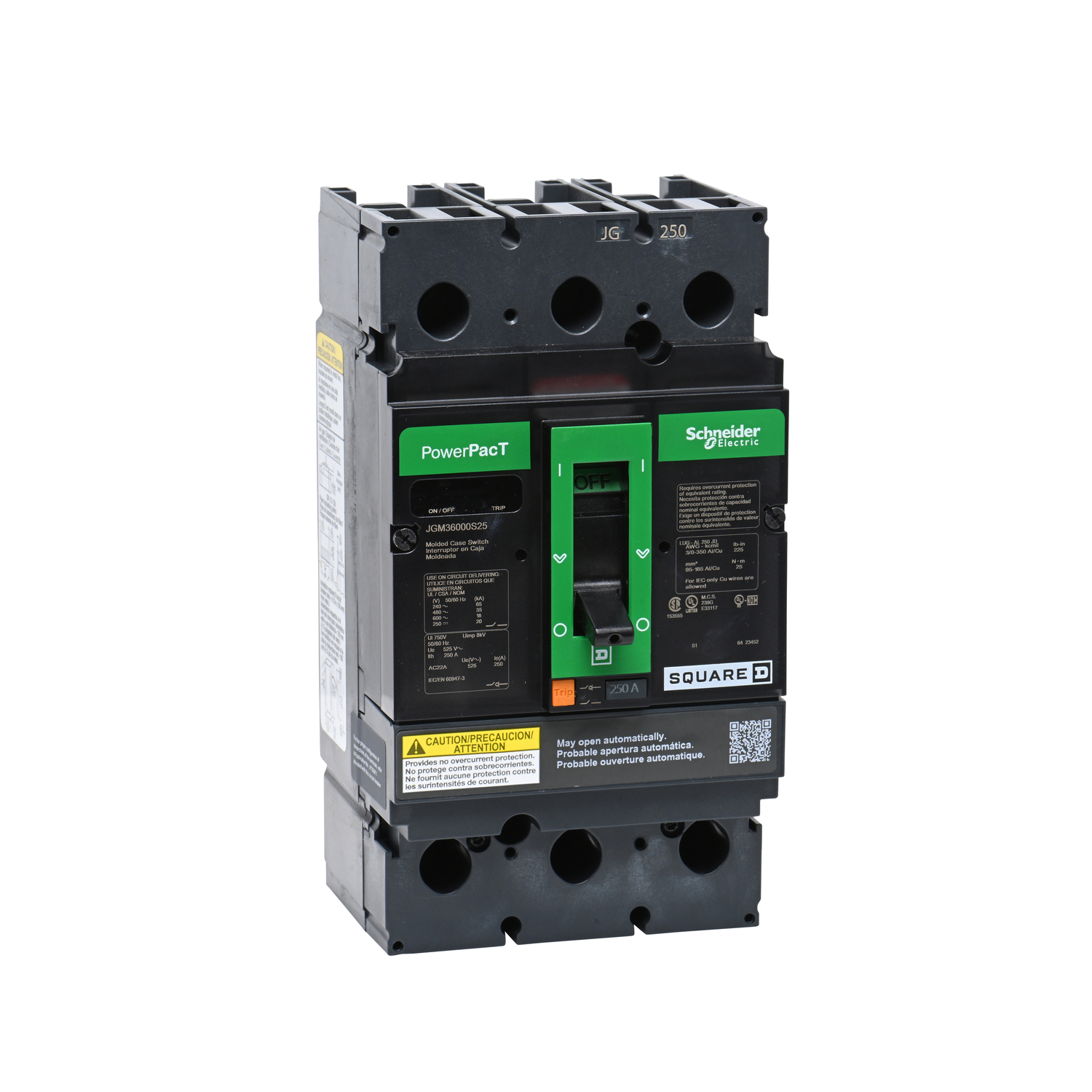

JGM36000S25 PowerPact Automatic J Molded Case Switch, 600 VAC, 250 VDC, 250 A, 18/20 kA Interrupt, 3 Poles, Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- JGM36000S25
- UPC:
- 785901865018
- Item #:
- 1262209
JGM36000S25 PowerPact Automatic J Molded Case Switch, 600 VAC, 250 VDC, 250 A, 18/20 kA Interrupt, 3 Poles, Magnetic Trip
- MFR #:
- JGM36000S25
- UPC:
- 785901865018
- Item #:
- 1262209
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT J-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on the line side and terminal nuts on the load side. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT J automatic switches comply to UL, CSA, ANCE, and IEC standards.
Manuals and Documentation
| Catalog Number | JGM36000S25 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Connection | Lugs, line;terminal nut, load; x AWG 3/0...350 kcmil ( aluminium/copper ) |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425715&lang=en-us |
| UPC | 785901865018 |
| GTIN | 00785901865018 |
| Depth | 5.0 IN |
