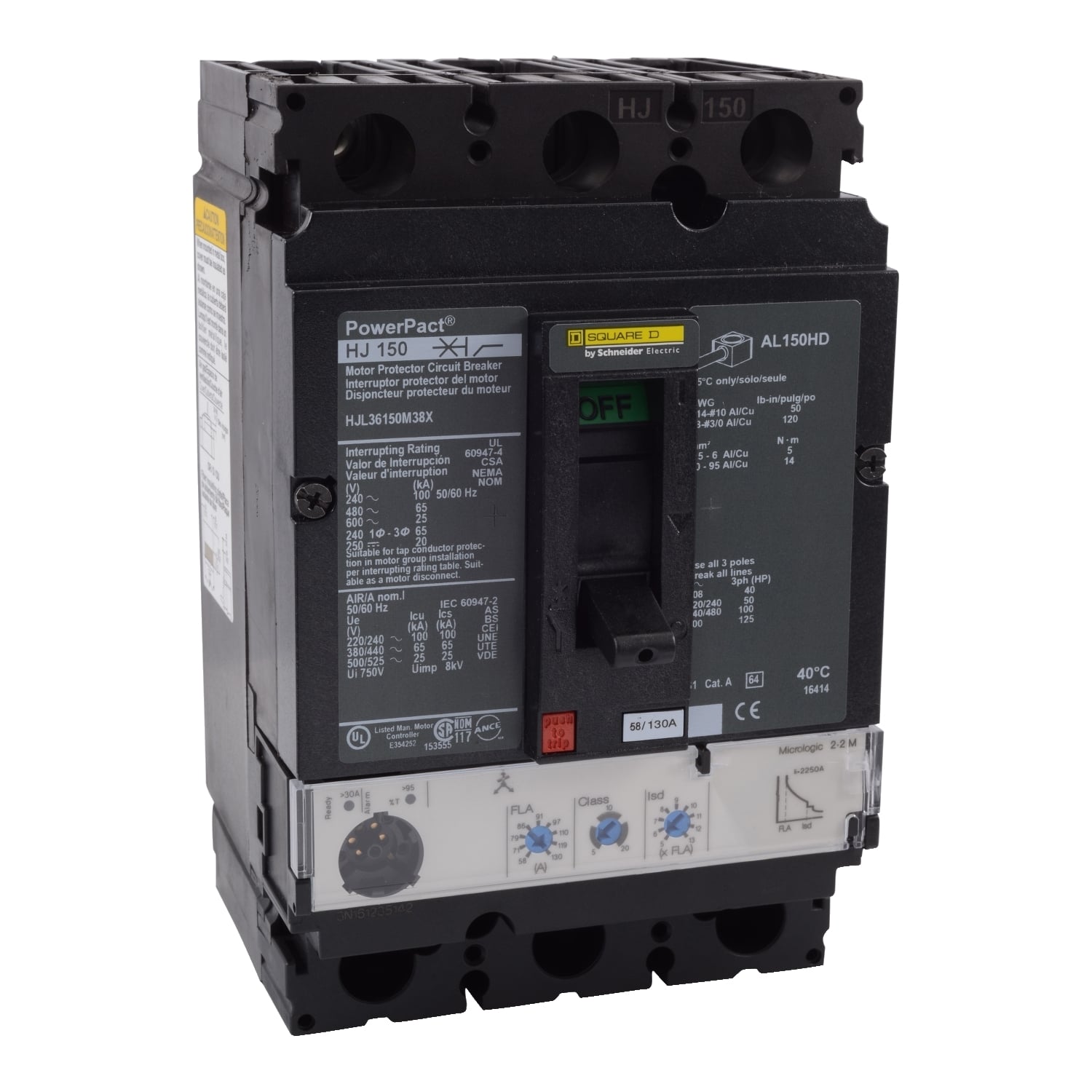

HJL36150M38X PowerPact Motor Circuit Protector, 600 V AC, 150 A, 25 Interrupt, 3 Poles, Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- HJL36150M38X
- UPC:
- 785901942108
- Item #:
- 1262052
HJL36150M38X PowerPact Motor Circuit Protector, 600 V AC, 150 A, 25 Interrupt, 3 Poles, Magnetic Trip
- MFR #:
- HJL36150M38X
- UPC:
- 785901942108
- Item #:
- 1262052
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$4,525.63
each
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. Additionally, Micrologic 2.2M trip units provide thermal protection for overload and phase unbalance. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 150A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Manuals and Documentation
| Catalog Number | HJL36150M38X |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Distribution |
| Color | Black |
| Connection | Lugs, line;lugs, load; AWG 14...AWG 3/0 aluminium/copper terminal |
| Control | Toggle |
| Number of Poles | 3 |
| Special Features | Modbus;Ethernet |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980300&lang=en-us |
| UPC | 785901942108 |
| GTIN | 00785901942108 |
| Item Type | Motor Circuit Protector |
| Trip Type | Electronic, standard, MicroLogic 2.2 M, LSoI |
