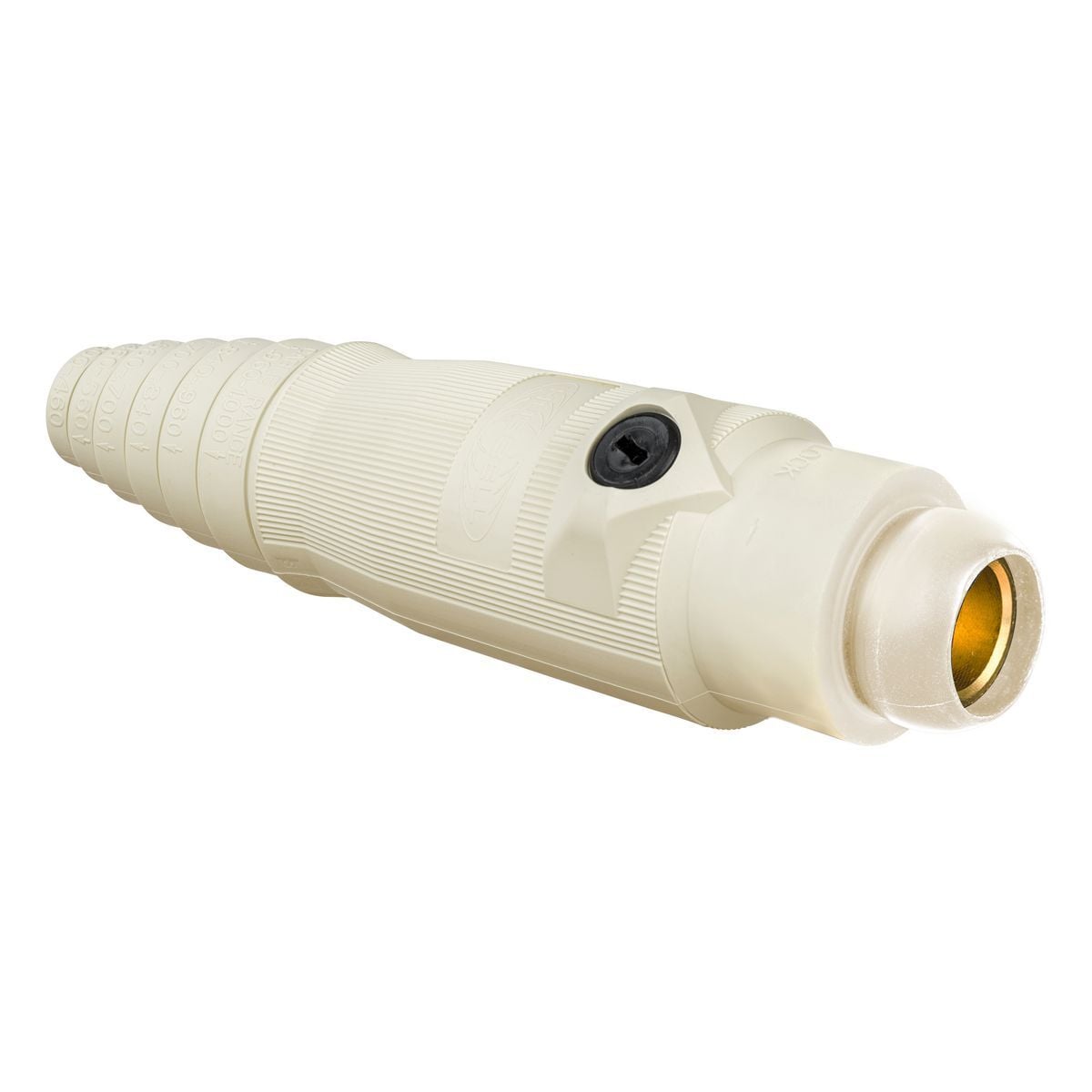

HBL18400FW 18 Series Female Standard In-Line Plug With SC/PPC Cord, 600 VAC, 250 VDC, 400 A, 3/0 to 4/0, 4 to 4/0 AWG Cu Wire, Screw Connection
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL18400FW
- UPC:
- 783585539522
- Item #:
- 1260610
HBL18400FW 18 Series Female Standard In-Line Plug With SC/PPC Cord, 600 VAC, 250 VDC, 400 A, 3/0 to 4/0, 4 to 4/0 AWG Cu Wire, Screw Connection
- MFR #:
- HBL18400FW
- UPC:
- 783585539522
- Item #:
- 1260610
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Hubbell Wiring DeviceKellems Series 18, Ball Nose, Single Pole plugs and connectors are cULus listed for use in USA and Canada, and are compatible with all competitive products. Series 18 Single Pole is a popular solution for welding connections and at shipyards. They are also widely used in the Canadian Broadcasting Industry.
Manuals and Documentation
| Catalog Number | HBL18400FW |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 400 |
| Application | High Powered Connections |
| Color | White |
| Connection | Terminal |
| Material | Composite |
| Mounting | Cord |
| Number of Poles | 1 |
| Number of Wires | 1-Wire |
| Special Features | Ball Nose Version |
| Standard | UL498, UL1691 |
| UPC | 783585539522 |
| GTIN | 00783585539522 |
| Item Type | Plugs |
| Size | Standard Sized |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Voltage Rating | 250V DC to 600V AC |
| Wattage | Single |
| Wire Size | #4 AWG To #4/0 AWG copper wire only |
