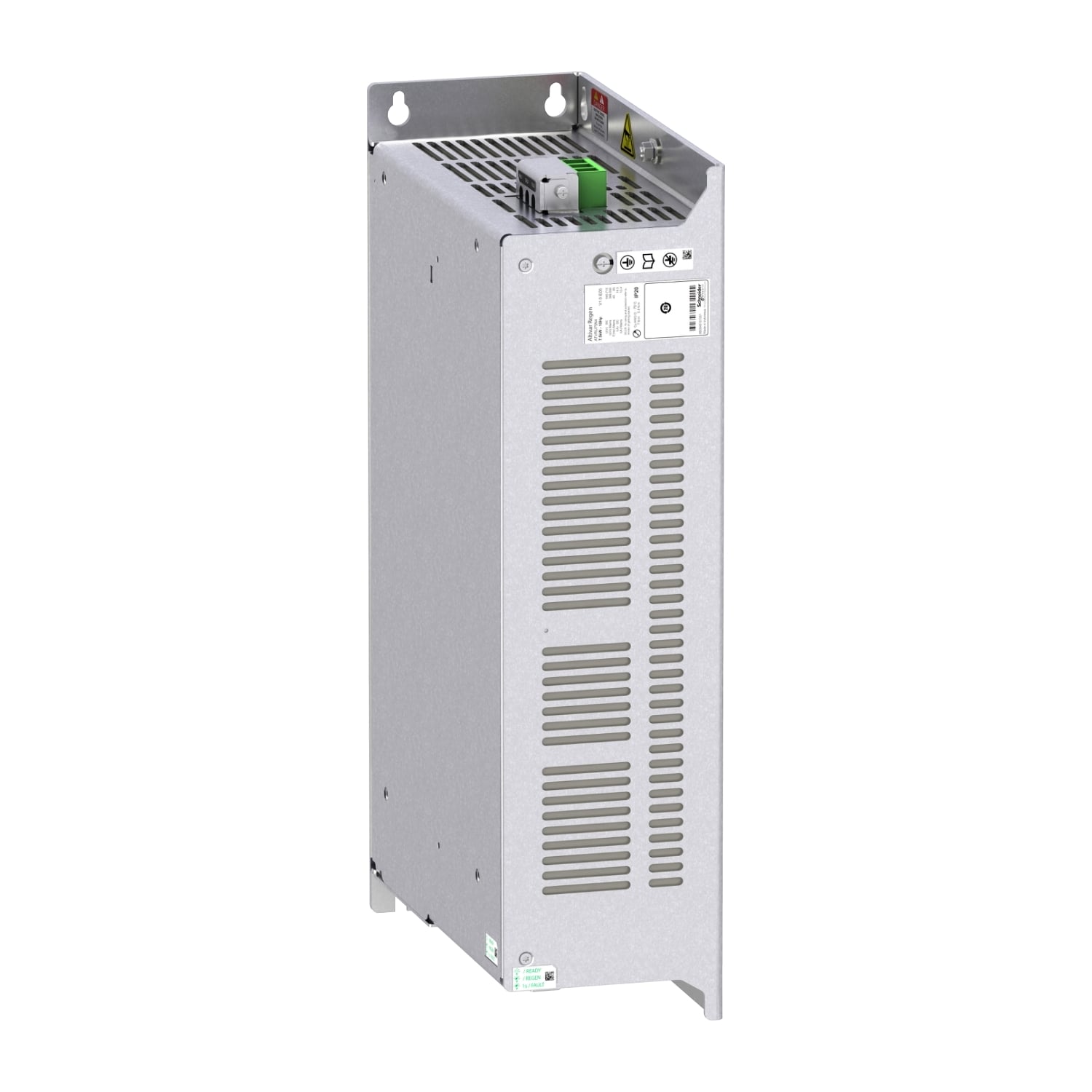

ATVRU75N4 ATVR Series Power Module, 380 to 500 V, 3.15 in w x 6.89 in d
- MFR:
- Schneider Electric
- MFR #:
- ATVRU75N4
- Item #:
- 1259346
ATVRU75N4 ATVR Series Power Module, 380 to 500 V, 3.15 in w x 6.89 in d
- MFR #:
- ATVRU75N4
- Item #:
- 1259346
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This regenerative unit is an option for variable speed drives of Altivar range. It has built in EMC filter compliant with standard IEC 61800-3. Its rated power is equal to 7.5kW. The main function of the ATV Regen product is to provide an option to regenerate energy back to the AC supply. Its protection index is IP20. Its maximum operating temperature is 50 C. It weighs 6kg and its dimensions are 80mm wide, 337mm high, 175mm deep. It is designed for heavy braking applications such as material working, material handling and hoisting with easy setting. It conforms to international standards IEC 61800-3 and IEC 61800-5-1. This regen unit is compatible with ATV320, ATV340 and ATV900 drives. The product is delivered in one package. It can installed in either vertical or horizontal position. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
Manuals and Documentation
| Catalog Number | ATVRU75N4 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=439294441&lang=en-us |
| GTIN | 03606481144218 |
