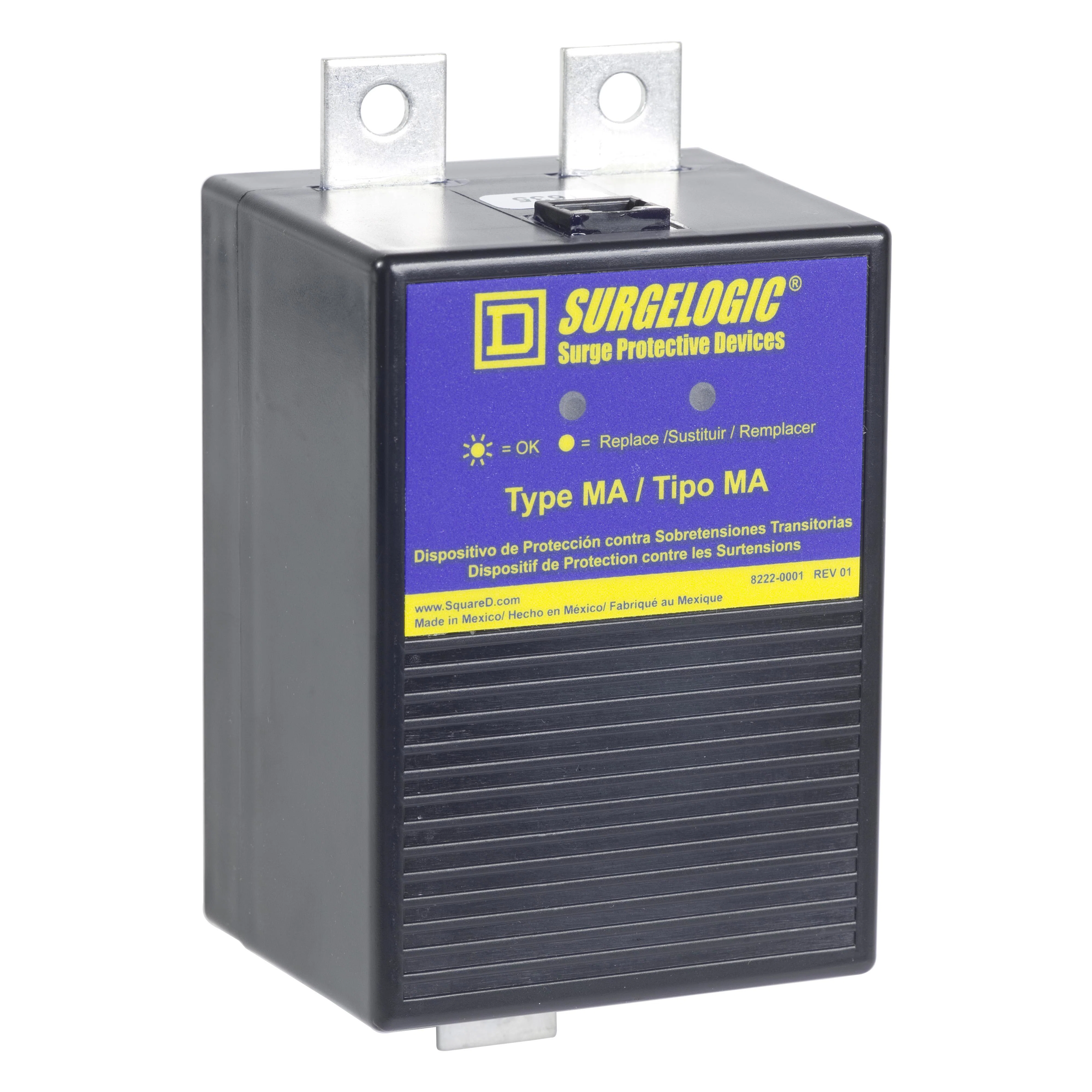

MA1IMA121 Surgelogic I-Line Type 1 Plug-On Surge Protective Module, Panel Mount, Terminal Connection, 120 kA, 120/240 V AC, 1-Phase, 3-Wire, NEMA 1, Plastic, Black
- MFR:
- Schneider Electric
- MFR #:
- MA1IMA121
- Item #:
- 1257282
MA1IMA121 Surgelogic I-Line Type 1 Plug-On Surge Protective Module, Panel Mount, Terminal Connection, 120 kA, 120/240 V AC, 1-Phase, 3-Wire, NEMA 1, Plastic, Black
- MFR #:
- MA1IMA121
- Item #:
- 1257282
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Surgelogic™ Type MA_IBA systems are module assembelies intended for use on the line side of the service enterance and as replacements for Type EBA surgical protection devices. Being modular in design, this unit is able to provide a surge current rating of 120,000 Amps in severe electrical conditions through immediate responses from its advance diagnostic system. With several optional features (remote monitor, flush mounts, integral switches and EMI/RFI filtering) these SPDs use the WYE system to provide exeptional versatility. This product is UL and CSA certified.
Manuals and Documentation
Features
- Type 1 SPD configuration (depending on model)
- NEMA 3R or 4X rating
- High energy suppression circuit that provides 10 modes of suppression from 100000 to 480000 peak amps of surge current rating per phase
- Advanced diagnostics allow for visual indication/testing of the suppressor's functionality
- Suppression status alarms provide multiple methods of alarm notification
- Coordinated fuse technology allows disconnection methods for thermal and high current events
- External panel SPDs mount adjacent to the equipment through a conduit connection and as close to the circuit breaker as possible in order to reduce lead lengths and improve surge suppression
| Manufacturer Part Number | MA1IMA121 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Country Of Origin | MX |
| Color | Black |
| Dimensions | 3.26 in W x 2.69 in D x 6.25 in H |
| Material | Plastic |
| Specifications | Panel Mount, Terminal Connection, 120 kA, 120/240 V AC, 1-Phase, 3-Wire, NEMA 1 |
| Type | Type 1 Plug-On |
| Alternative Part Number | 14892767 |
| Manufacturer Item Status | Discontinued |
| Country | USA |
| Warranty | 10 Years |
| Standards Approvals | RoHS Compliant | UL 1449 | UL 1283 | CSA C22.2 No 8:1986 | ANSI/IEEE C62.41 | ANSI/IEEE C62.45 | NEC 285 | PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65PROP65s.ca.gov |
