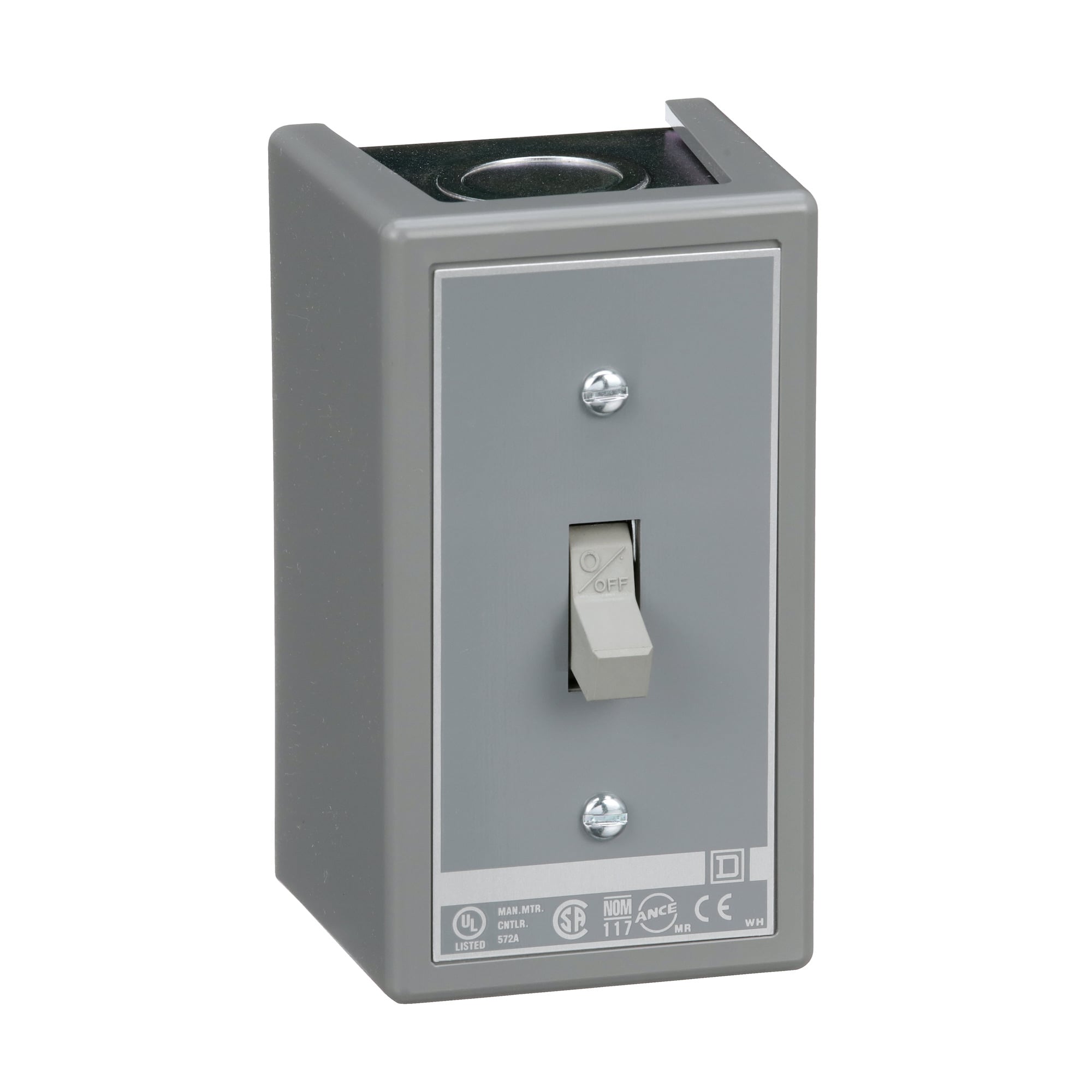

2510KG5 1-Phase Type K Manual Switch, 600 V AC/230 V DC, 30 A, 2 hp at 115 VAC/3 hp at 230 VAC/7-1/2 hp at 460 VAC/10 hp at 575 VAC Power Rating
- MFR:
- Schneider Electric
- MFR #:
- 2510KG5
- UPC:
- 785901192695
- Item #:
- 1256417
2510KG5 1-Phase Type K Manual Switch, 600 V AC/230 V DC, 30 A, 2 hp at 115 VAC/3 hp at 230 VAC/7-1/2 hp at 460 VAC/10 hp at 575 VAC Power Rating
- MFR #:
- 2510KG5
- UPC:
- 785901192695
- Item #:
- 1256417
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Square D Type K Motor starting switches provide compact manual On-Off control of single or three phase motor or resistance heating loads up to 600 VAC, where overload protection is not required or provided separately. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring. Units are UL Listed, CSA Certified and CE Marked for global applications. Manual Switches. Designed for single or three phase AC motors. Suitable for use in three phase applications up to 20 HP. Provides easy manual On-Off control of small motors. For applications where overload protection is not required or is provided separately. Intended for industrial, commercial and residential applications. Can be easily installed. UL, CSA and CE approvals. The enclosure is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. This device is UL Listed and CSA certified.
Manuals and Documentation
| Catalog Number | 2510KG5 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Cable Entry | 0.5" and 0.75" knock-outs (top and bottom) |
| UPC | 785901192695 |
| GTIN | 00785901192695 |
| Width | 2.44 |
| Width UOM | Inch |
| Height | 4.25 |
| Height UOM | Inch |
| Depth | 2.75 IN |
