Greenlee

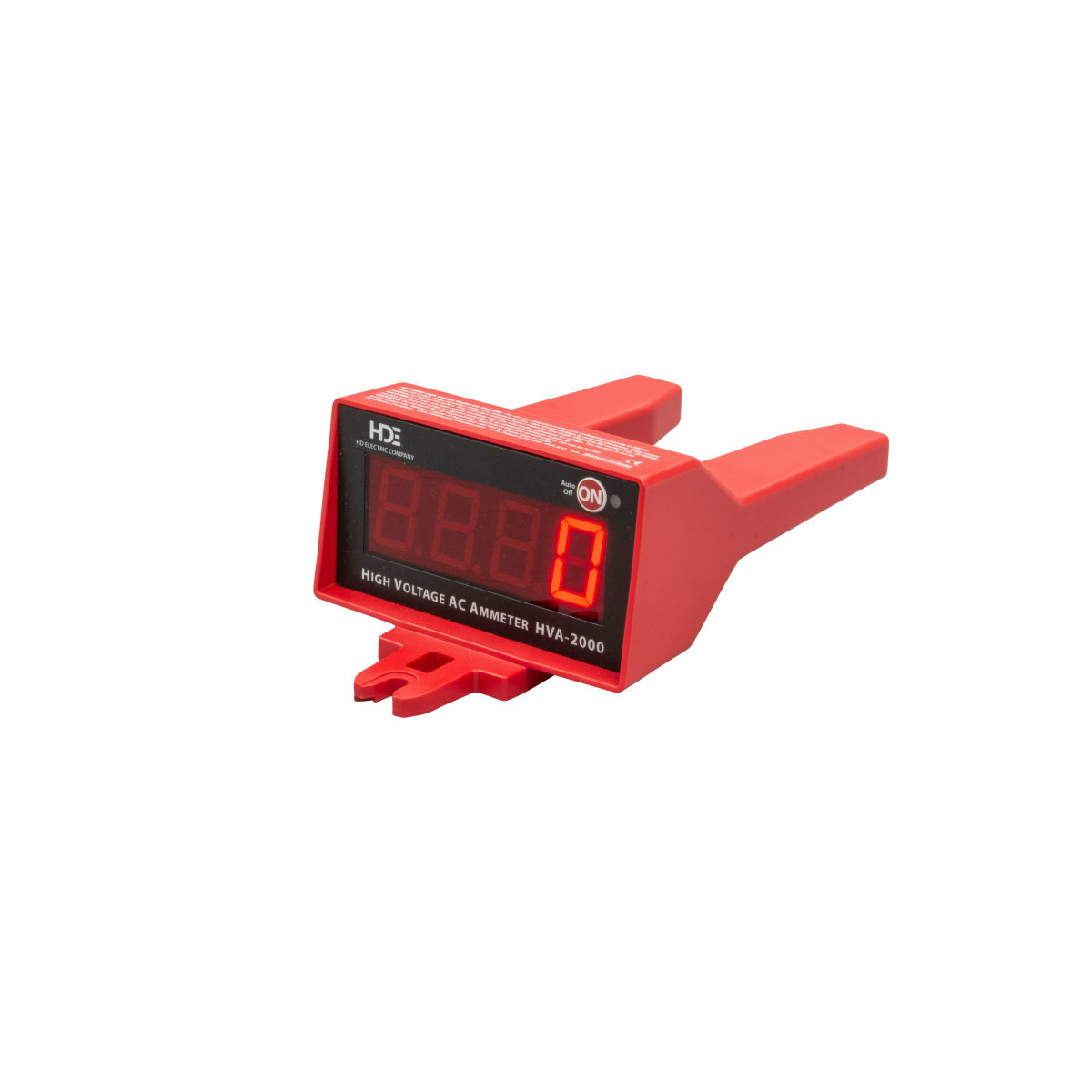

HVA-2000 High Voltage Digital Ammeter, 0 to 500 kV, 1 to 2000 A, 25 to 500 Hz, 2 % Accuracy

MFR:
Greenlee
MFR #:
HVA-2000
UPC:
783310628309
Item #:
1254907

Availability

Location Available Qty
Available Available to Order
$2,695.33 each
Manuals and Documentation
Catalog Number HVA-2000
Manufacturer Greenlee
Brand Greenlee
Country of Origin United States
Made in USA Yes
Accuracy 50-60Hz - 1�10A � 1% +/-2 counts, 11�100A � 1% +/-3 counts, 101�500A � 1% +/-6 counts, 501�2000A � 1% +/-8. 252-49Hz and 61-500Hz - 1�10A � 2% +/-3 counts, 11�100A � 2% +/-4 counts, 101�500A � 2% +/-6 counts, 501�2000A � 2% +/-8 counts
Application Ammeter
Display LED display
Frequency Rating 25 - 500Hz
Special Features Measures AC current from 1 to 2000 Amps on system voltages up to 500kV line-to-ground; Stores the last 4 readings; Dual measurement modes, peak hold and real time; Takes spot-load checks with ease; Verifies phases are balanced; Versatile for overhead and underground applications; Compact, lightweight design
UPC 783310628309
GTIN 00783310628309
Item Type High voltage ammeter current 1-2000 amps on system voltages up to 500kV line-to-ground
Operating Temperature -20�F to +140�F (-29�C to +60�C)
