Telemecanique

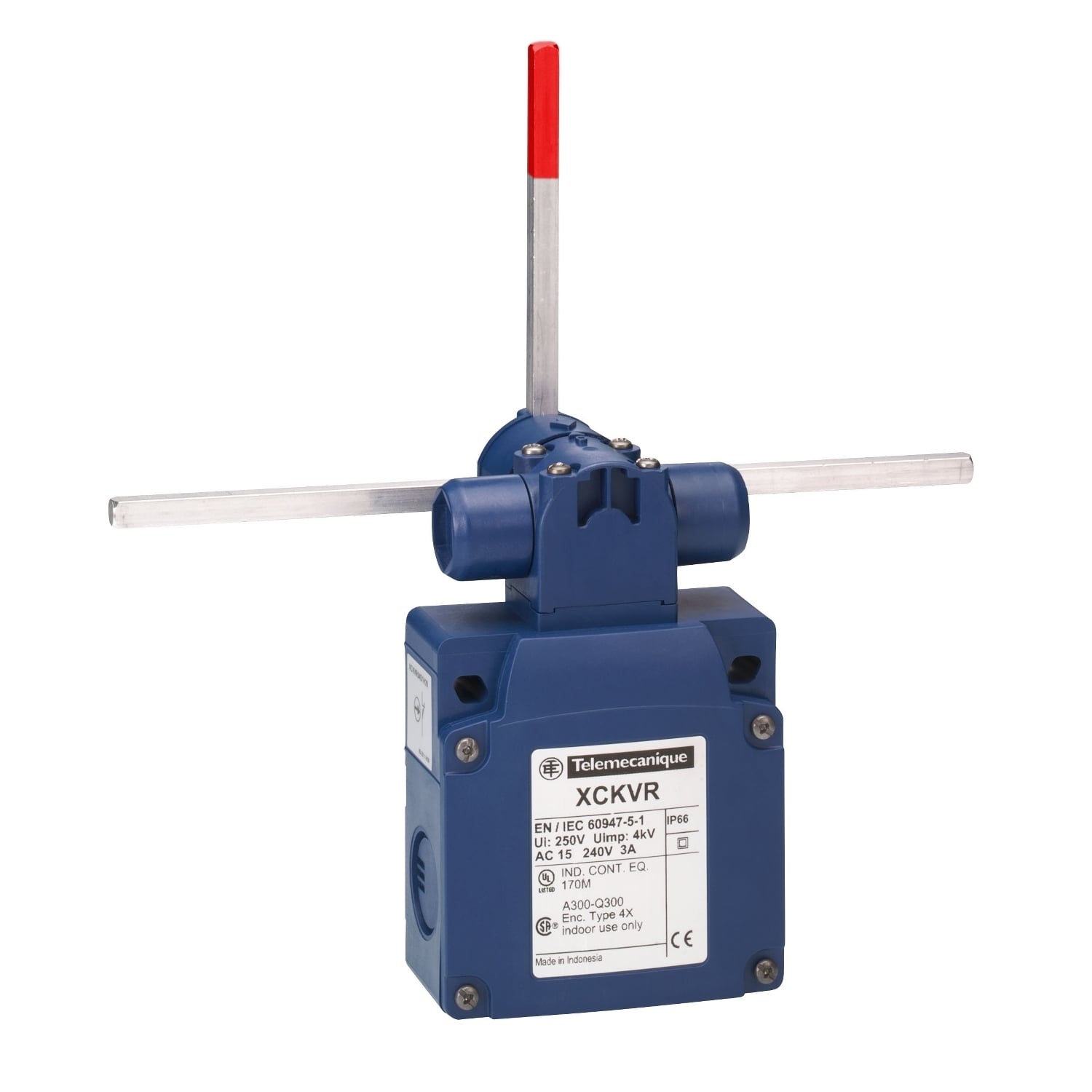

XCKVR44D2H29 OsiSense XC Fixed Rotary Special Format Limit Switch, 300/500 V, Crossed Rod Lever Actuator, 2NO-2NC Contact, 4 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKVR44D2H29
Item #:
1252676

Availability

Location Available Qty
Available Available to Order
$1,058.83 each

limit switch XCKVR - reverse head stay put crossed rods - 2x(NC+NO) - slow - M20

Manuals and Documentation
Catalog Number XCKVR44D2H29
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Action Lateral approach, 2 directions;Slow-break, break before make;By any moving part
Actuator Stay put crossed rods lever metal square rod 6 mm, L = 200 mm
Application For hoisting and mechanical handling applications
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 2 x (1 NC + 1 NO)
Mounting By The Body
Number of Poles 4
Special Features FIXED,PLASTIC
Standard 25 GN 10-500 HZ)EN/IEC 60068-2-6,50 GN EN/IEC 60068-2-27,CCC-CSA-UL-CE,CSA C22.2 NO 14-EN/IEC 60947-5-1-UL 508,IK04 EN 50102,IP65 EN/IEC 60529,CLASS II IEC 60536
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=150036349&lang=en-us
GTIN 03389119077484
Item Type Limit switch
Size 2.60
Operating Temperature -25-70 A Degrees C
