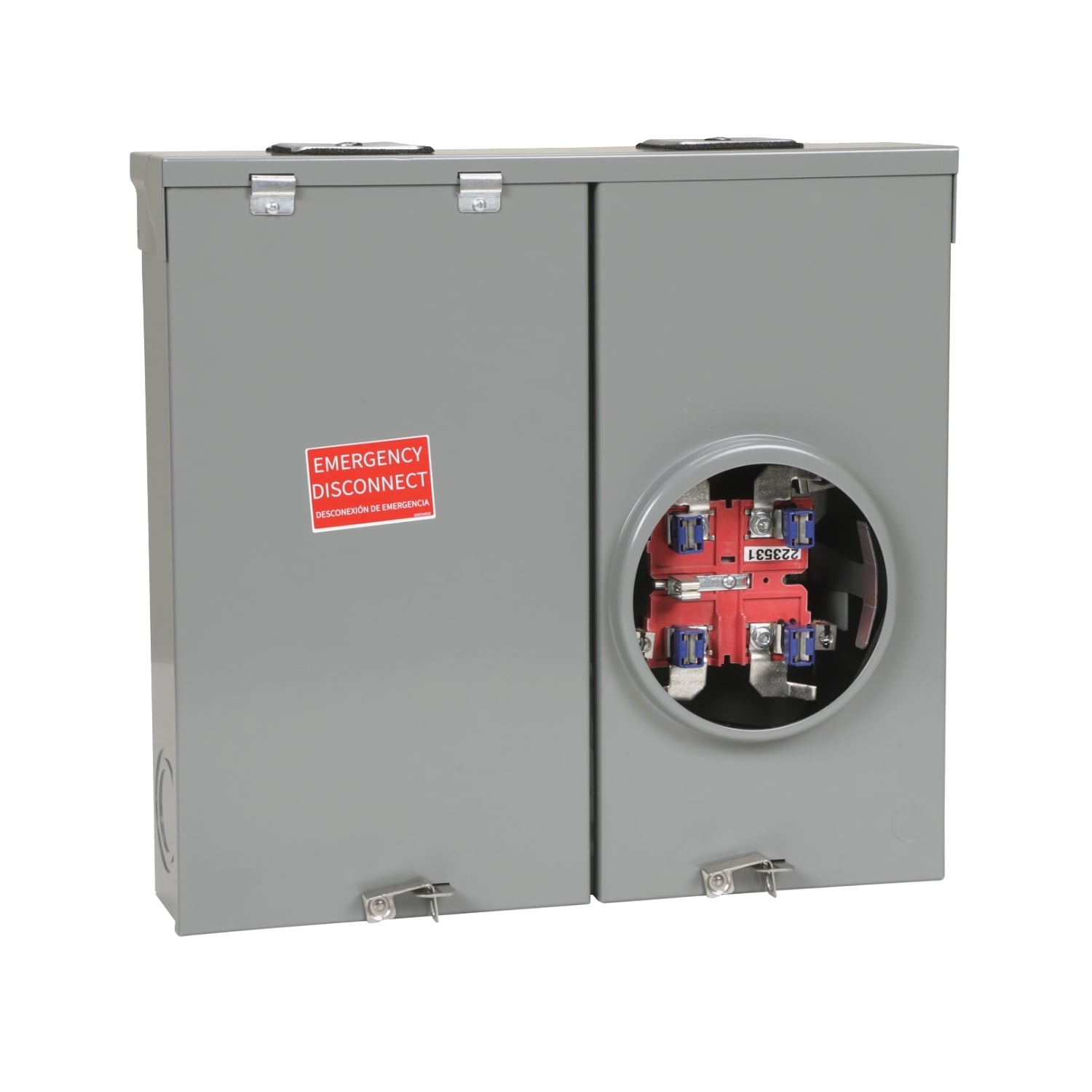

RC2M200S QO Meter Main, CSED, 200 Amp, 1 Phase, Ringless, No Bypass, OH, UG, 120/240V, Surface
RC2M200S QO Meter Main, CSED, 200 Amp, 1 Phase, Ringless, No Bypass, OH, UG, 120/240V, Surface
| Location | Available Qty |
|---|---|
| Available | Available to Order |
QO All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This QO All In One combination service entrance device has a ringless meter socket with no bypass. This unit can be feed from an overhead or underground service. The service disconnect, which must be ordered separately, is a QOM2 VH (200 A maximum) and a QO VH (50 A maximum). Device has a 22 kA short circuit current rating. Load center has no spaces. This unit has a NEMA 3R surface mounting enclosure that is 18.23 inches tall, 19.58 inches wide and 4.60 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept up to two 8 AWG to 2/0 AWG copper or aluminum wire. This QO combination service entrance device is UL Listed. Device meets EUSERC standards.
Manuals and Documentation
- Catalog Number
- RC2M200S
- Manufacturer
- Schneider Electric
- Brand
- SQUARE D
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Mexico
- Made in USA
- No
- Bypass Type
- No Bypass
- UPC
- 785901396697
- GTIN
- 00785901396697
- Width
- 19.58
- Width UOM
- Inch
- Height
- 18.23
- Height UOM
- Inch
- Depth
- 4.6 IN
