Schneider Electric

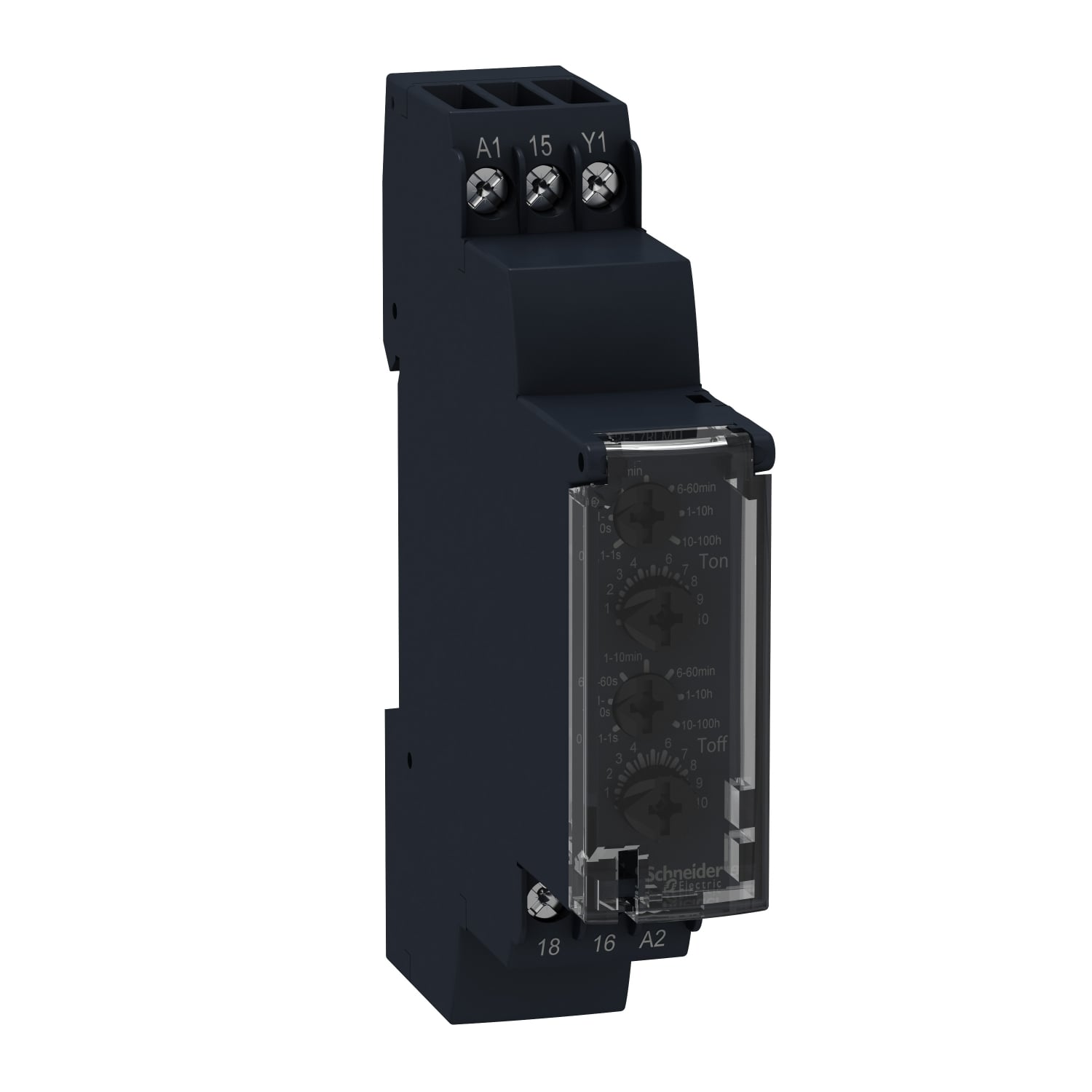

RE17RLJU Zelio Modular Timing Relay With Relay Output, 0.1 sec to 100 hr Setting, 12 V DC, 1 Form C SPDT Contact, 1 Poles

MFR:
Schneider Electric
MFR #:
RE17RLJU
Item #:
1250584

Availability

Location Available Qty
Available Available to Order
$73.49 each

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 12V AC/DC. "It also has 1 changeover contact SPDT (single pole double throw)." "It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0 0 0

Manuals and Documentation
Catalog Number RE17RLJU
Manufacturer Schneider Electric
Brand Schneider Electric
Country of Origin Indonesia
Made in USA No
Application Asymmetrical flashing timer
Connection Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end;screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end;screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end;screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Contact Configuration 1 C/O
Frequency Rating 50...60 Hz +/- 5 %
Mounting Din Rail
Special Features Selector switch front panel;LED indicator on steady: relay energised, no timing in progress;LED indicator 80 % ON and 20 % OFF flashing: timing in progress
Standard CE
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=180422190&lang=en-us
GTIN 03606480552717
Item Type Modular timing relay
