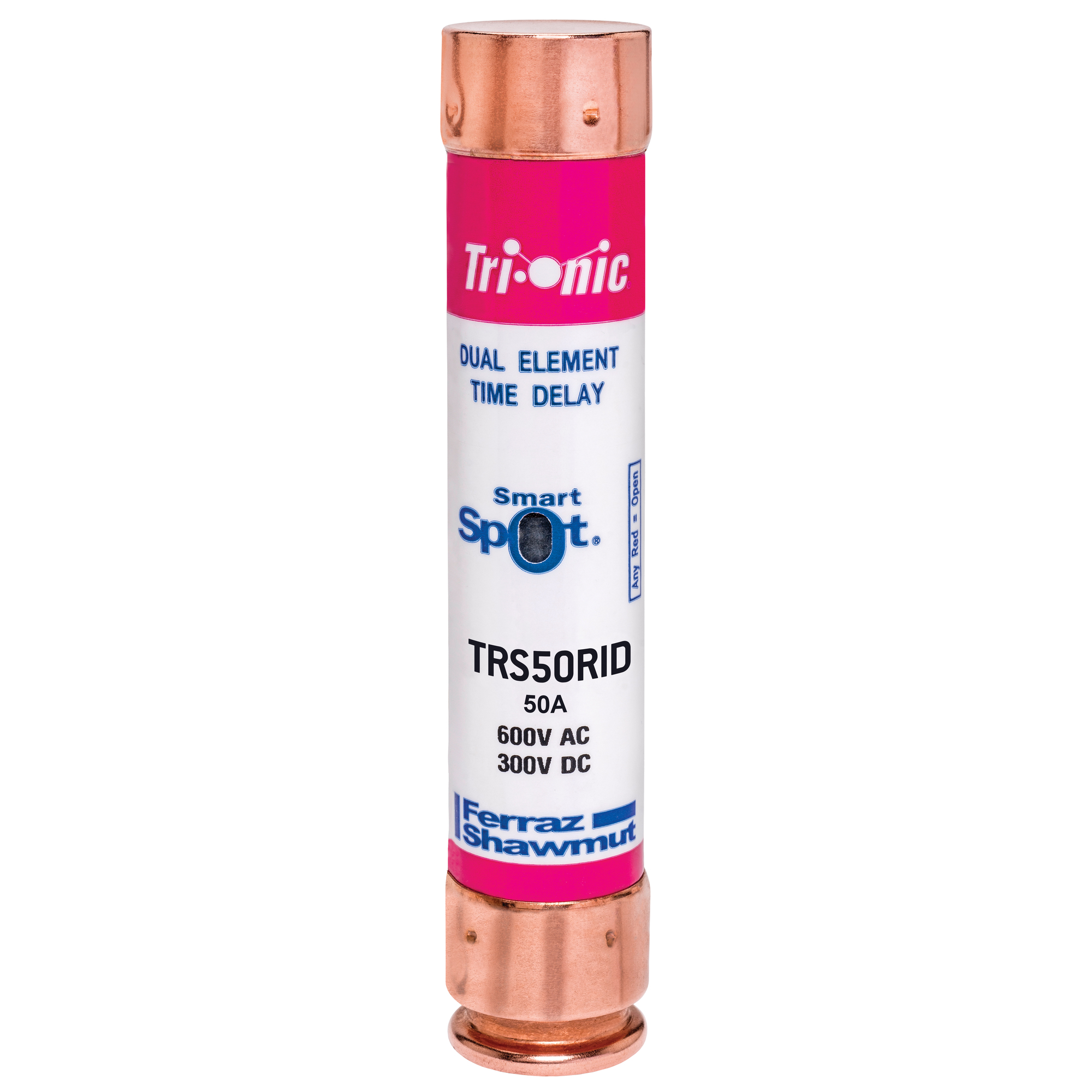

Fuse TRS-R - Class RK5 - Time-Delay 600VAC 300VDC 50A Ferrule SmartSpot
- MFR:
- Mersen
- MFR #:
- TRS50RID
- UPC:
- 782001415129
- Item #:
- 1248968
Fuse TRS-R - Class RK5 - Time-Delay 600VAC 300VDC 50A Ferrule SmartSpot
- MFR #:
- TRS50RID
- UPC:
- 782001415129
- Item #:
- 1248968
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$130.36
each
Fuse TRS-R - Class RK5 - Time-Delay 600VAC 300VDC 50A Ferrule SmartSpot Tri-Onic
Manuals and Documentation
| Catalog Number | TRS50RID |
| Manufacturer | Mersen |
| Brand | Mersen |
| Amperage Rating | 50 |
| Application | Motor circuits Mains Feeders Branch circuits Transformers Service entrance equipment General-purpose equipment |
| Connection | Ferrule |
| Interrupt Rating | 200 KA |
| Mounting | Clip |
| Special Features | Time-delay Current-limiting AC & DC rated Optional solid state SmartSpot blown fuse indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse blocks) Easy-to-read label for quick brand recognition and replacement Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching and high current limitation |
| Standard | UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 no. 248.12 DC listed to UL standard 248 TRS only |
| UPC | 782001415129 |
| GTIN | 00782001415129 |
| Item Type | Class RK5 |
| Size | 5.5 x 1.06 |
| Type of Indicators | SmartSpot® |
| Voltage Rating | 600 |
