XACA4812 XACA Pendant control station, Slow Break Contact
- MFR:
- Schneider Electric
- MFR #:
- XACA4812
- Item #:
- 1246929
XACA4812 XACA Pendant control station, Slow Break Contact
- MFR #:
- XACA4812
- Item #:
- 1246929
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$650.48
each

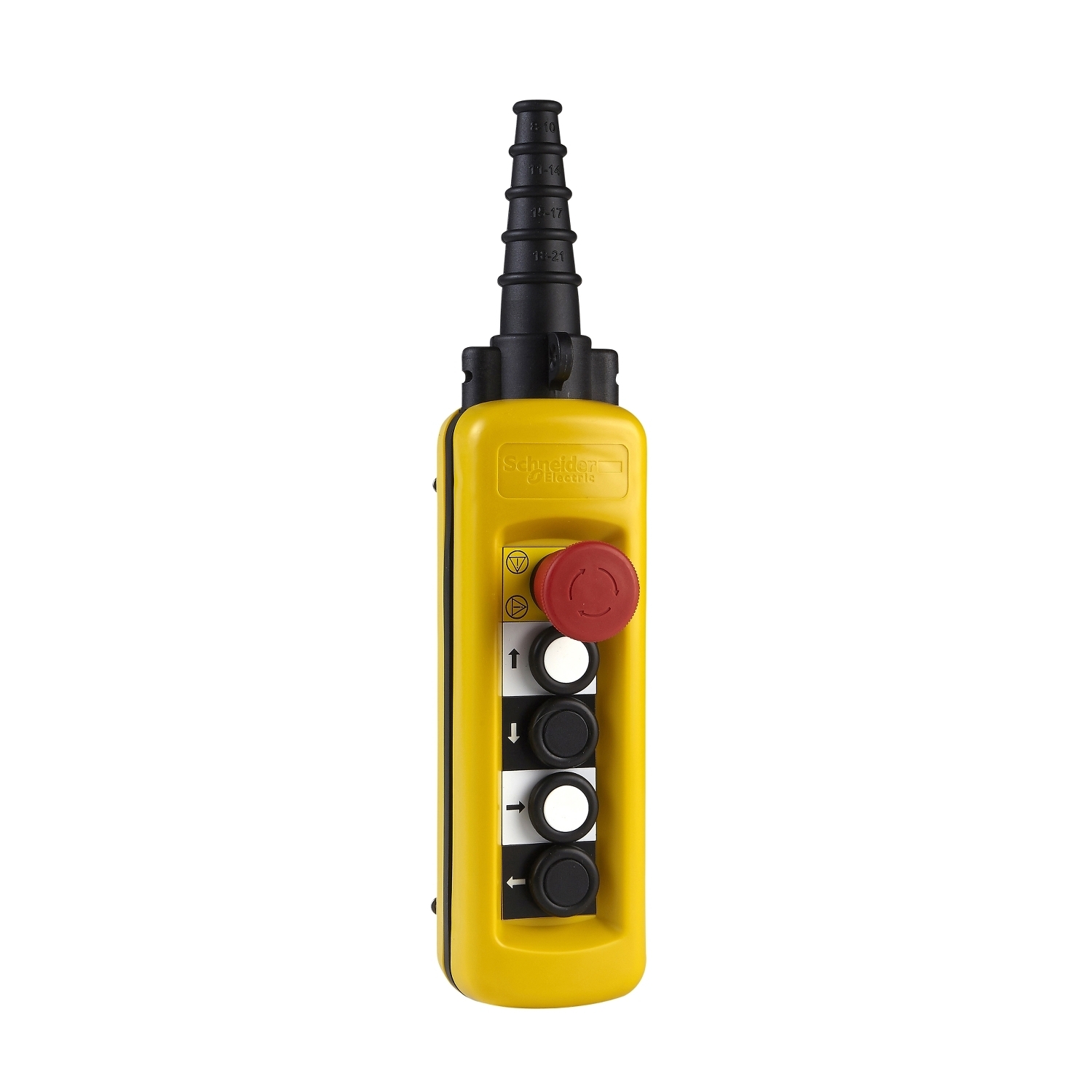

This Harmony XACA4812 is a pendant control station with 4 push buttons and Emergency stop for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Manuals and Documentation
| Catalog Number | XACA4812 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Control of single speed hoist motor;ZB2BE102 + ZB2BE101 for each direction;ZB2BE102 + ZB2BE101 for emergency stop;ZB2BE102;ZB2BE102 + ZB2BE101;Control circuit |
| Cable Entry | Rubber sleeve with stepped entry 8-26 mm |
| Connection | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end;screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Contact Rating | Slow-break |
| Enclosure | Polypropylene |
| Special Features | Complete ready for use;With mechanical interlocking between pairs |
| Standard | CCC;GOST;IK08 conforming to IEC 62262;UL 508;EN/ISO 13850: 2006;IEC 60947-5-5;IEC 60947-5-1;IEC 60204-32;CSA C22.2 No 14;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=674038&lang=en-us |
| GTIN | 03389110325751 |
| Item Type | Pendant control station;Double insulated |
