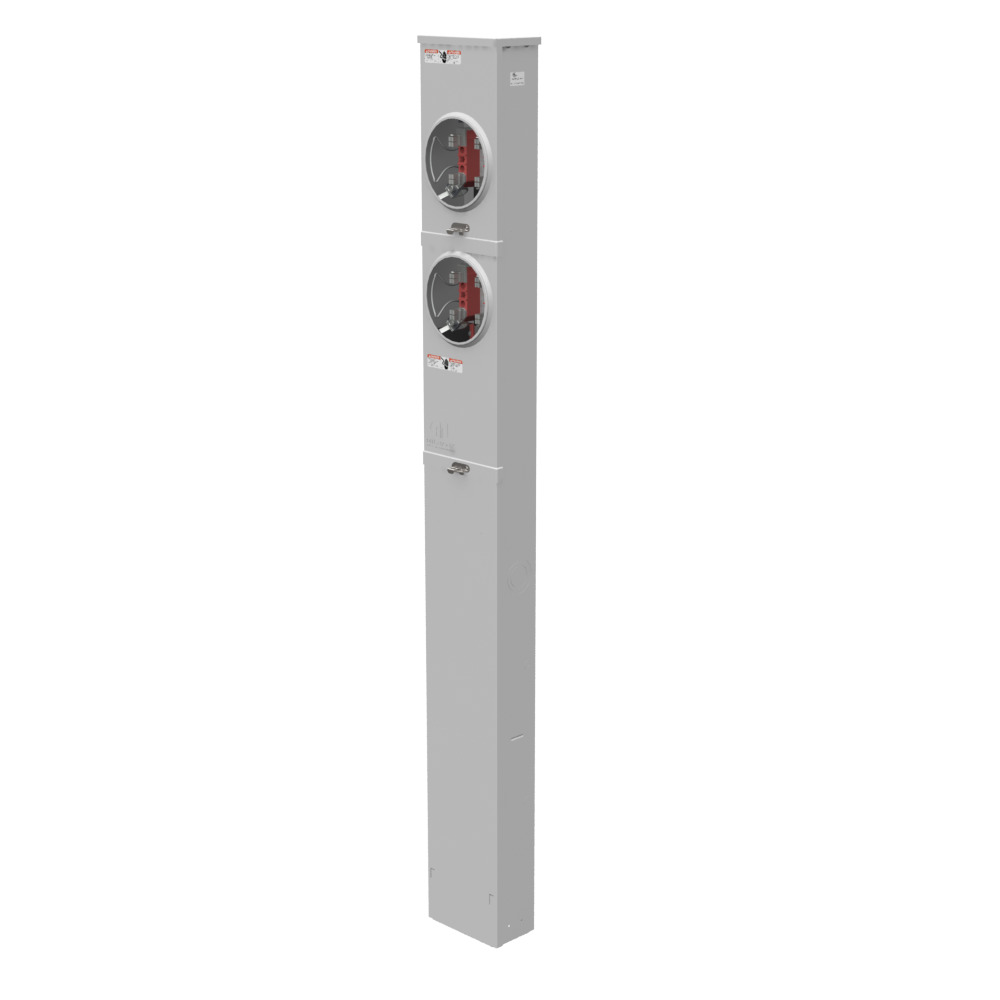

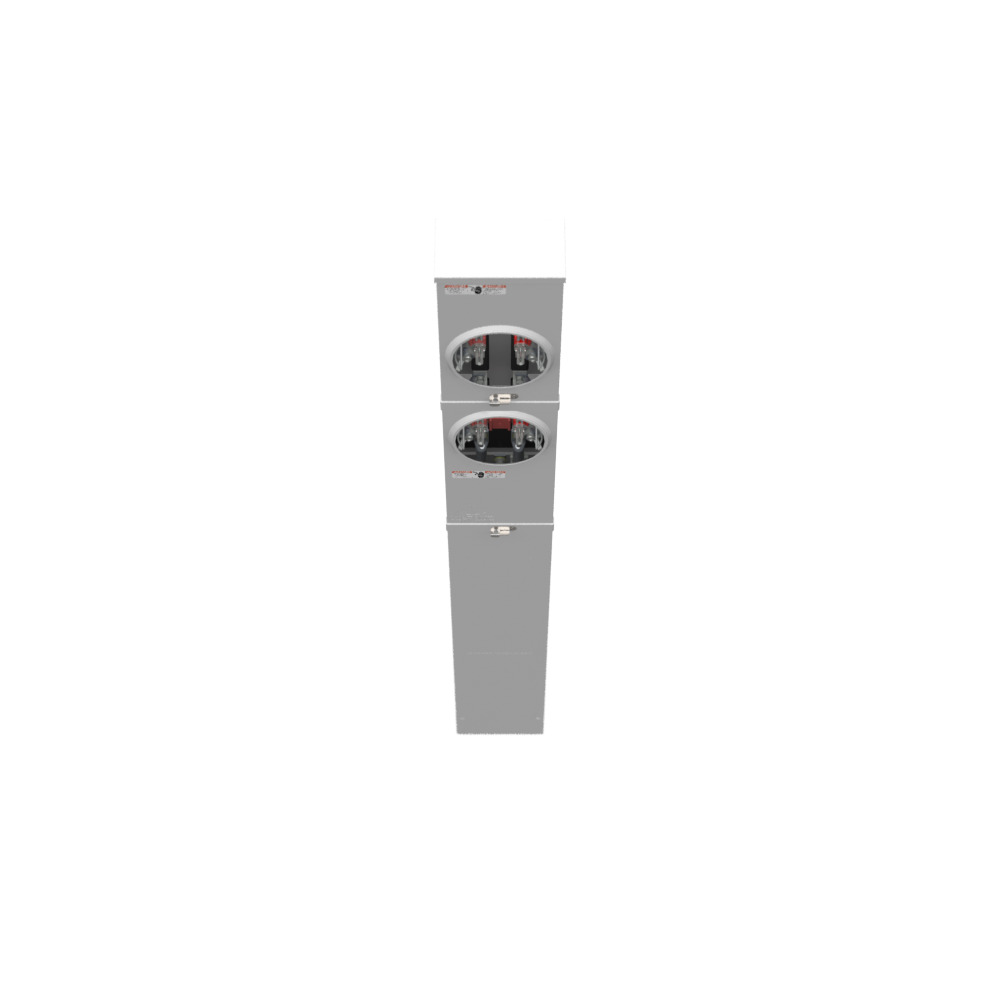

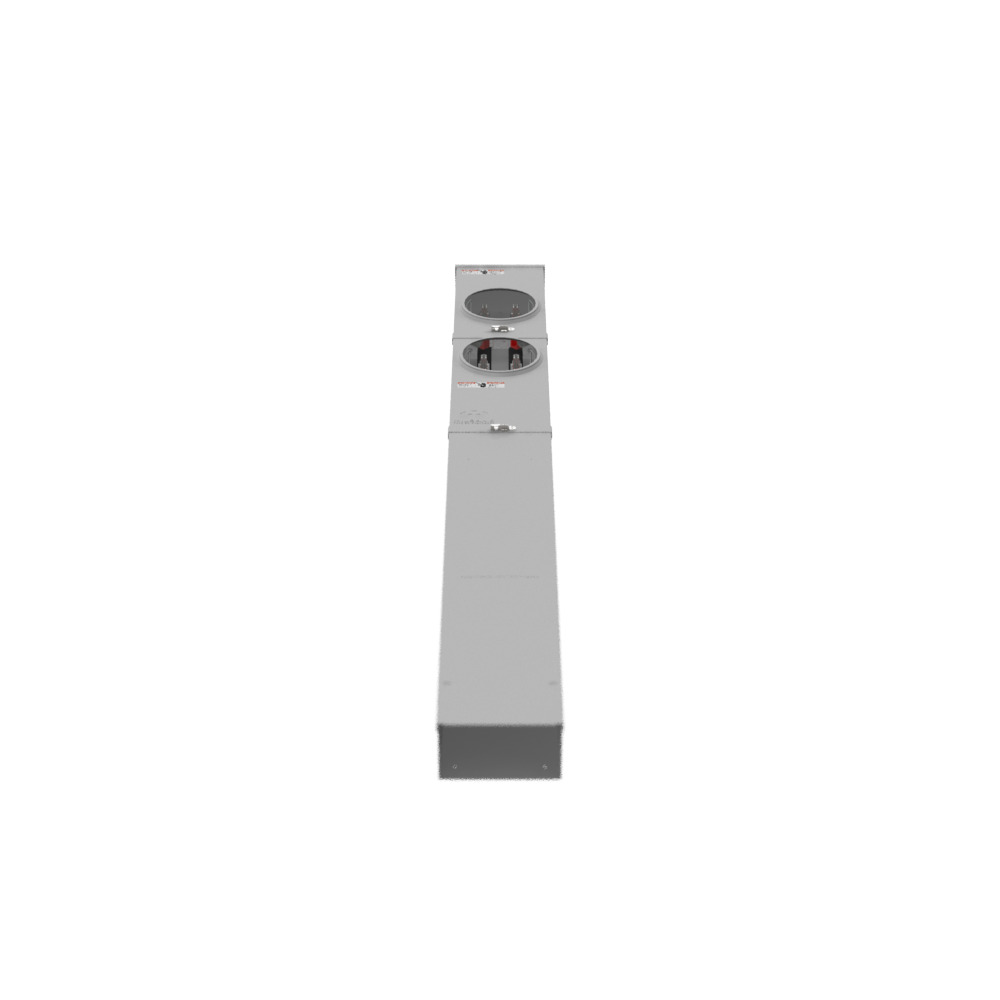

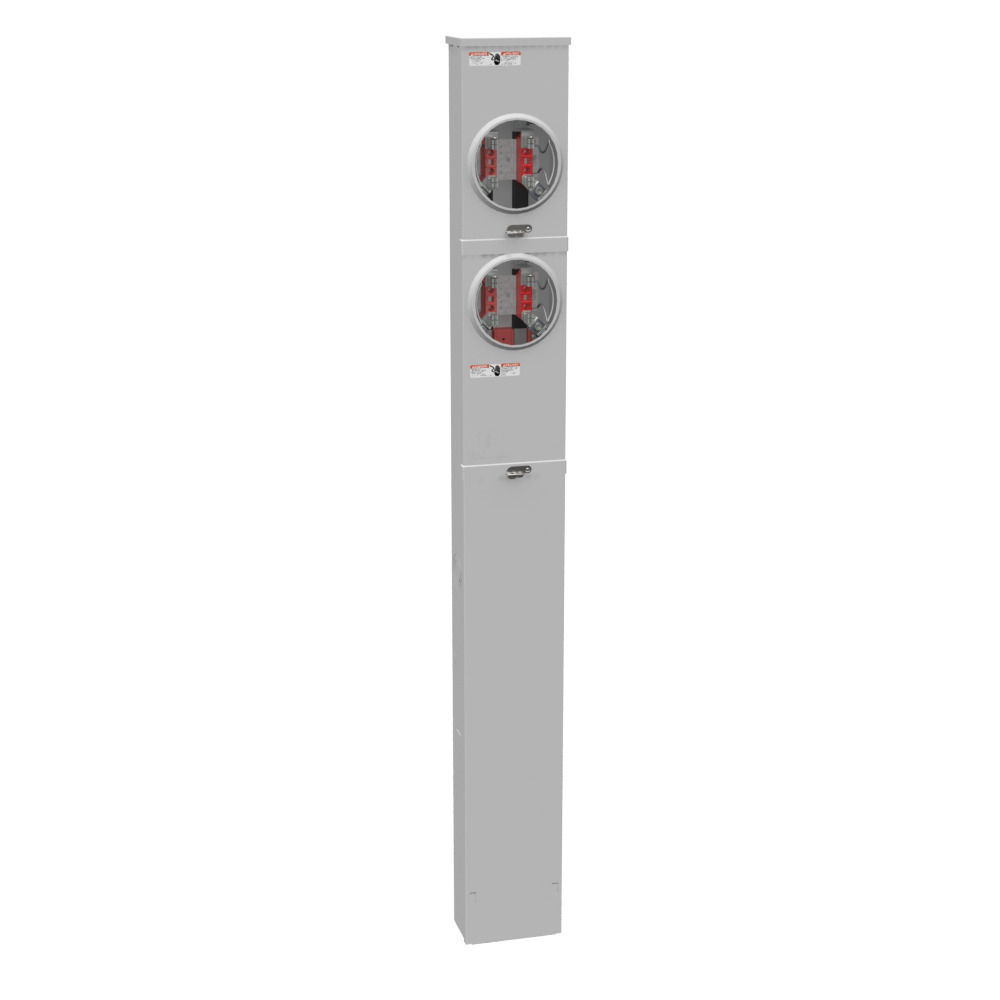

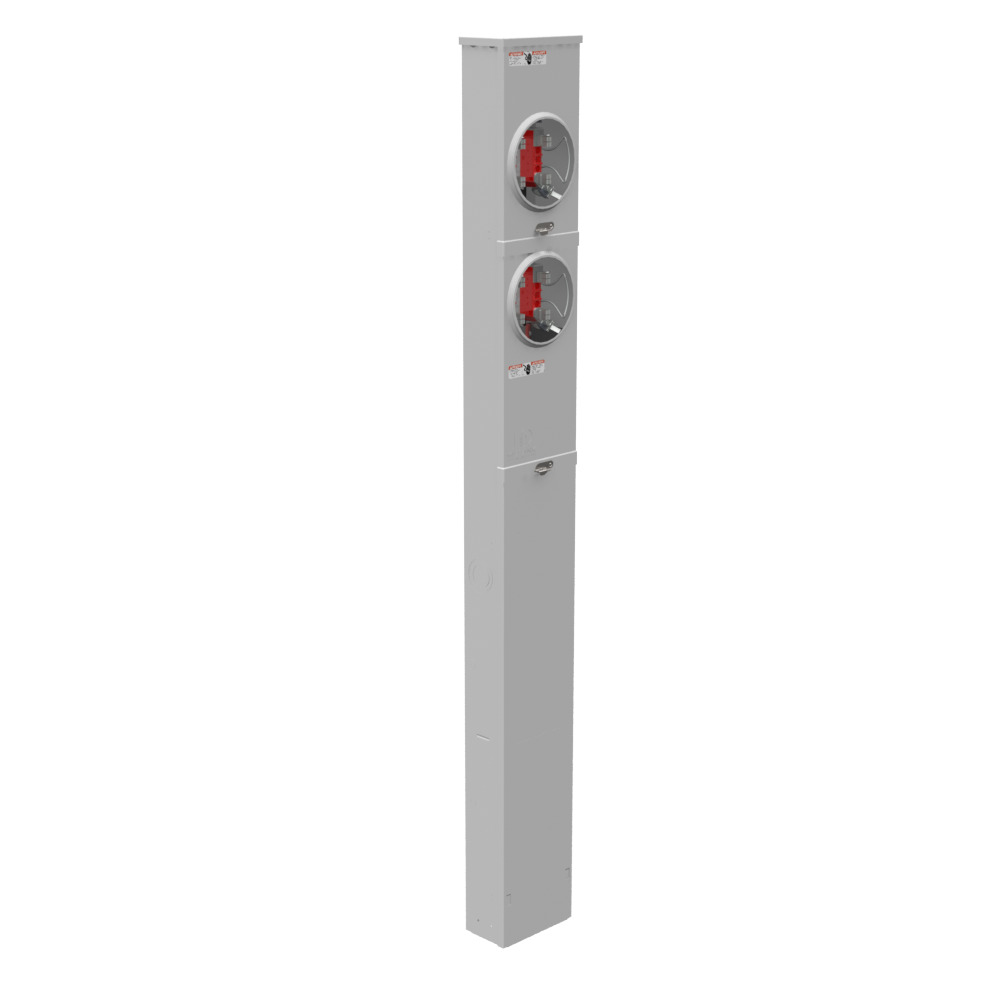

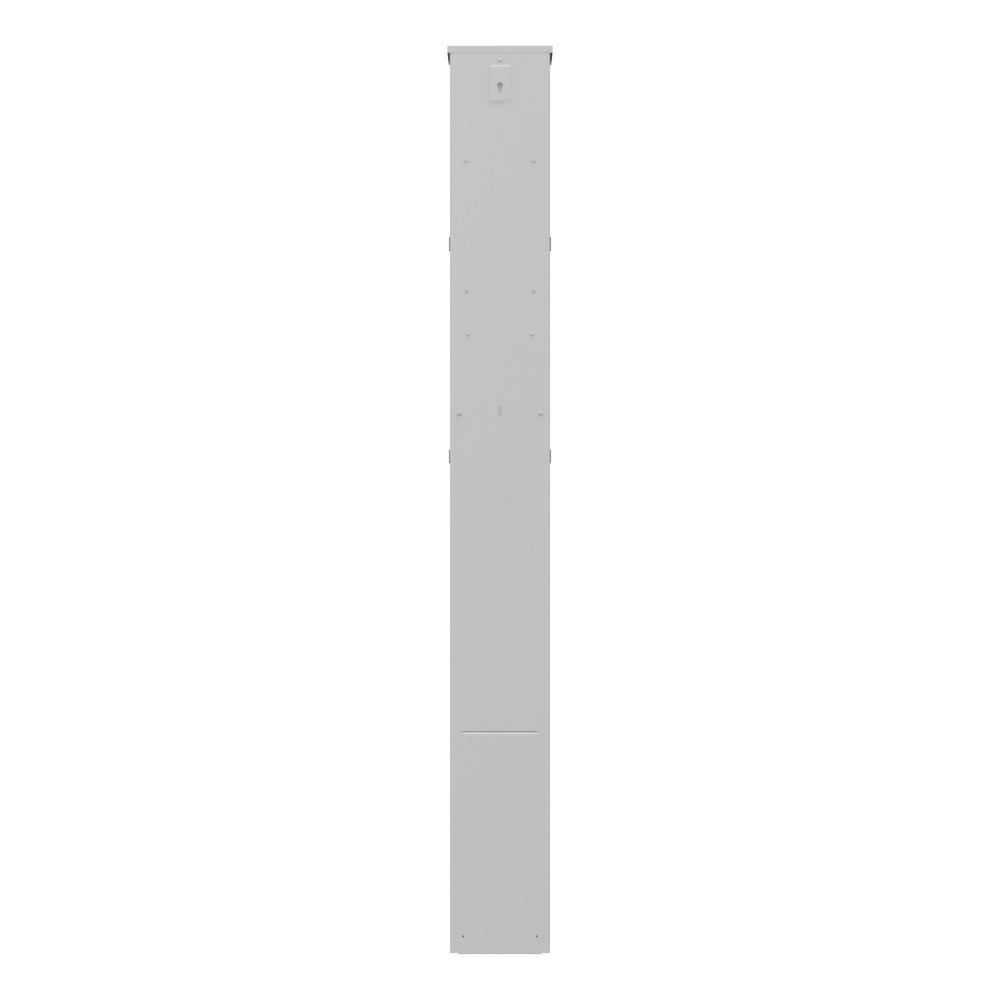

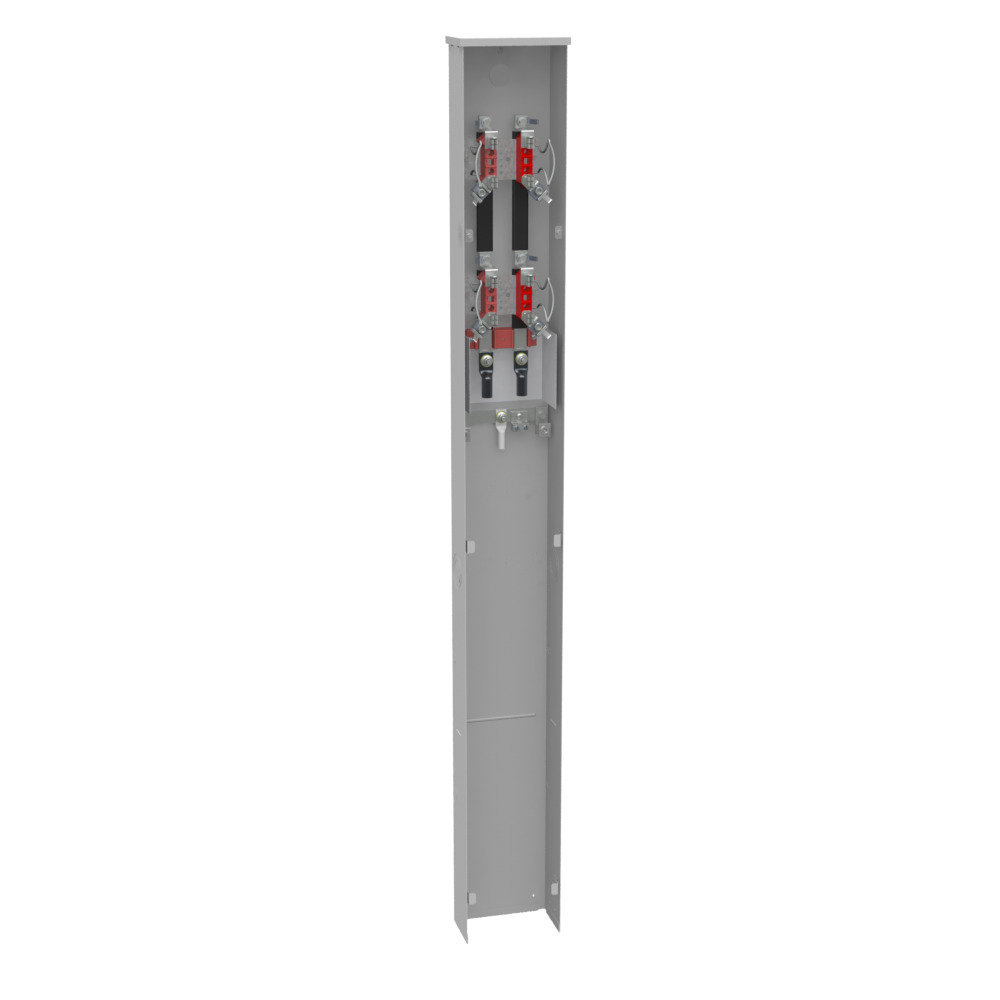

U8303-O-CECHA 4 Term, Ringless, Plain Top, Horn Bypass, 2 Position, Single Pedestal Direct Bury, Commonwealth Edison Chicago Housing Authority
- MFR:
- Milbank
- MFR #:
- U8303-O-CECHA
- UPC:
- 784572142237
- Item #:
- 1246145
U8303-O-CECHA 4 Term, Ringless, Plain Top, Horn Bypass, 2 Position, Single Pedestal Direct Bury, Commonwealth Edison Chicago Housing Authority
- MFR #:
- U8303-O-CECHA
- UPC:
- 784572142237
- Item #:
- 1246145
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,450.20
each
4 TERM RNGLS PLAIN TOP HRN BYPS 2 POS SGL PED DIR BURY COMMONWEALTH EDISON CHICAGO HOUSING AUTHORITY
Manuals and Documentation
| Catalog Number | U8303-O-CECHA |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket |
| Bypass Type | Horn |
| Cable Entry | Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Pedestal |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | Commonwealth Edison Chicago Housing Authority |
| Standard | UL Listed;Type 3R |
| UPC | 784572142237 |
| GTIN | 00784572142237 |
| Item Type | Ringless Meter Socket |
| Length | 4.5 |
| Length UOM | Inch |
| Width | 8.19 |
| Width UOM | Inch |
| Height | 74 |
| Height UOM | Inch |
| Size | 4.5L x 8.19W x 74H |
| Terminals | Single Mechanical |
| Voltage Rating | 600 Volts Alternating Current |
