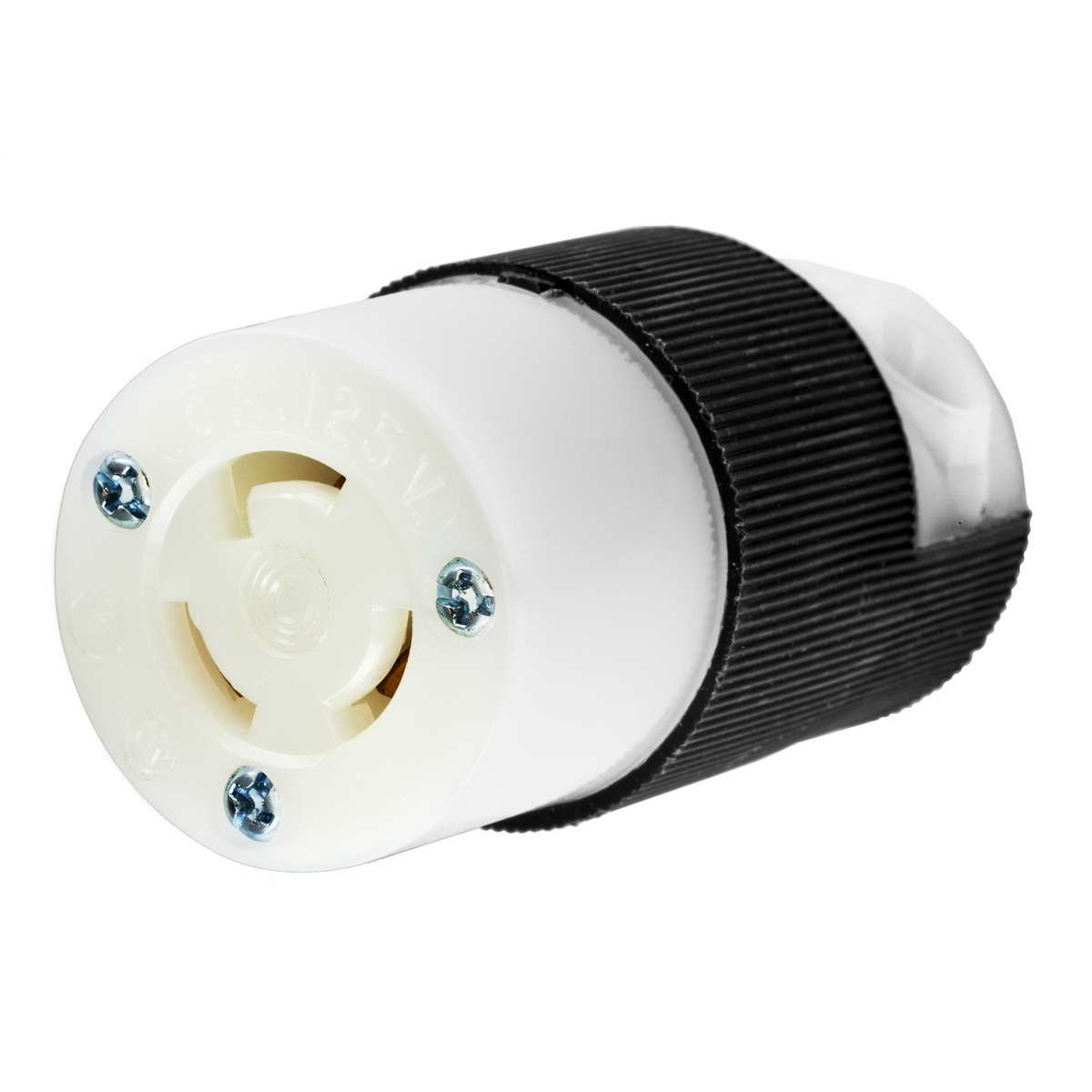

HBL4729C Grounding Heavy Duty Cord Mount Locking Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL4729C
- UPC:
- 783585171357
- Item #:
- 124584
HBL4729C Grounding Heavy Duty Cord Mount Locking Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/White
- MFR #:
- HBL4729C
- UPC:
- 783585171357
- Item #:
- 124584
Availability
| Location | Available Qty |
|---|---|
| Available | 104 ea |
$54.06
each
Manuals and Documentation
| Catalog Number | HBL4729C |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 15 |
| Application | Heavy Duty Industrial |
| Color | Black; White |
| Conductor Range | #14AWG to #12AWG |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| Material | Nylon |
| Mounting | Cord |
| NEMA Rating | 5 |
| Number of Conductors | 2-Wire Non-Grounding |
| Number of Poles | 2 |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UPC | 783585171357 |
| GTIN | 00783585171357 |
| Item Type | Connector Body |
| Size | 1.53 in x 1.53 in x 2.78 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 125 |
| Cross Reference Products | 4729-C, 4729-C |
