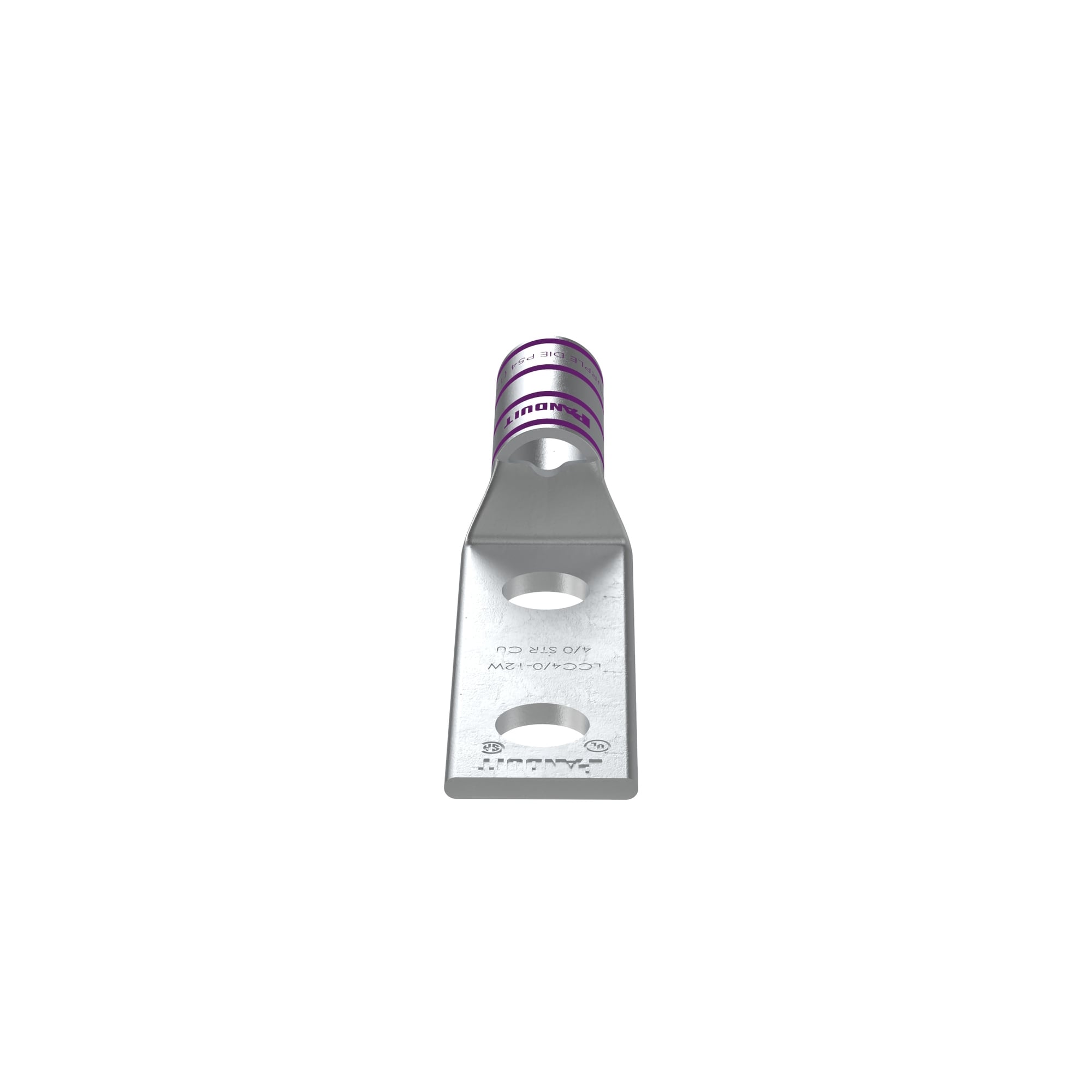

LCC4/0-12W-X Pan-Lug LCC-W 2-Hole Compression Lug Connector With Inspection Window, 4/0 AWG Stranded Copper Conductor, Die Code: P54, 1/2 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCC4/0-12W-X
- UPC:
- 074983819027
- Item #:
- 123885
LCC4/0-12W-X Pan-Lug LCC-W 2-Hole Compression Lug Connector With Inspection Window, 4/0 AWG Stranded Copper Conductor, Die Code: P54, 1/2 in Stud, Tin Plated Copper
- MFR #:
- LCC4/0-12W-X
- UPC:
- 074983819027
- Item #:
- 123885
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$26.4363
each
The LCC4/0-12W-X Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Manuals and Documentation
| Catalog Number | LCC4/0-12W-X |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Purple |
| Material | Tin-Plated Copper |
| Number of Holes | 2 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| UPC | 074983819027 |
| GTIN | 00074983819027 |
| Item Type | Compression Lug |
| Size | 4/0 AWG Code |
| Stud Size | 1/2 IN |
