Eaton

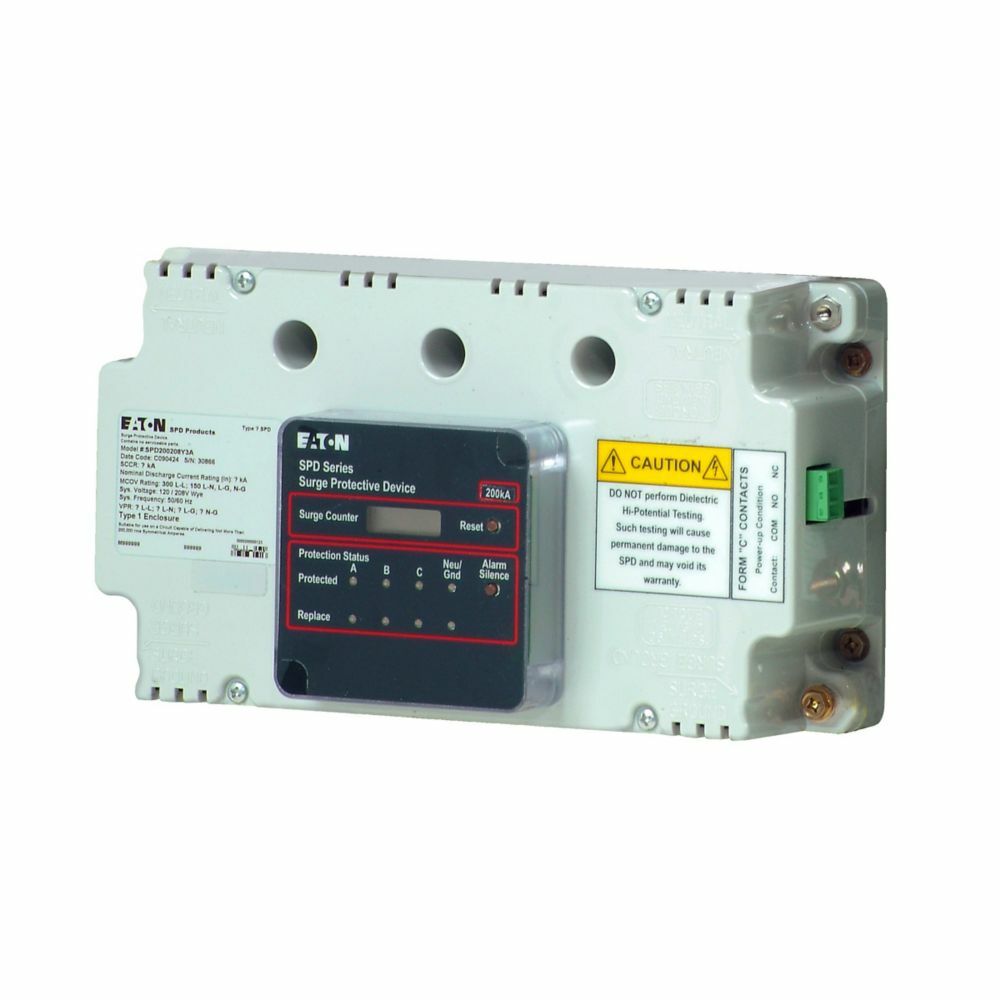

SPD120208Y2C Surge Protection Device, 120/208Y V AC, 50/60 Hz, 200 kA SCCR, 3 Phase

MFR:
Eaton
MFR #:
SPD120208Y2C
UPC:
786685322162
Item #:
1237616

Availability

Location Available Qty
Available Available to Order
$17,728.25 each

Eatons SPD Series offers the most advanced surge protection for industrial and commercial applications. It can be installed in two configurations: Direct integration into electrical assemblies or externally side-mounted to equipment. With an array of features, options, and configurations, there is a solution for all electrical applications, including service entrances, distribution switchboards, panelboards and point-of-use applications.

Catalog Number SPD120208Y2C
Manufacturer Eaton
Brand Eaton
Country of Origin United States
Made in USA Yes
Application Commercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - Aftermarket|Generation - Renewable Energy - Generation - Renewable Energy - Aftermarket|Datacenters - Data Centers - Aftermarket|Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other|Water and Wastewater Systems - Water/Wastewater Systems - Aftermarket|Other IT and Datacom - Other Infrastructures|Other IT and Datacom - Other IT & Datacom - Aftermarket|Ind Facilities & Factories - Industrial Facilities/Factories - Aftermarket
Frequency Rating 50/60 Hz
Short Circuit Rating 200 kA
Special Features Meets or exceeds the requirements specified in IBC ®2006, CBC2007, and UBC®Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Standard UL 1449 ,UL Listed
UPC 786685322162
GTIN 00786685322162
Item Type Surge protection device
Dimensions 9.5000 IN X 5.4000 IN X 3.4500 IN
Operating Temperature -40 to 50 Degrees C
Voltage Rating 120/208 wye (4W+G)
