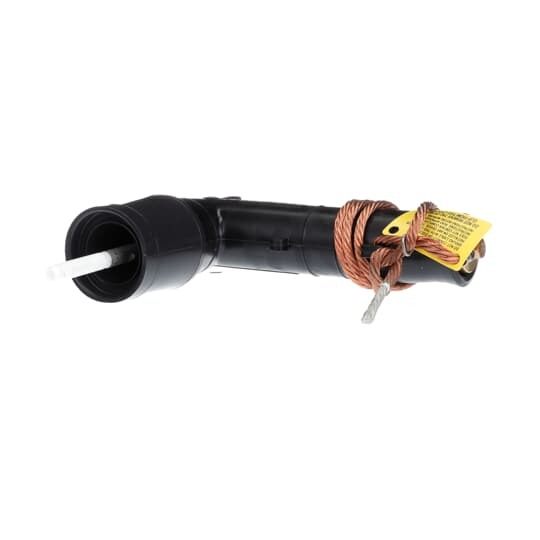

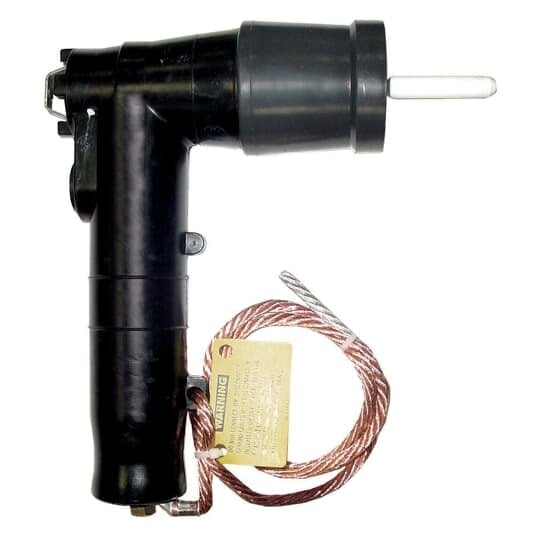

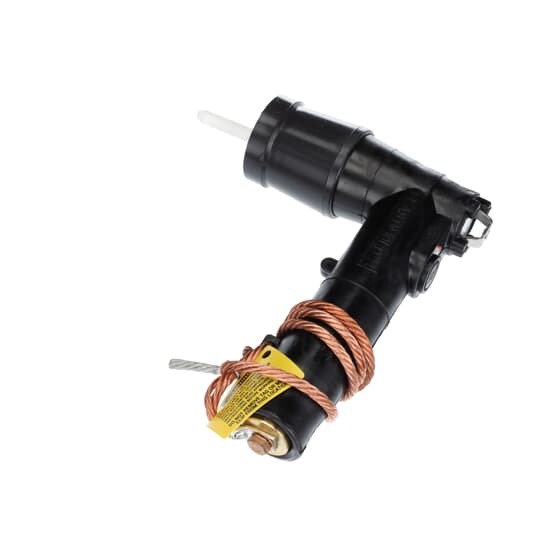

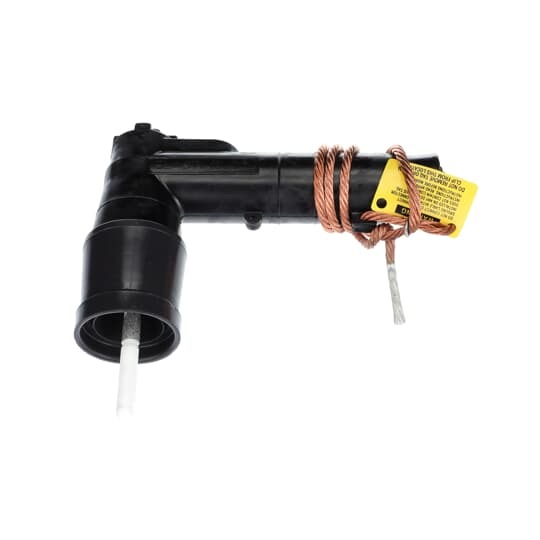

273ESA-18 Elastimold 273ESA Insulated Shielded Elbow Surge Arrester, 80.5 kV Max Discharge, EPDM Rubber, 15.3 kV RMS MCOV Surge protection, 200 A
- MFR:
- ABB - Installation Products
- MFR #:
- 273ESA-18
- UPC:
- 783786627844
- Item #:
- 123734
273ESA-18 Elastimold 273ESA Insulated Shielded Elbow Surge Arrester, 80.5 kV Max Discharge, EPDM Rubber, 15.3 kV RMS MCOV Surge protection, 200 A
- MFR #:
- 273ESA-18
- UPC:
- 783786627844
- Item #:
- 123734
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$567.56
each
Manuals and Documentation
| Catalog Number | 273ESA-18 |
| Manufacturer | ABB - Installation Products |
| Brand | Elastimold |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Underground Medium Voltage Applications |
| Connection | Push-In |
| Insulation | EPDM Rubber |
| Material | Housing - EPDM Rubber |
| Special Features | Equipped with a Fully Rated 200 Amp Switching and Fault-Close Loadbreak Bushing |
| Standard | ANSI/IEEE Standard 386, IEEE C62.11-2012 |
| UPC | 783786627844 |
| GTIN | 00783786627844 |
| Item Type | Elbow Surge Arrestor |
| Size | Length to Center of Bushing 9.36 inch, Width 7.42 inch |
| Environmental Conditions | All Weather Conditions, UV Resistant |
| Operating Temperature | -40 to +65 C |
| Voltage Rating | 25 kV |
