Appleton

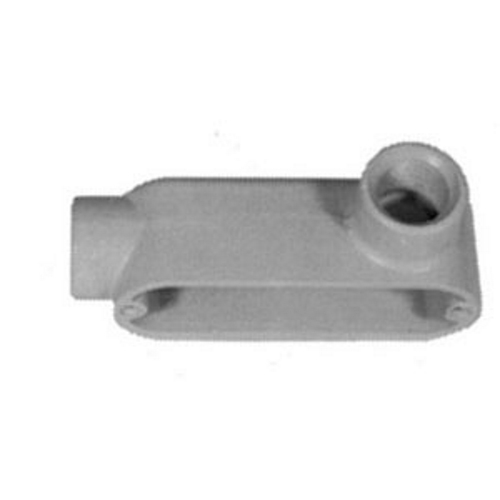

Type LR Conduit Body, 2-1/2 inch, Aluminum, Epoxy Powder Coated

MFR:
Appleton Electric
MFR #:
LR250A
UPC:
781381118385
Item #:
123572

Availability

Location Available Qty
Available Available to Order
$502.35 each

Form 85 UNILETS Type LR Conduit Outlet Body, Hub Size: 2-1/2 IN, Form: 85, Length: 13.69 IN, Width: 5-3/4 IN, Material: Sand Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File

Manuals and Documentation
Catalog Number LR250A
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT
Connection Tapered Female Threaded
Finish Epoxy Powder Coat
Form 85
Hub Size 2-1/2 IN
Material Sand Cast Aluminum
Special Features Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 140.5 CU-IN as per NEC 314.16(A)
Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381118385
GTIN 00781381118385
Item Type Type LR Conduit Outlet Body
Length 13.69
Length UOM Inch
Width 5-3/4
Width UOM Inch
