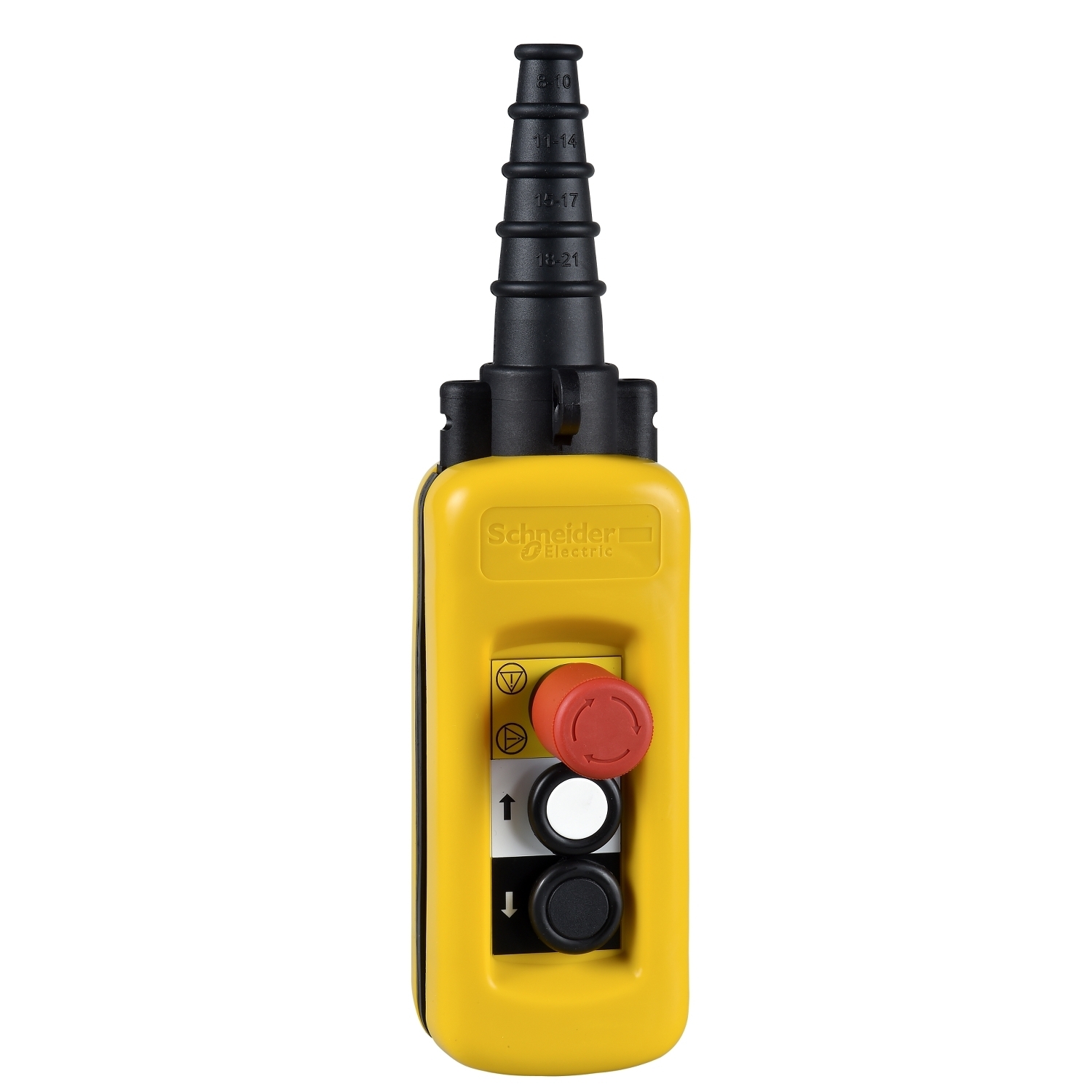

XACA2713H7 Control Station, 600 V, 10 A, NO-NC Contact
- MFR:
- Schneider Electric
- MFR #:
- XACA2713H7
- Item #:
- 1233999
XACA2713H7 Control Station, 600 V, 10 A, NO-NC Contact
- MFR #:
- XACA2713H7
- Item #:
- 1233999
Manuals and Documentation
| Catalog Number | XACA2713H7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Control of single speed hoist motor;ZB2BE101 for each direction;Control circuit |
| Cable Entry | Rubber sleeve with stepped entry 8-26 mm |
| Connection | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end;screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Contact Rating | Slow-break |
| Enclosure | Polypropylene |
| Special Features | Complete ready for use;With mechanical interlocking |
| Standard | UL;CSA;CCC;GOST;IK08 conforming to EN 50102;CSA C22.2 No 14;EN/IEC 60947-5-1;EN/IEC 60204-32;UL 508;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=674274&lang=en-us |
| GTIN | 03389118117563 |
| Item Type | Pendant control station;Double insulated |
