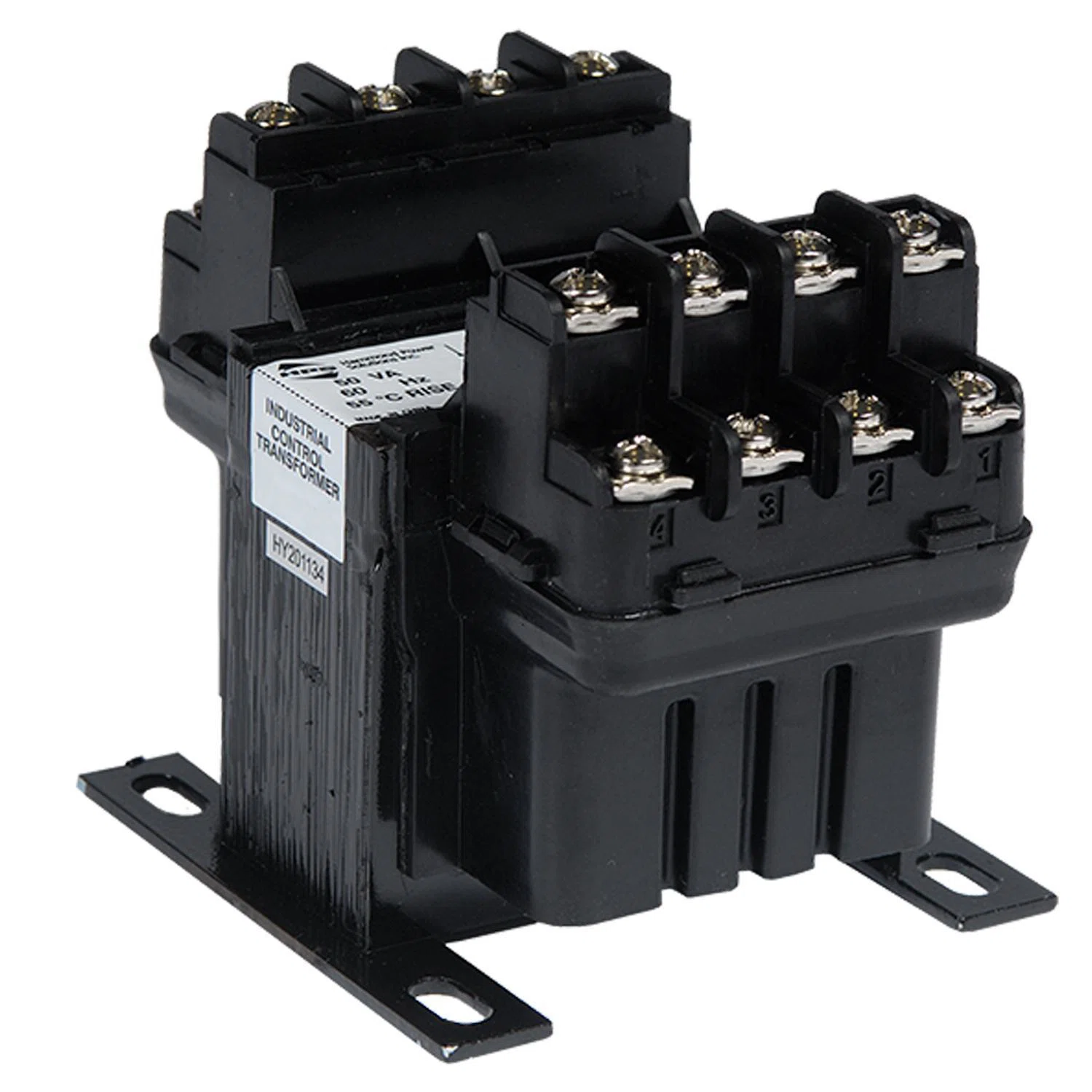

PH100QR Imperator Industrial Molded Open Style Control Transformer, 240/480 V AC Primary, 12/24 VAC Secondary, 100 VA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- Hammond Power Solutions
- MFR #:
- PH100QR
- UPC:
- 803423062699
- Item #:
- 123270
PH100QR Imperator Industrial Molded Open Style Control Transformer, 240/480 V AC Primary, 12/24 VAC Secondary, 100 VA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- PH100QR
- UPC:
- 803423062699
- Item #:
- 123270
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$259.51
each
The HPS Imperator™ series of machine tool rated industrial control transformers are specifically designed to meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used.
Manuals and Documentation
Features
- Constructed with high quality silicon steel laminations that provide optimum performance and reliability
- Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
- Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
- Combination slot/Philips #6 screw, complete with SEMS washer termination
- Optional finger safe terminal covers available on all units
- Terminal connection numbers molded into terminal block and correspond to nameplate and wiring diagrams, make connecting the HPS Imperator quick and simple
- SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
- Innovative terminal block design provides for easy hook-up and installation of fuse clip
- Custom injection molded coil cover with its unique "fin shaped" design combine superior cooling properties with a clean, bold look
- 240 x 480, 230 x 460, 220 x 440 V primary volt
- 12 x 24, 11.5 x 23, 11 x 22 V secondary volt
- Encapsulated copper wound coils encased in a custom injection molded cover
- Secondary fuse clips, fuse clip mounting screws and primary and secondary voltage links/jumpers supplied with transformers
- 40 deg C maximum
| Manufacturer Part Number | PH100QR |
| Brand | HPS |
| Manufacturer | Hammond Power Solutions |
| UPC | 803423062699 |
| Country Of Origin | CN |
| Dimensions | 3.25 in L x 4.19 in W x 3.63 in H |
| Mounting Type | Panel |
| Series | Imperator® |
| Temperature Rating | 30 deg C |
| Type | Industrial Molded Open Style |
| Manufacturer Item Status | Discontinued |
| Country | USA/Canada |
| Warranty | Life time |
| Standards Approvals | UL Listed | cULus Listed | RoHS Compliant |
| Application | Automation, Panel Shops, Machines, Panel Boards, Solenoids, Control and Timer Applications |
| Connection Type | Screw |
| Frequency Rating | 50/60 Hz |
| Insulation | 105 deg C |
| Maximum Amperage Rating | 8.33/4.17 A |
| Phase | 1 |
| Power Rating | 100 |
| Primary Voltage | 240/480 V AC |
| Secondary Voltage | 12/24 V AC |
