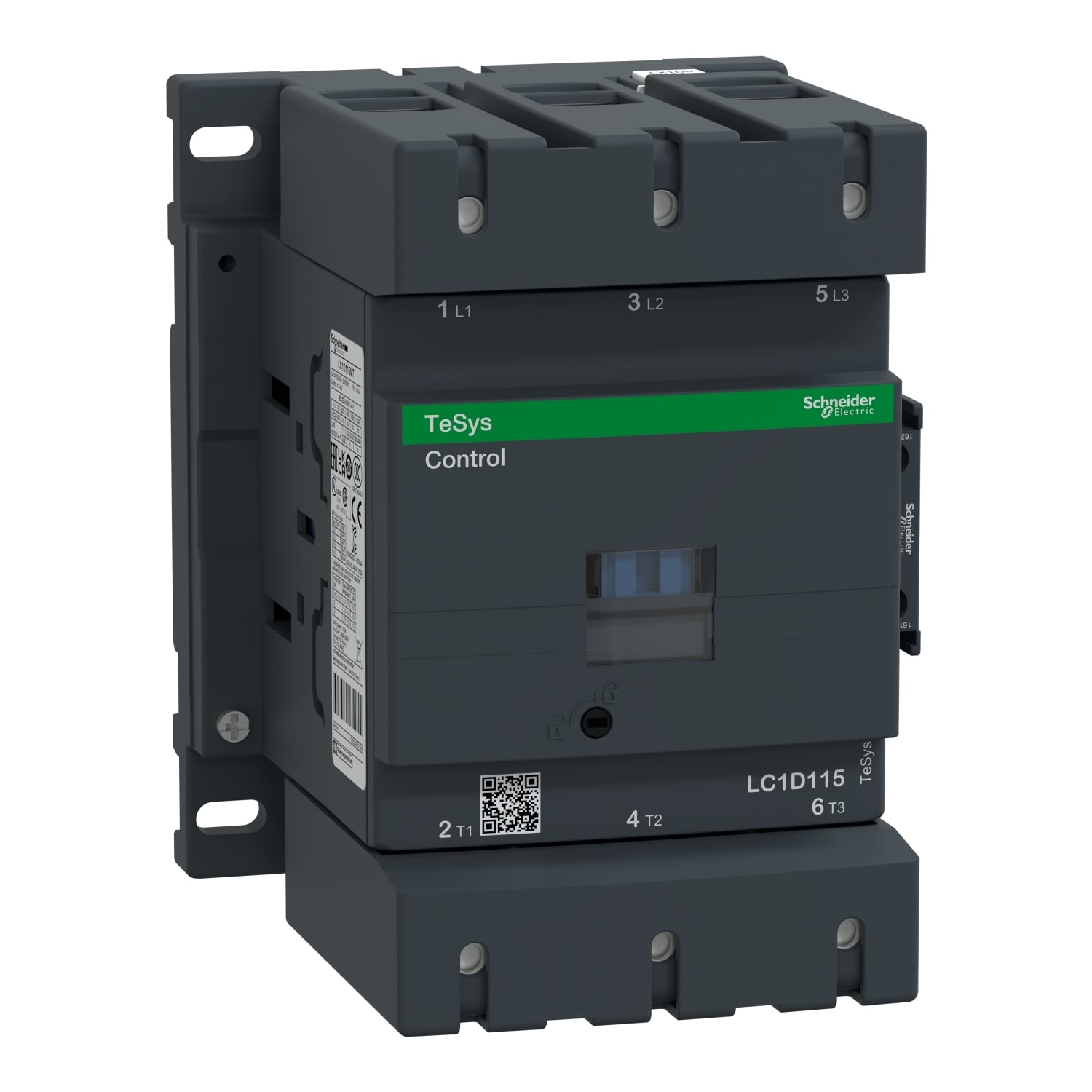

LC1D115P7 TeSys D LC1D Non-Reversing IEC Contactor With Safety Cover, 230 V AC V Coil, 115/200 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D115P7
- Item #:
- 123152
LC1D115P7 TeSys D LC1D Non-Reversing IEC Contactor With Safety Cover, 230 V AC V Coil, 115/200 A, 3NO Contact, 3 Poles
- MFR #:
- LC1D115P7
- Item #:
- 123152
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$771.15
each
IEC contactor, TeSys D, nonreversing, 115A, 75HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 230VAC 50/60Hz coil, open
Manuals and Documentation
| Catalog Number | LC1D115P7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Motor control;resistive load |
| Coil Voltage | 230 V AC 50/60 Hz |
| Connection | Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end;power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end;power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end;power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end;power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end;power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end;power circuit: connector 2 10-50 mm² - cable |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Built-in bidirectional peak limiting diode suppressor |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=612722&lang=en-us |
| GTIN | 03389110377224 |
| Item Type | Contactor |
