Appleton

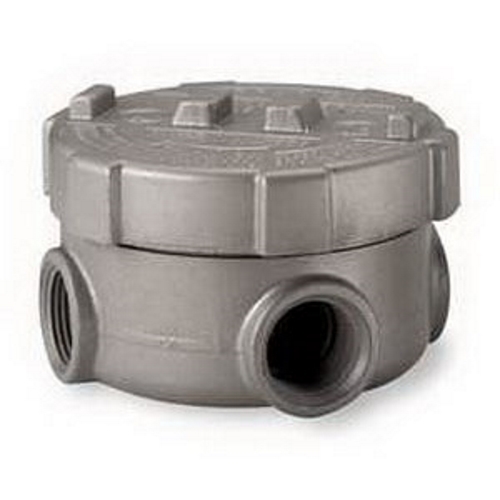

Round Conduit Body, 1 inch, Aluminum, Epoxy Powder Coated

MFR:
Appleton Electric
MFR #:
GRU100-A
UPC:
781381117111
Item #:
123053

Availability

Location Available Qty
Available Available to Order
$213.91 each

UNILETS GRU Universal Outlet Box, Number Of Outlet: 5, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 1 IN, Cable Entry: (5) 1 IN Hub, Cubic Capacity: 17.5 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Heigh

Manuals and Documentation

Features

  • Explosion proof
  • Dust-Ignition proof
  • For use with threaded metal conduit
  • UL listed
  • CSA certified
Catalog Number GRU100-A
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit
Cable Entry (5) 1 IN Hub
Cubic Capacity 17.5 CU IN
Knockouts No
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Special Features Explosionproof, dust-ignitionproof; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with internal ground screw, epoxy powder coat cover; General purpose wiring; Universal design with five threaded universal hubs and three close-up plugs; Copperfree aluminum body and cover provide resistance to corrosive atmospheres; Internally threaded body and externally threaded cover with O-ring for raintight fit, NEMA 3, 4; Covers have pry notches for bar or wrench; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant: ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
Standard UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
RoHS Indicator Contact Manufacturer
UPC 781381117111
GTIN 00781381117111
Item Type GRU Universal Outlet Box
Length 5.2000
Length UOM Inch
Width 5.2000
Width UOM Inch
Height 4.6000
Height UOM Inch
Weight 0.920
Weight UOM Pounds
Size 1
