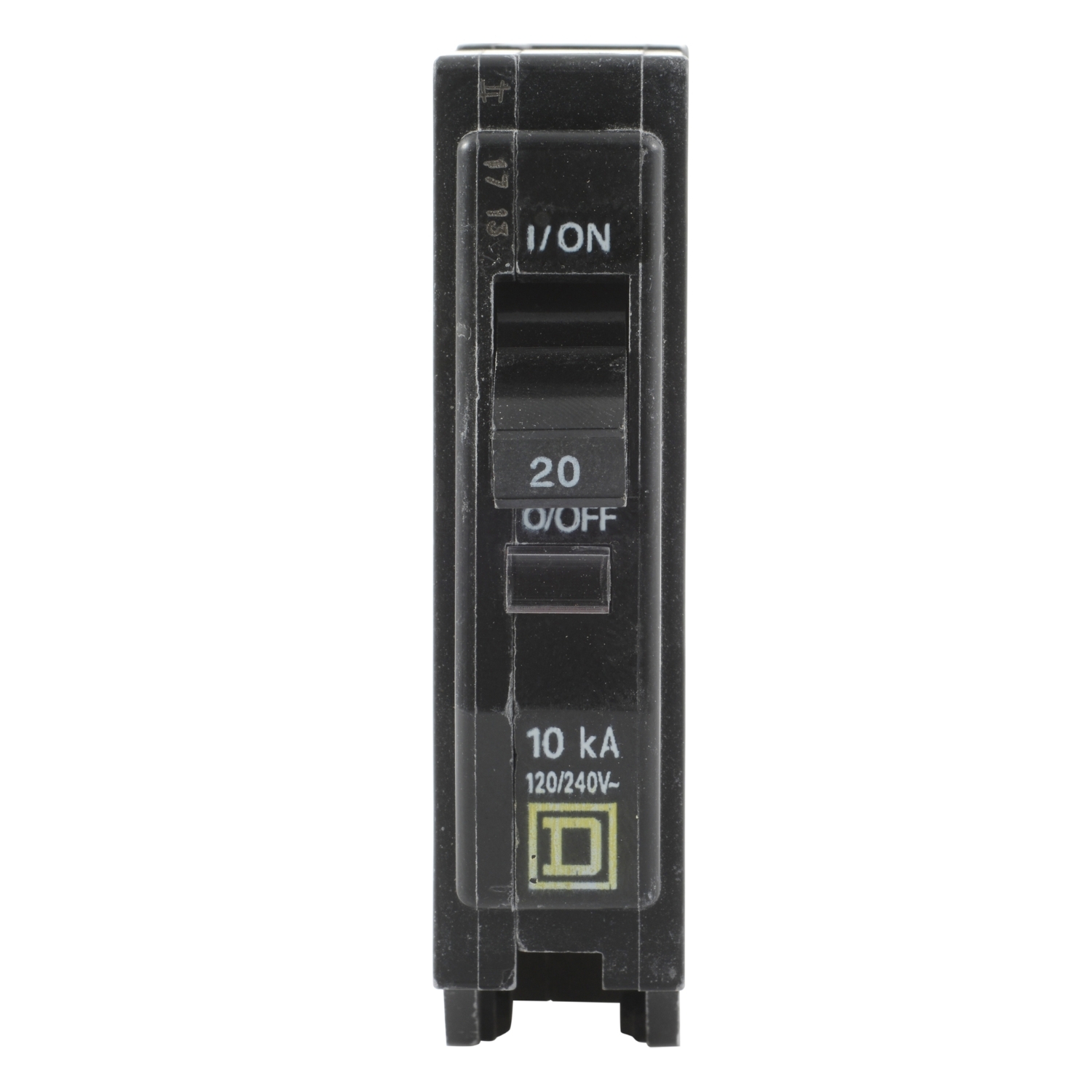

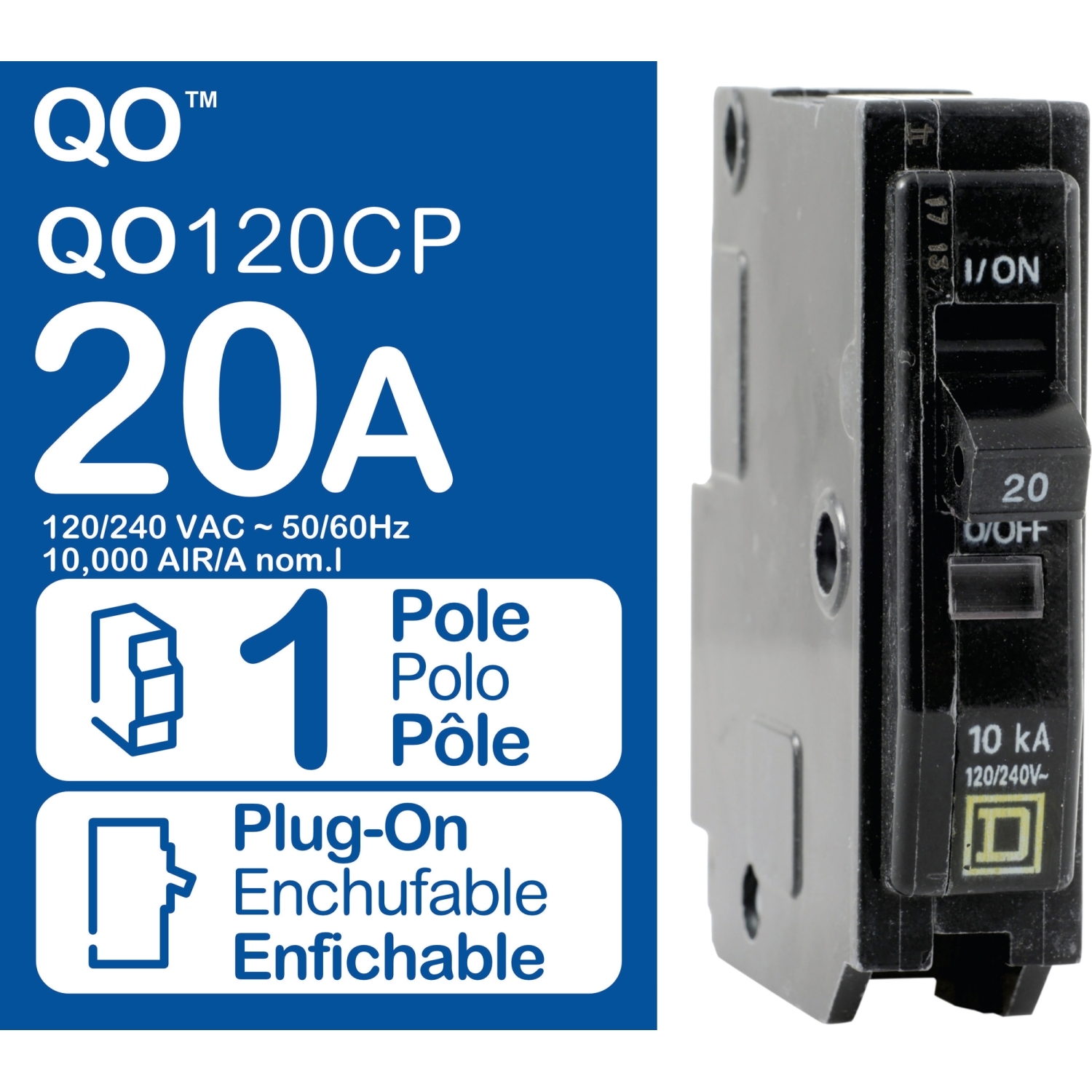

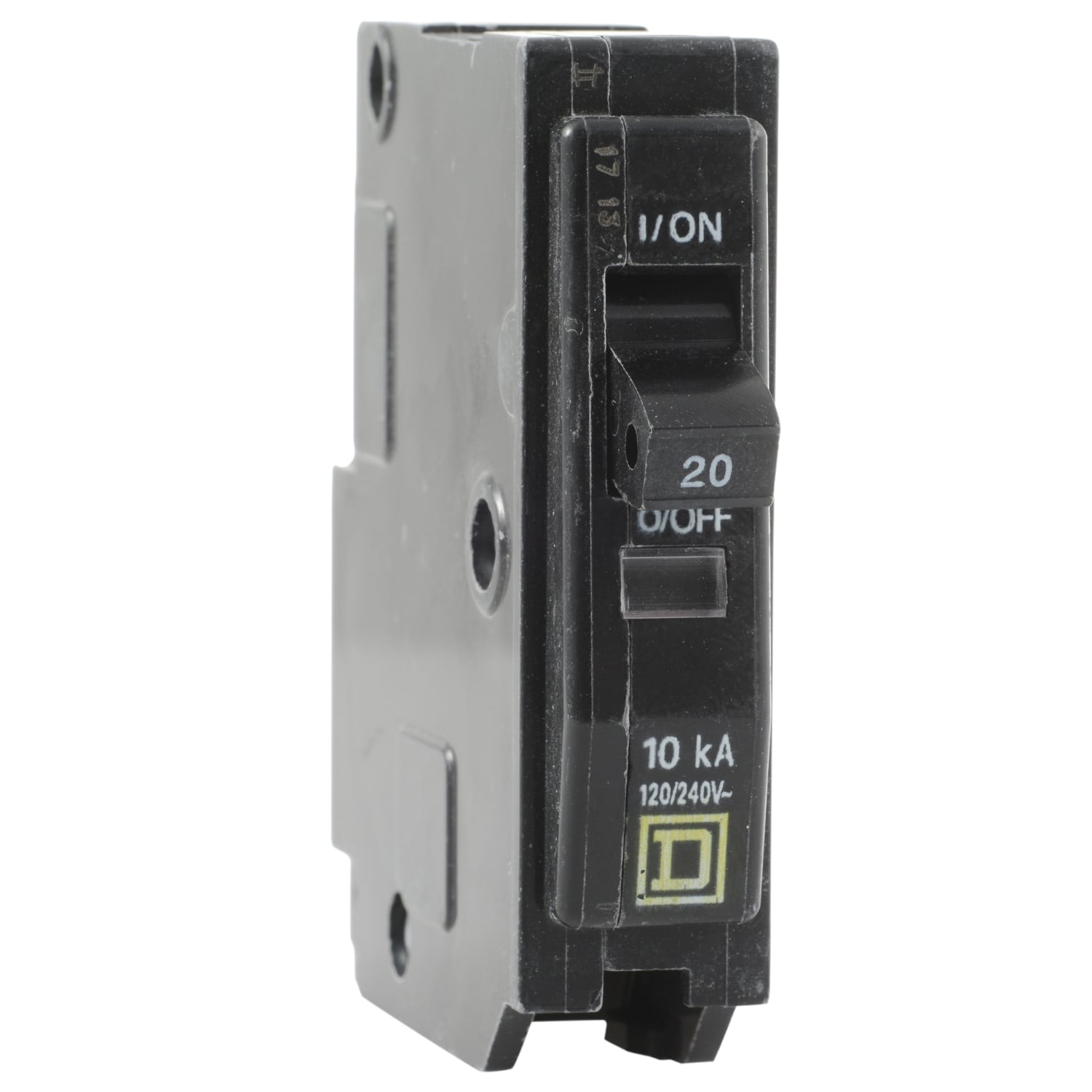

QO120CP Low Voltage Circuit Breaker, 20 A, 10 kA at 120/240 VAC/ 10 kA at 120 VAC Interrupt, 1 Poles

MFR:
Schneider Electric
MFR #:
QO120CP
UPC:
047569837999
Item #:
1227309

Availability

Location Available Qty
Available Available to Order
$26.65 each

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is a consumer pack.

Manuals and Documentation
Catalog Number QO120CP
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=360067&lang=en-us
UPC 047569837999
GTIN 00047569837999
