SolaHD

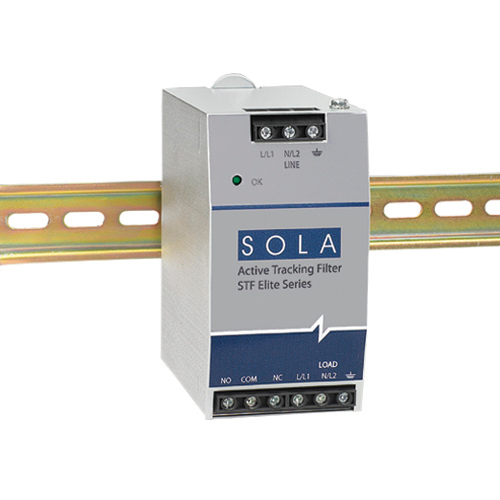

STFE050-24L STFE Elite Active Tracking Filter With Surge Protection, 240 V AC, 5 A, 47 to 63 Hz, 2 W + Ground Wires

MFR:
SolaHD
MFR #:
STFE050-24L
UPC:
783472029150
Item #:
1226365

Availability

Location Available Qty
Available Available to Order
$1,084.33 each
Manuals and Documentation
Catalog Number STFE050-24L
Manufacturer SolaHD
Brand SolaHD
Country of Origin Mexico
Made in USA No
Application Control Panels, Factory Automation Installations, Point of Use Industrial Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools Equipment
Connector Screw Terminal Connections, 10-16 AWG, IP20
Enclosure Metal
Frequency Rating 47-63
Input 120, Single Phase
Mounting Din Rail
Special Features Series connected DIN Rail mounted filter, Durable metal mount clip, UL Listed surge current capacity -45,000 Amps, Transient protection in all modes (L-N, L-G, and N-G), Single phase applications up to 20 Amp, Operating temperature from -40 DEG C to +50 DEG C, Screw terminal connections, Reliable and convenient screw clamp connections accept 10-16 AWG wire and meet IP20 specifications for ingress protection, LED status indication, Form C contact for remote monitoring
Standard cULus Recognized Component: UL 1449, 3rd Edition, Type 4 locations, UL 1283, CSA C22.2 No. 8; CE rated: EN 61643-11:2002, RoHS Compliant
UPC 783472029150
GTIN 00783472029150
Item Type STFE Elite Series - Active Tracking Filters with Surge Protection
Length 4.56
Width 2.56
Height 4.88
Cross Reference Products Eaton AGSHWCH230L05XS|Eaton APF230L05|EmersonPwr IE205|Rockwell 4983DC24005|Rockwell 4983PF24005|SolaHD STFE050-24L|SolaHD STFV050-24L
