Hubbell Wiring Device - Kellems

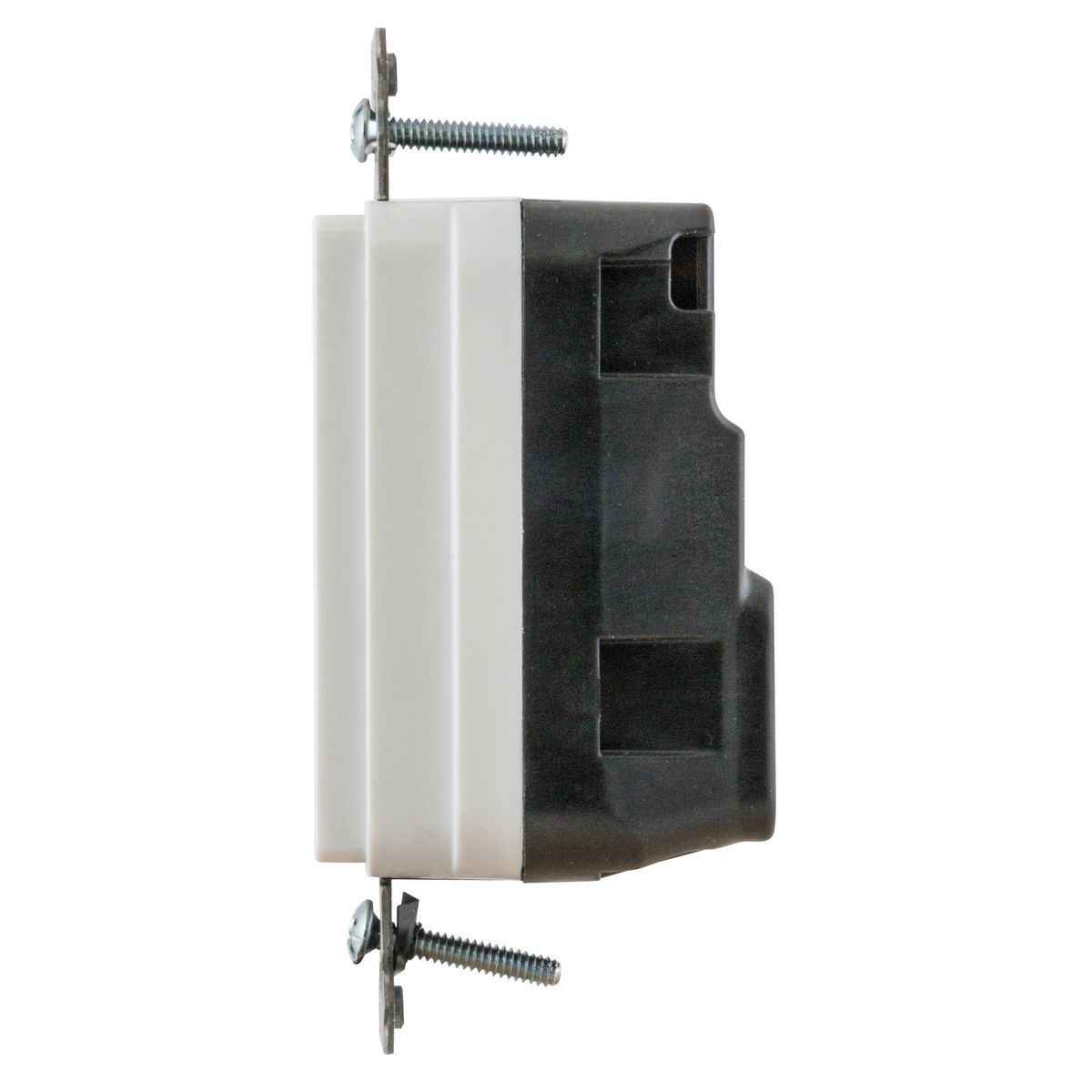

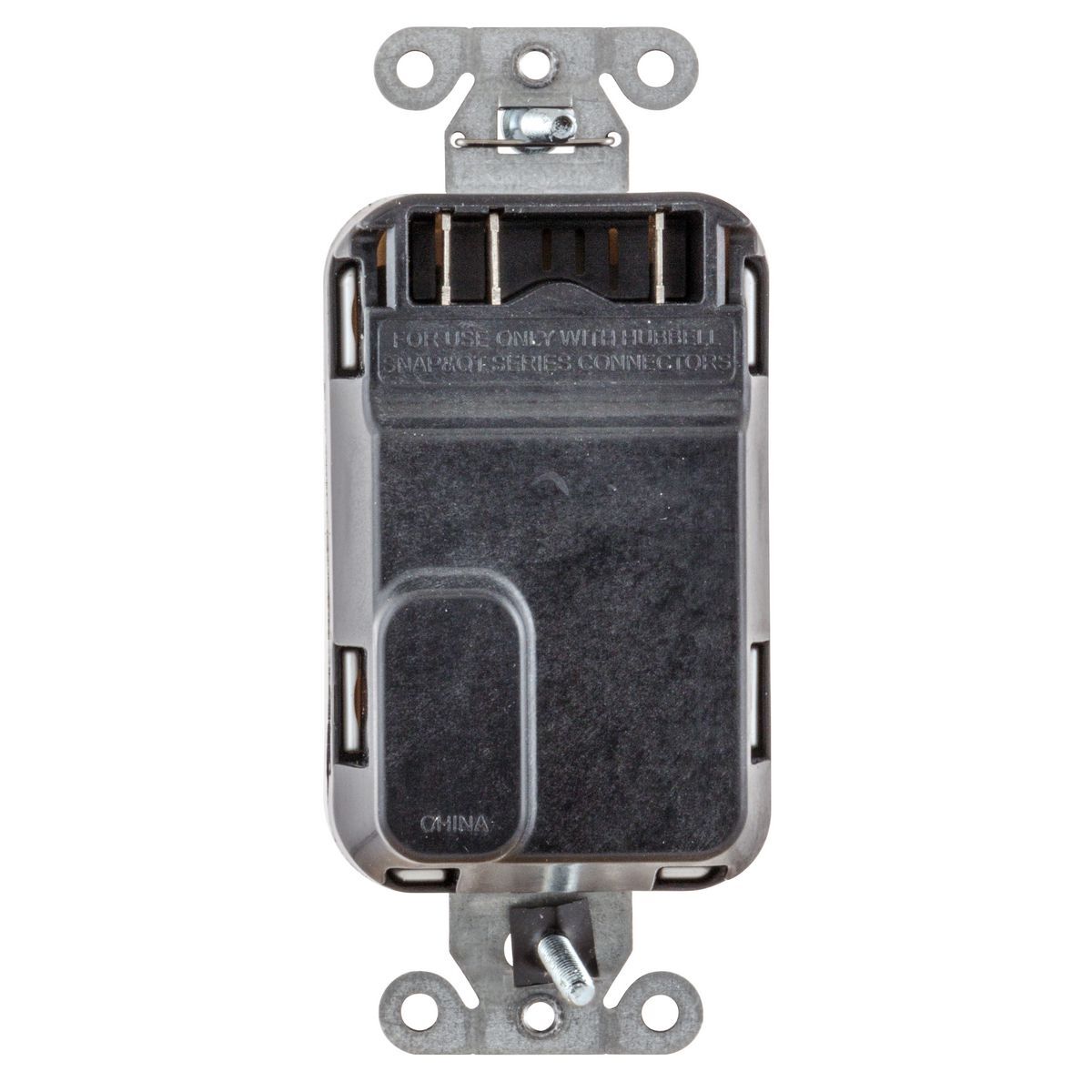

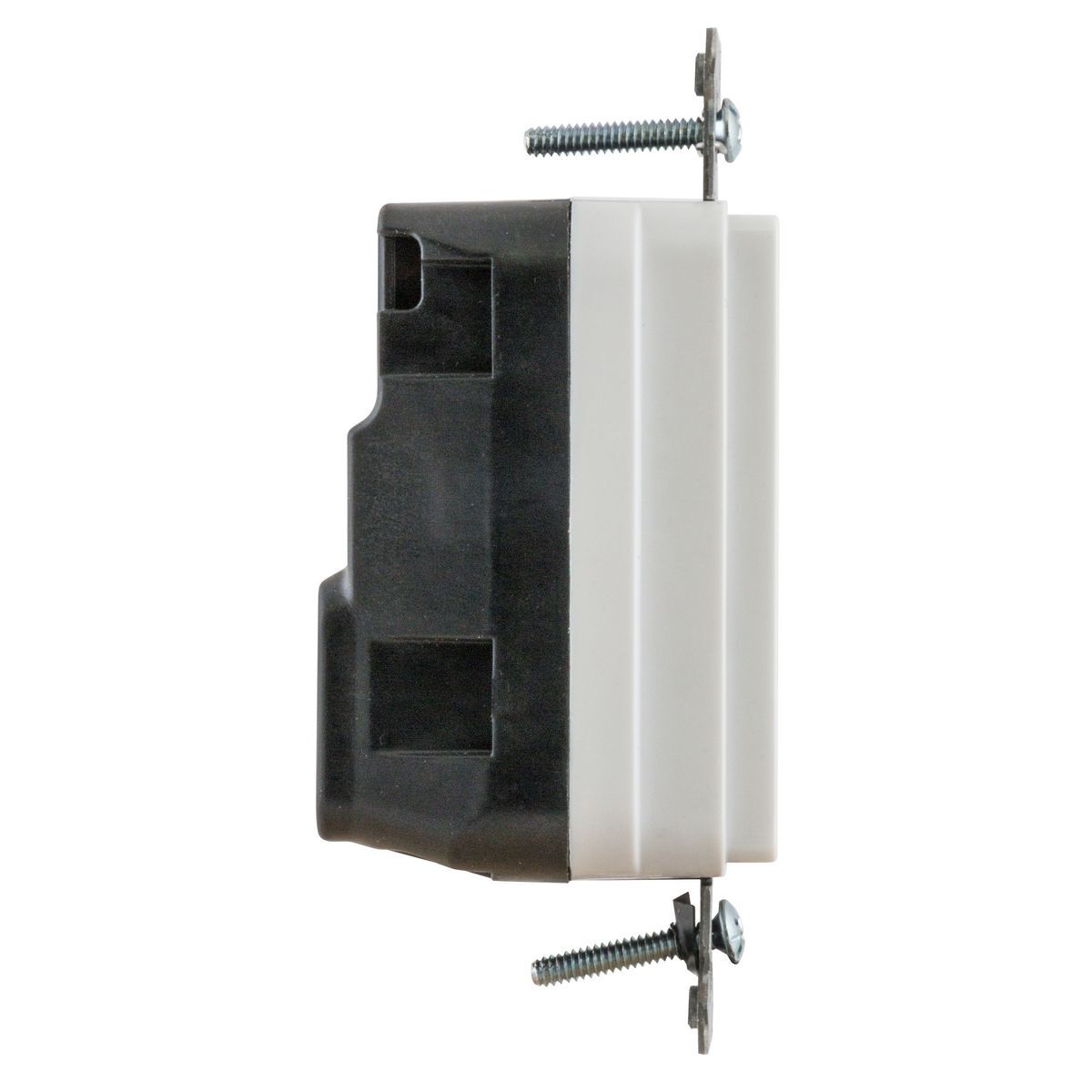

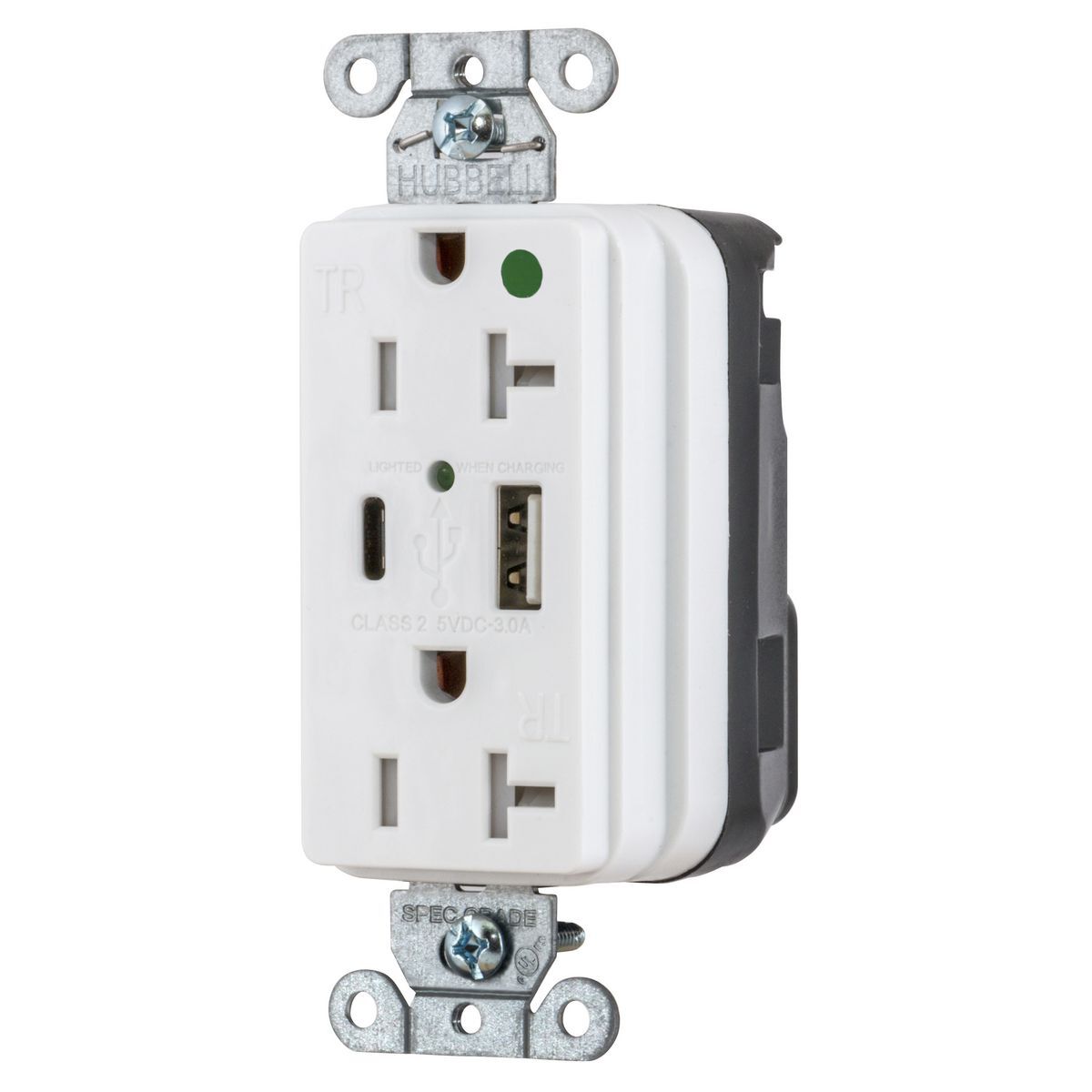

SNAP8300UACW Decorator Duplex Straight Blade USB Charger Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SNAP8300UACW
UPC:
883778308666
Item #:
1223984

Availability

Location Available Qty
Available Available to Order
$80.74 each

SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.

Manuals and Documentation
Catalog Number SNAP8300UACW
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 20
Application Hospital Grade
Color White
Connection Terminal Screws
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire Grounding
Special Features SNAPconnect®, (2) 20A 125 Duplex Ports, (1) Type A, (1) Type C USB, LED Indicator
Standard NEMA, UL, CSA, Fed Spec.
UPC 883778308666
GTIN 00883778308666
Item Type One Type A, One Type-C USB Port
Size Standard Sized Product
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Temperature Rating Maximum continuous 75 Degrees C, minimum -40 Degrees C (w/o impact)
Voltage Rating 125
Wattage 2500 W
Wire Size #14AWG to #10AWG
