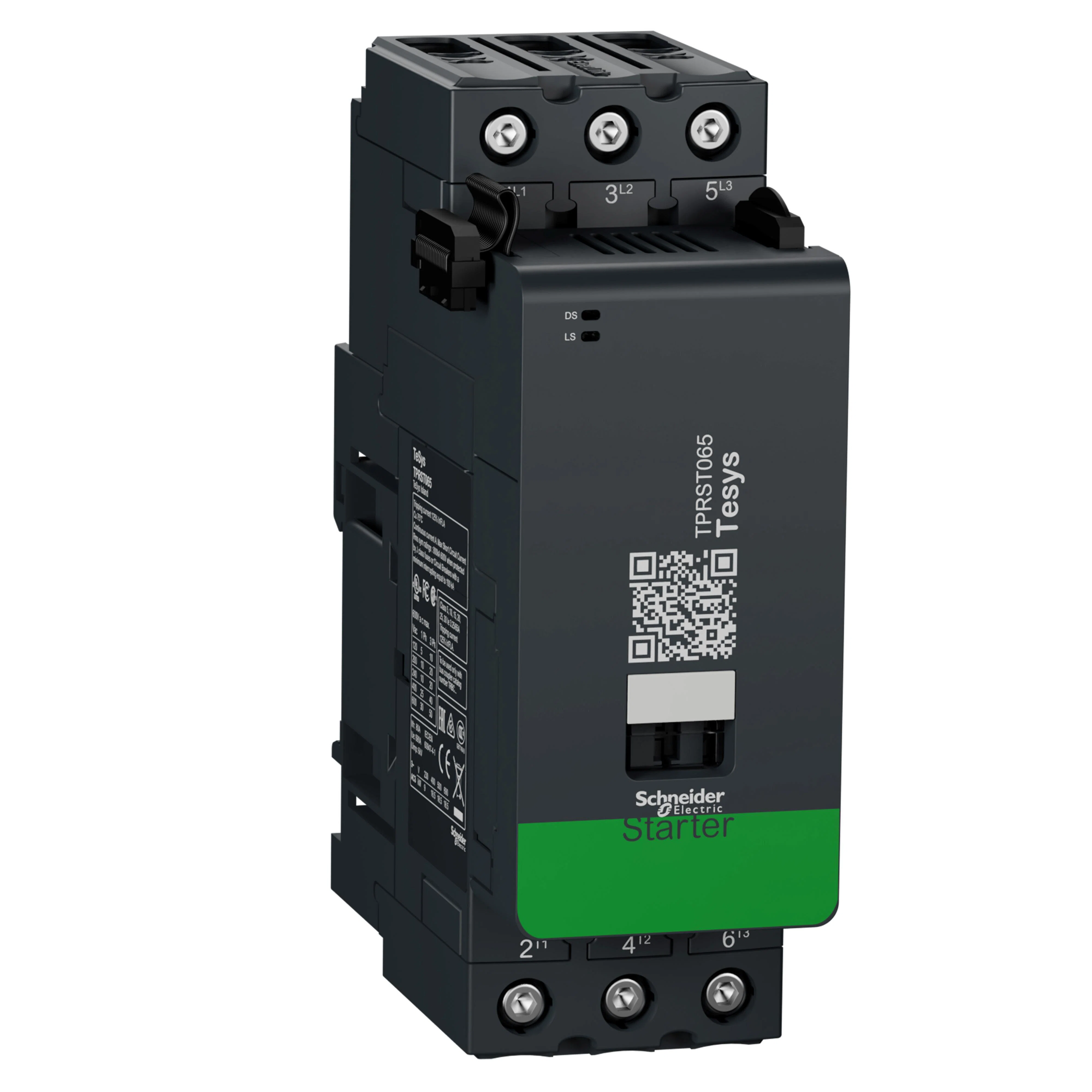

TPRST065 Direct online Motor Starter, 3 Poles, IP20 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- TPRST065
- Item #:
- 1218857
TPRST065 Direct online Motor Starter, 3 Poles, IP20 Enclosure
- MFR #:
- TPRST065
- Item #:
- 1218857
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$997.51
each
TeSys island direct starter, 3 poles, 65A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 65A and motors up to 30kW@400V / 40hp@480V. It provides motor protection functions including thermal overload (setting 3.35-65A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Manuals and Documentation
Features
- Contactless integrated upstream voltage presence detection (no wires)
- Power and energy monitoring when connected with TPRVM voltage module
- Manages motors and other electrical loads up to 65 A (AC-3) / 37 k with 40 hp
- All adjustments and setting are digitized, no mechanical dials or dip switches
- No control wiring necessary, simplifying assembly
| Manufacturer Part Number | TPRST065 |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| EAN | 3606489832773 |
| Country Of Origin | FR |
| Amperage Rating | 80 A |
| Dimensions | 6.57 in H x 2.17 in W x 4.92 in D |
| Enclosure Type | IP20 |
| Type | Direct online |
| Voltage Rating | 690 V AC |
| Alternative Part Number | 15646073 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | EN/IEC 60947-1 | EN/IEC 60947-4-1 | UL 60947-4-1 | CSA C22.2 No 60947-4-1 | CSA | UL | EAC | CCC |
| Application | TPRBC bus coupler, TPRVM voltage interface module |
| Connection Type | Direct |
| Frequency Rating | 50, 60 Hz |
| Load Capacity | 1000 A at 440 V |
| Motor Power | 18.5 to 37 kW |
| Number Of Poles | 3 |
| Overload Relay | Class 5/10/20/30 Adjustable |
| Phase | 3 |
| Reset Type | Remotely/Automatically |
| Setting | 3.35 to 65 A |
| Starting Modes | Direct On-Line |
