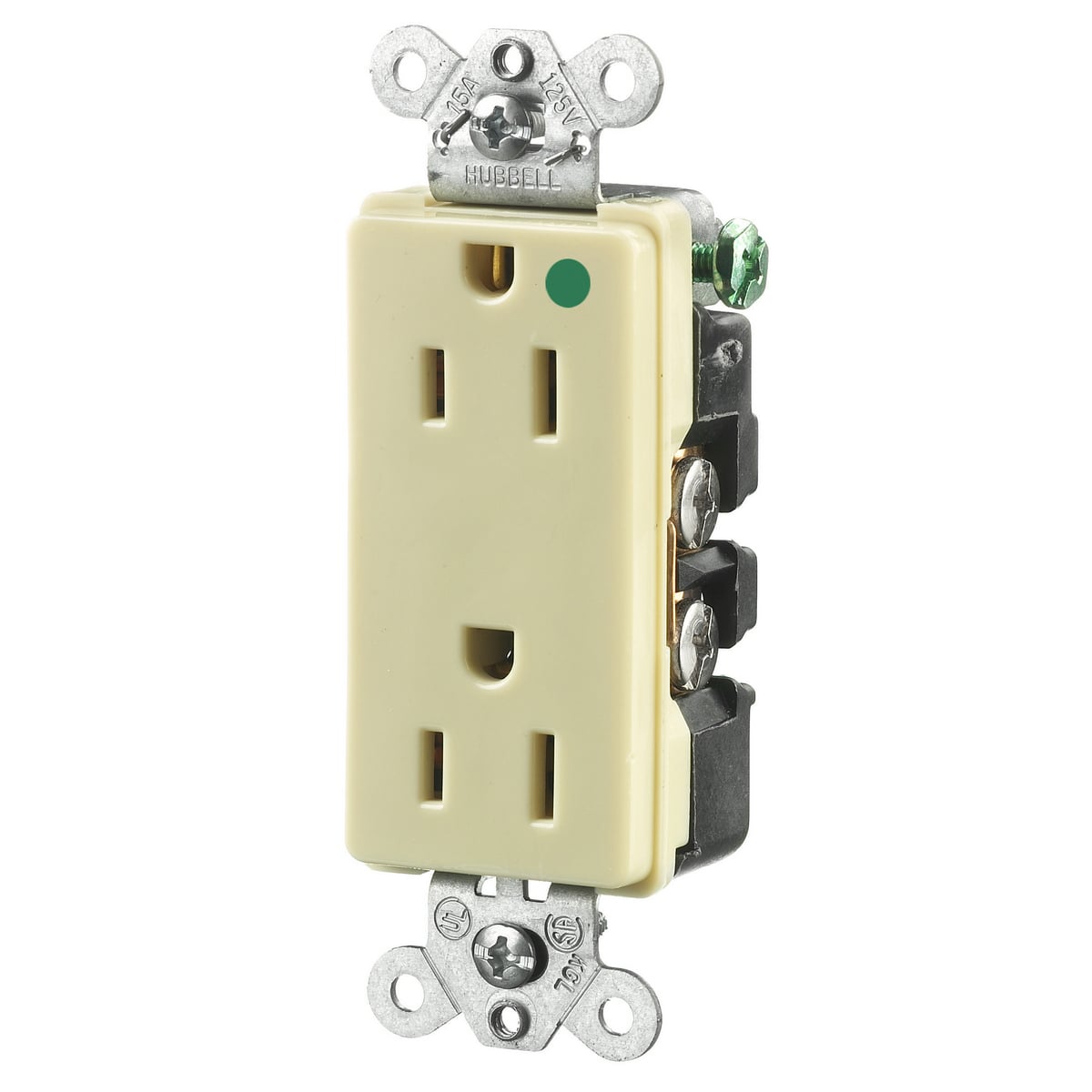

HBL2172I 1-Phase Decorator Duplex Self-Grounding Standard Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2172I
- UPC:
- 783585060583
- Item #:
- 1218825
HBL2172I 1-Phase Decorator Duplex Self-Grounding Standard Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
- MFR #:
- HBL2172I
- UPC:
- 783585060583
- Item #:
- 1218825
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Manuals and Documentation
| Catalog Number | HBL2172I |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 15 |
| Application | Style Line Decorator Hospital Grade |
| Color | Ivory |
| Connection | Back and Side Wired Screw Terminals |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Standard, Self Grounding |
| Standard | CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| UPC | 783585060583 |
| GTIN | 00783585060583 |
| Item Type | Duplex Receptacle |
| Size | 3.28 in x 1.36 in x 1.03 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 125 |
| Wattage | 1,875 W |
| Wire Size | #14 AWG to #10 AWG |
