Appleton

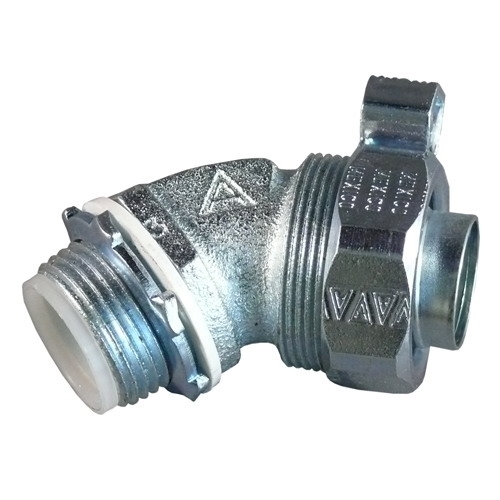

STB-4550L Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 1/2 in Trade, 14 to 4 AWG Cable Openings, 45 deg, Malleable Iron, Triple Coated

MFR:
Appleton Electric
MFR #:
STB-4550L
UPC:
781381403641
Item #:
121751

Availability

Location Available Qty
Available Available to Order
$39.05 each

Appleton STB Series 45 DEG Liquidtight Connector, Size: 1/2 IN, Connection: Threaded X Compression, Conductor Range: 14 - 4 AWG, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 0.63 IN, Standard: Class I, Division 2, UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1, For Liquidtight Flexible Metal Conduit

Manuals and Documentation
Catalog Number STB-4550L
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Liquidtight Flexible Metal Conduit
Conductor Range 14 - 4 AWG
Connection Threaded X Compression
Finish Chromate, Epoxy Powder Coat/Zinc Electroplated
Material Malleable Iron
Special Features Includes insulated throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection; Suitable for outdoor use; Full, machined tapered threads (NPT)
Standard Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1
UPC 781381403641
GTIN 00781381403641
Item Type STB Series 45 DEG Liquidtight Connector
Size 1/2
