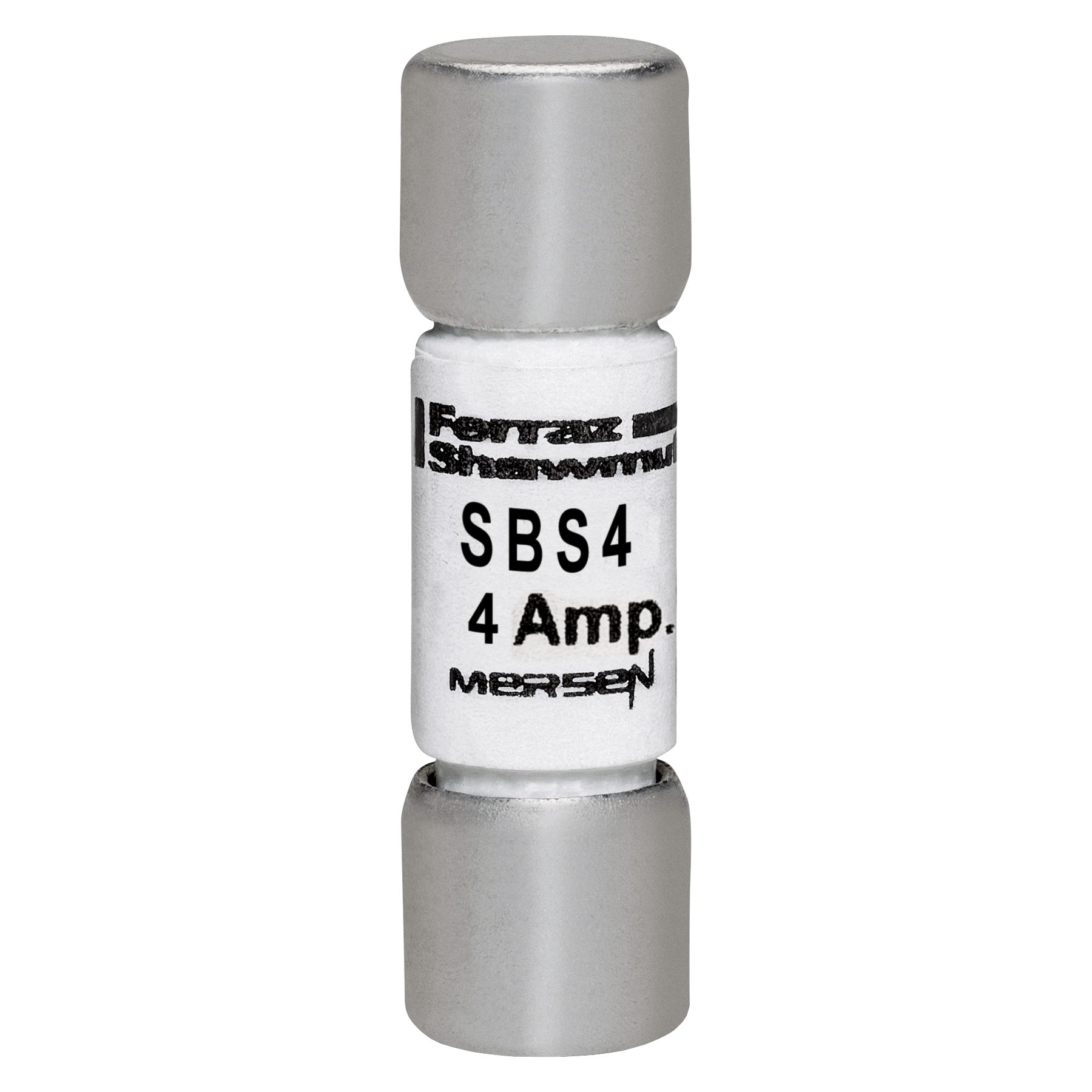

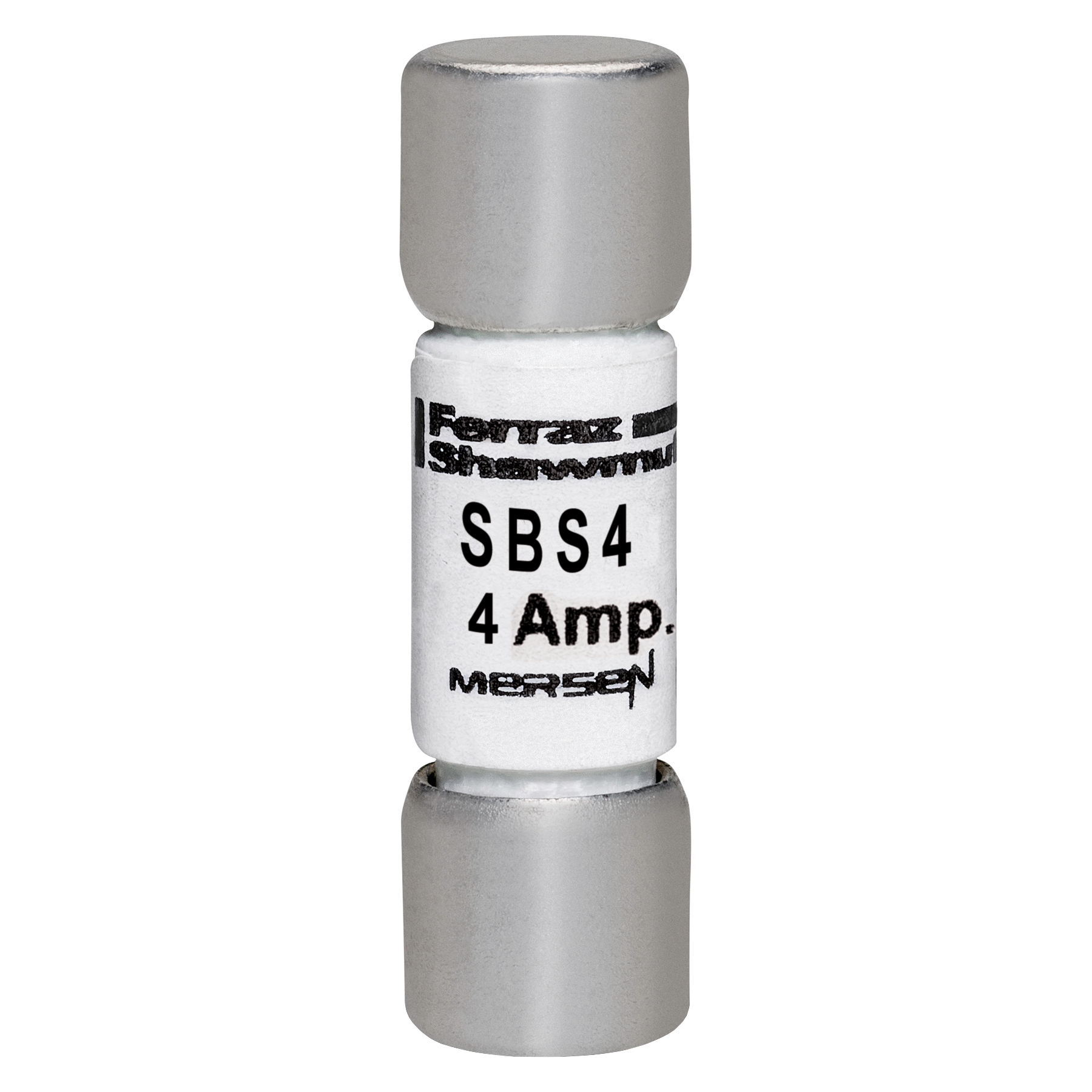

SBS4 Low Voltage Fast Acting Fuse, 4 A, 600 V AC, 100 kA, Class Midget, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- SBS4
- UPC:
- 782001907792
- Item #:
- 1215959
SBS4 Low Voltage Fast Acting Fuse, 4 A, 600 V AC, 100 kA, Class Midget, Cylindrical Body
- MFR #:
- SBS4
- UPC:
- 782001907792
- Item #:
- 1215959
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$34.16
each
Fuse SBS - Midget - Fast-Acting 600VAC 4A Ferrule
Manuals and Documentation
| Catalog Number | SBS4 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 4 |
| Application | Control circuits Lighting ballasts Meter circuits Electronic circuits General purpose protection |
| Connection | Ferrule |
| Interrupt Rating | 100 KA |
| Mounting | Clip |
| Special Features | Small unique physical size for maximum design flexibility and noninterchangeability with other fuse classes Fiberglass body provides dimensional stability in harsh industrial environments Can be used with UltraSafeTM fuse holder 1 3/8" x 13/32" dimensions |
| Standard | UL Listed to standard 248-14 File E33925 CSA Certified to Standard C22.2 No. 248.14 |
| UPC | 782001907792 |
| GTIN | 00782001907792 |
| Item Type | Midget Fuses |
| Size | 1.38 x 0.41 |
| Voltage Rating | 600 |
