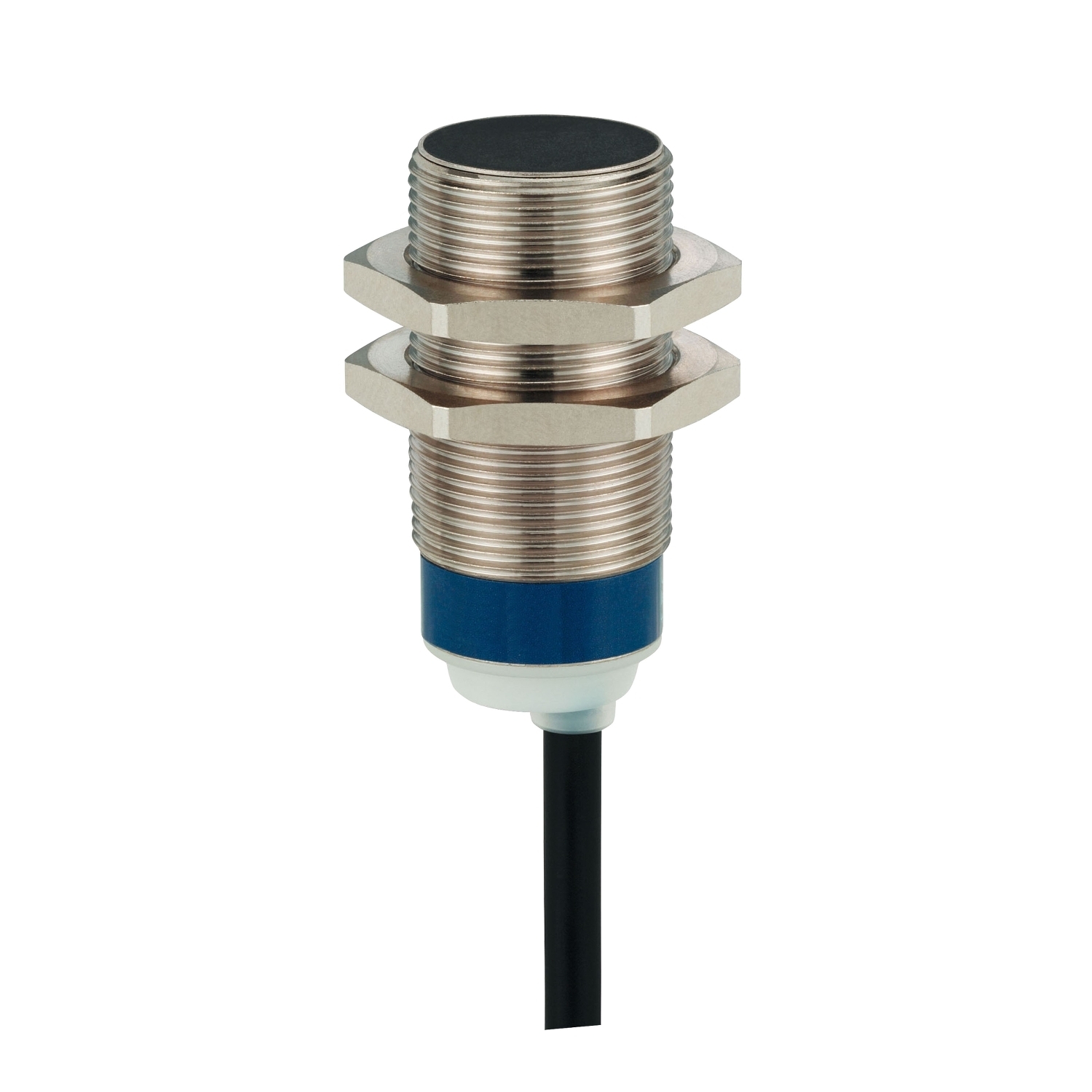

XS518B1PAL5 OsiSense XS5 Series Cylindrical Fixed Form Proximity Sensor, Inductive, PNP/Discrete Output, 1NO Contact, 12 to 24 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS518B1PAL5
- UPC:
- 785901664765
- Item #:
- 1215913
XS518B1PAL5 OsiSense XS5 Series Cylindrical Fixed Form Proximity Sensor, Inductive, PNP/Discrete Output, 1NO Contact, 12 to 24 V DC
- MFR #:
- XS518B1PAL5
- UPC:
- 785901664765
- Item #:
- 1215913
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$126.31
each
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, short case, flush mountable sensor. Diameter 18mm, threaded M18 x 1. It features a nickel plated brass case and a 5m long PvR cable. It has a sensing distance of 5mm. Three-wire, DC supply, 12V to 24V, NO function, PNP discrete output.
Manuals and Documentation
| Catalog Number | XS518B1PAL5 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | - |
| Connector | Cable |
| Control Output | PNP - NO |
| Enclosure | Nickel Plated Brass |
| Indicator | Output state 1 LED yellow) |
| Material | Metal |
| Mounting | Flush |
| Sensing Range | 5 MM,> 0.16...0.31 IN (> 4...8 MM) |
| Sensor | 18 MM,39 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | METAL |
| Standard | IP68 double insulation conforming to IEC 60529;IP69K conforming to DIN 40050;CE |
| Supply Voltage | 12...24 V DC reverse polarity protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=869504&lang=en-us |
| UPC | 785901664765 |
| GTIN | 03389110128673 |
| Item Type | Inductive proximity sensor;Cylindrical M18 |
| Operating Temperature | -25-70 A Degrees C |
| Cross Reference Products | Balluff BES516360B0C05|Balluff BES516367BOC05|Balluff BESM18MIPSC50BB05|Schneider XS1N18PA340L1|Schneider XS3P18PA340L1|Telemecan XS3P18PA340L1|Yamatake FL7M1P5D6L5|Yamatake FL7M2J6HDL5 |
